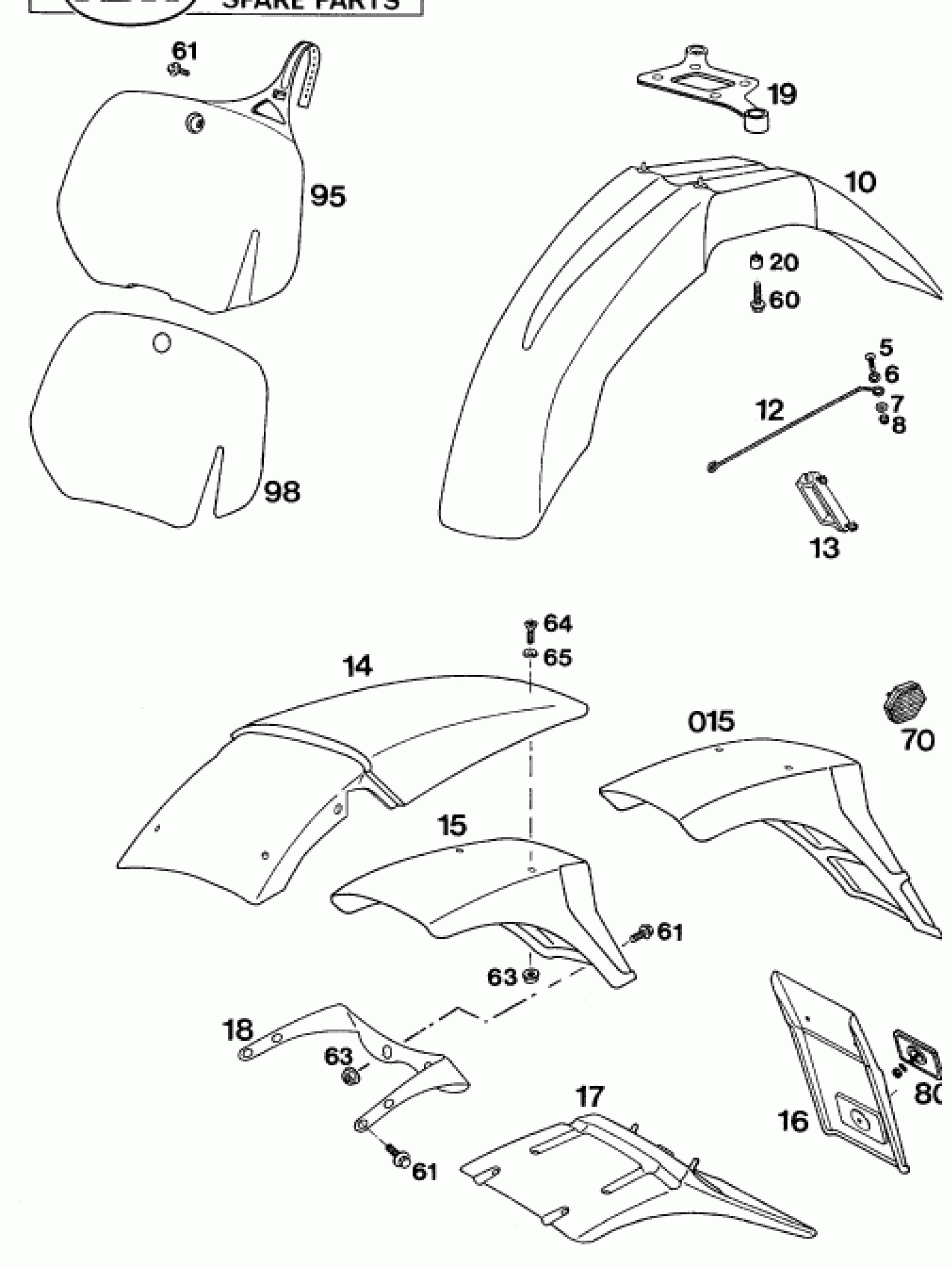

KTM 300 MXC 1994 MASK, FENDERS Diagram

#

Description
Price

5

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

6

WASHER 6MM

40006006000

$1.49

7

washer DIN 9021 A - 5.3

0021050003

$1.49

8

Self locking nut DIN 985 M5

0985050003

$2.05

10

FRONT FENDER WHITE '93

50208410000

$48.48

12

*SPEEDO.CABLE REFU. L=260MM'91

54501092100

Unavailable

13

CABLE GUIDE CPL.

54601093000

$8.93

14

REAR FENDER SX '93

50208414000

$50.95

14

REAR FENDER WHITE EXC '94

50208414100

$55.45

15

% NUMBER PLATE BRKT SHORT '93

50208415000

$93.11

15

NUMBERPLATE BRACKET EGS LONG93

50208415100

$74.87

16

EXTENSION FOR NUMBER PLATE

49008216000

Unavailable

17

NUMBER PLATE CARRIER EXC '93

58308113051

$23.26

18

* NUMBER PLATE BRACKET

54608020000

Unavailable

19

CABLE GUIDE WP/PAIOLI '93

54608019100

$10.09

20

SPACER BUSHING 7X10X7,5

50208020000

$4.11

60

HH COLLAR SCREW M6X20 WS=8

54635039200

Unavailable

61

HH COLLAR SCREW M6X15 WS=8

54635039000

Unavailable

63

SELF LOCKING NUT M6

56509064000

Unavailable

64

FLAT HEAD SCR. DIN7991-M 6X16

0991060163

$2.05

65

WASHER 6MM

40006006000

$1.49

70

REFLECTOR YELLOW CPL.

16512080000

Unavailable

80

51012080000

Unavailable

95

* FRONT NUMBER PLATE '93

50201495000

Unavailable

98

* DECAL SET GREEN NUMBER PLATE

54601499051

Unavailable

98

* DECAL SET YELLOW NUMB.PLATE'

54601499080

Unavailable
