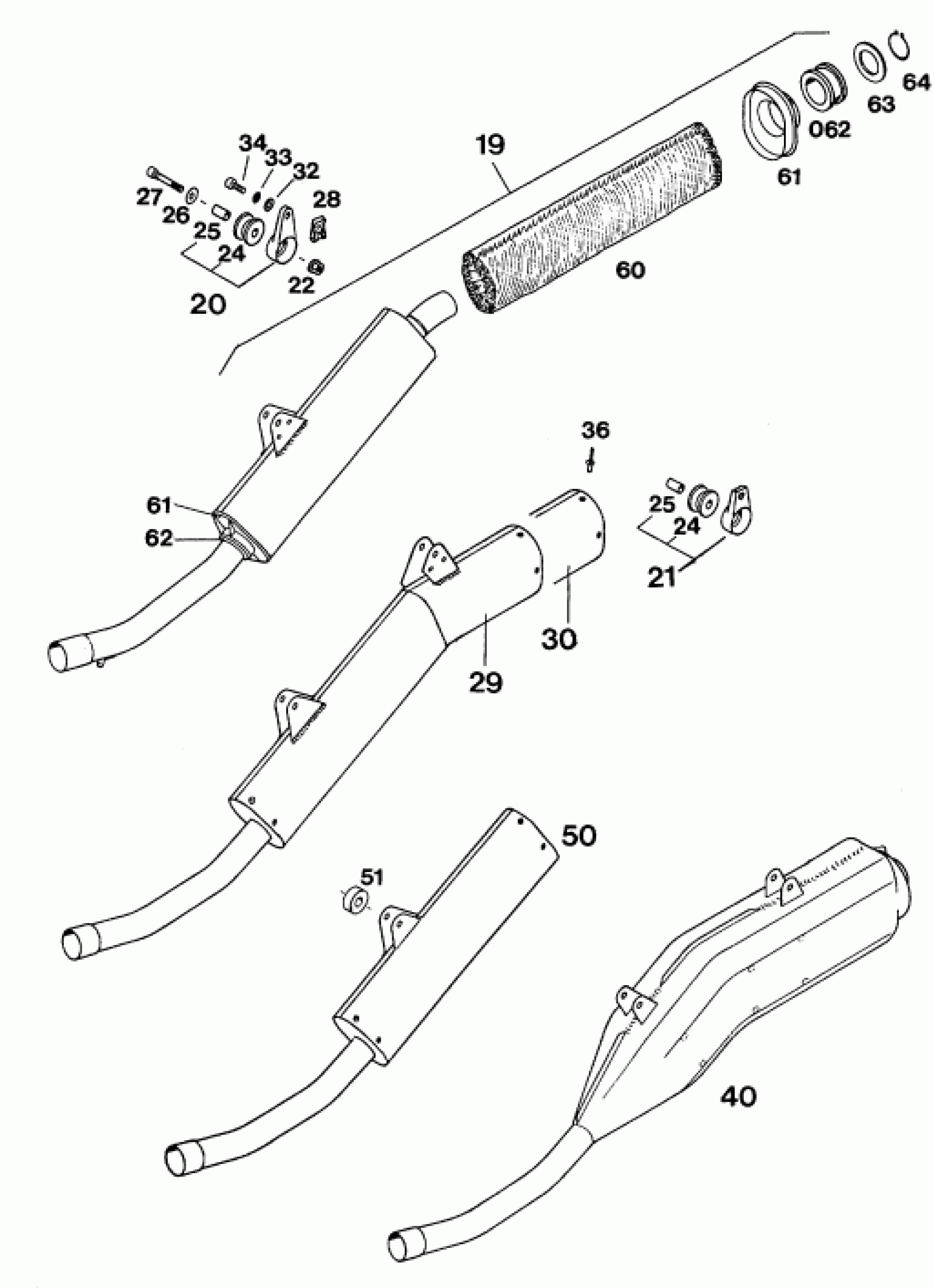

KTM 300 MXC 1994 MAIN SILENCER Diagram

#

Description
Price

0

56505079350

Unavailable

0

* SPARK-ARRESTOR 250/300 EXC U

56505079450

Unavailable

0

* STUFFING YARN LOOSE PER

58005079055

Unavailable

0

STUFFING YARN LOOSE 300 GRAMM

58005079056

Unavailable

19

* MAIN SILENCER 250/300 SX '94

54605079200

Unavailable

20

SIL. BRACKET CPL. LONG SILICON

54305065244

$21.41

21

% SIL.BRACKET CPL. SHORT SILIC

54305065144

Unavailable

22

SELF LOCKING NUT M6

56509064000

Unavailable

24

RUBBER BLACK F.DAMPING BRACKET

54305068000

$5.92

25

BUSHING 7X12X15,4

54305069000

$4.11

26

Washer DIN9021-A 6.4

0021060003

$2.05

27

AH SCREW DIN0912-M 6X30

0912060303

$2.05

28

clip nut M6

54603048100

$4.11

29

MAIN SILENCER EXC SHORT '94

54605279244

Unavailable

30

MAIN SILENCER EXC LONG '94

54605379300

Unavailable

32

WASHER DIN0125-A 6,4

0125060003

$1.49

33

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

$1.49

34

AH SCREW DIN0912-M 6X20

0912060203

$2.05

36

RIVET

0011401001

Unavailable

40

MAIN SILENCER 250/300/360 EGS

54605480200

Unavailable

50

*MAIN SILENCER 300/360 MXC USA

54605179000

Unavailable

51

* SPACER

13004001000

Unavailable

60

% STUFFING YARN 80GR 250 EXC

58005078080

Unavailable

60

STUFFING YARN 160GR 250EXC

58005078160

$24.89

60

58005078180

Unavailable

61

PLASTIC CAP

54605079049

$9.70

62

VITON-RUBBER BUSHING 1-COLLAR

54605079048

$28.00

62

VITON-RUBBER BUSHING 2-COLLAR

54605079148

$31.20

63

WASHER D=28 MM

54605079047

$4.35

64

CIRCLIP DIN0471-28X1,5

0471280150

Unavailable
