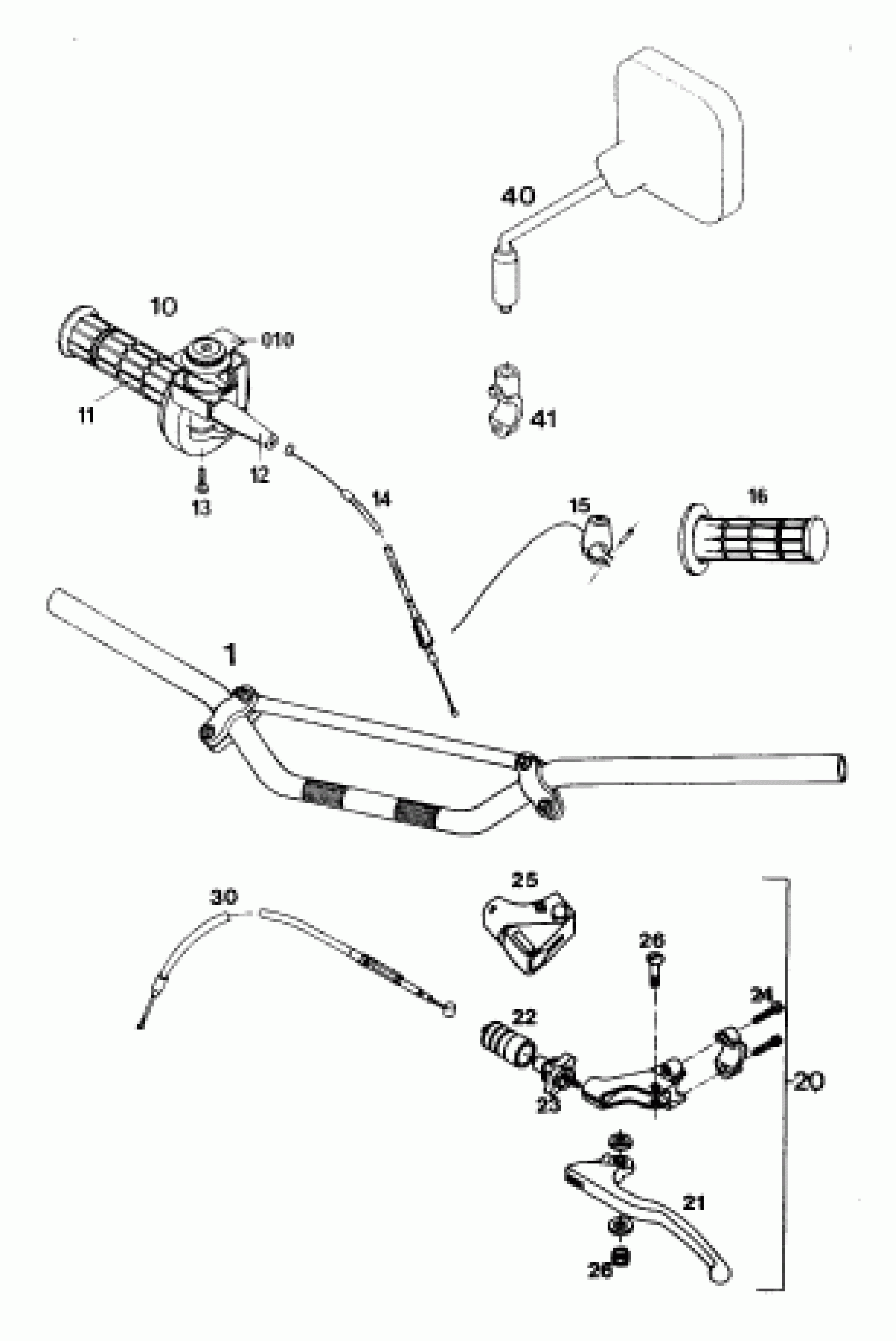

KTM 300 MXC 1994 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

ALU-HANDLEBAR 125-612 CPL '92

56502001144

$80.71

10

THROTTLE GRIP CPL.MAG.312 BL

58002010000

Unavailable

10

* COVER WITH KNURLED SCREW

58002011000

Unavailable

11

TWIST GRIP COVER LONG BLACK

56502003000

$12.04

12

PROTECTION CAP

54002016000

$10.65

13

* CYL.HD SCREW DIN0084-M 5X20A

0084050203

Unavailable

14

*THROT.CABLE 125 MAGURA/VHSB37

50202091500

Unavailable

14

THROT.CABLE 250-360 MAGU/PWK38

54602091000

$23.64

15

SHORT CIRCUIT BUTTON 790 MM

51011198000

$37.58

16

FIXED GRIP MAGURA LONG BLACK

56502052000

$16.72

20

CLUTCH LEVER CPL 250 '94

54602040200

Unavailable

21

CLUTCH LEVER LOOSE

54602055200

$21.86

22

BELLOWS CLUTCH LEVER '91

54602126000

$10.62

23

ADJUSTMENT SCREW CPL.M7

58302043000

$22.06

24

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

25

PROTECTION CAP-CLUTCH LEVER

54602026200

$11.22

26

LEVER SCREW CPL.

54602028200

$2.60

30

CLUTCH CABLE 125/LC4 TSK '

50202090200

Unavailable

30

CLUTCH CABLE 250-380 TSK '94

54602090200

$50.01

30

* CLUTCH CABLE 440-550 TSK '94

56502090100

Unavailable

40

Rear view mirror left

58012040000

$36.18

40

Rear view mirror right

58012140000

Unavailable

41

CLAMP MIRROW M10x1,25

58302044000

$13.36
