FRONT FORK DISASSEMBLED

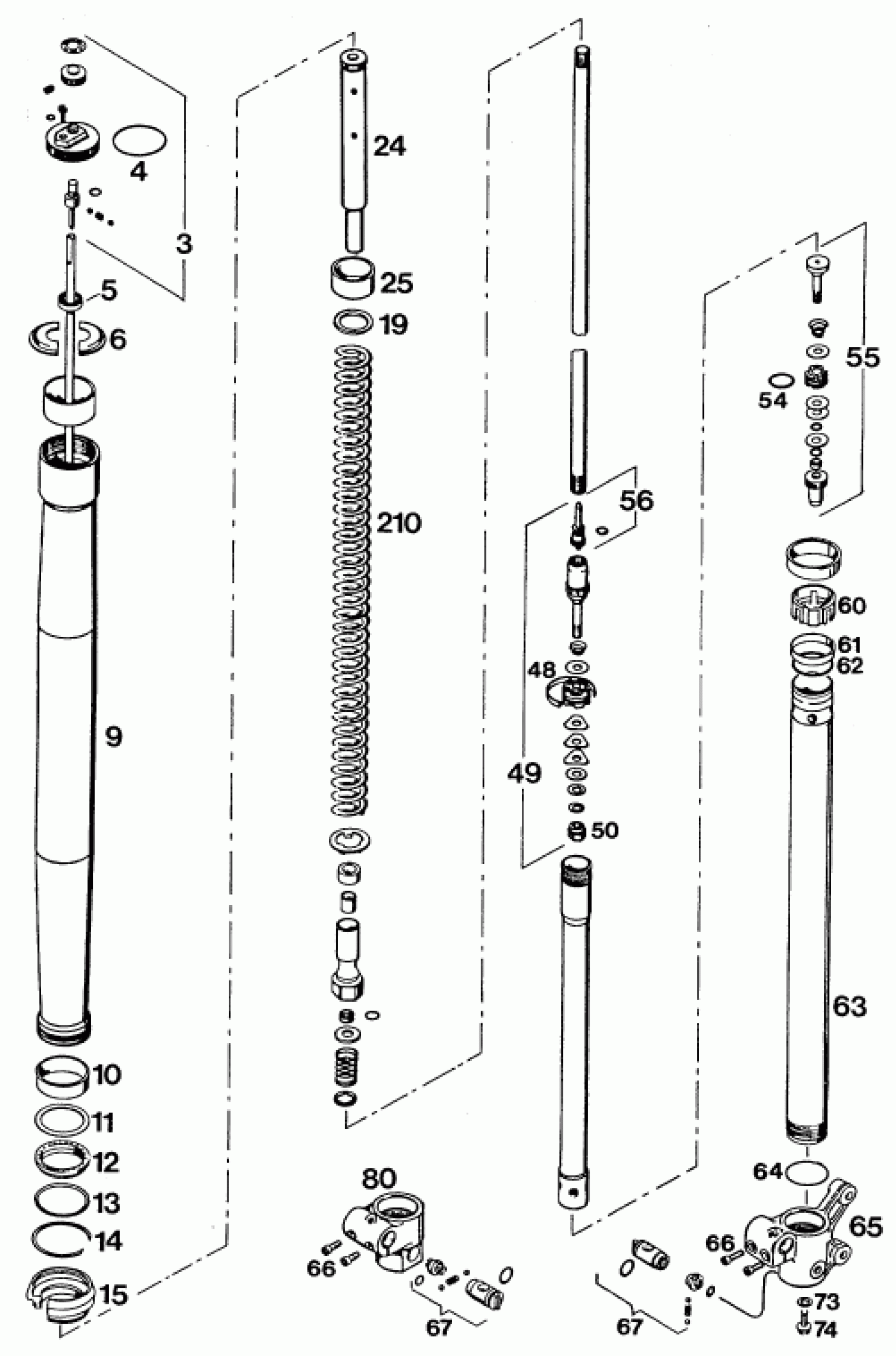

KTM 300 MXC 1994 FRONT FORK DISASSEMBLED Diagram
#
3
SCREW CAP CPL.IBS '94
57601036044
Unavailable
4
O-RING 43,00X3,00
0770430030
Unavailable
5
* RUBBER GASKET 14,1X22X4
54501051000
Unavailable
6
% KEY HALF
54501050000
Unavailable
9
* OUTER TUBE L=606MM '
57601004000
Unavailable
10
GUIDE BUSHING 40 X 44 X 20-1
57501026000
Unavailable
11
RING 42X49,2X1,5
56401027000
Unavailable
12
SHAFT SEAL RING 40X49,5X9LF
58001805000
Unavailable
13
RING 49,5X45X1
56401127000
Unavailable
14
SEEGER LOCK RING SB50
56401029000
Unavailable
15
DUST BELLOWS D40 '
56401025100
Unavailable
19
WASHER 24,5X34X2
54501019000
Unavailable
24
HYDROSTOP CPL IBS L=227,5 MM
56501457244
Unavailable
25
* PRELOAD BUSHING 25X34X5
56401022000
Unavailable
25
% PRELOAD BUSHING 25X34X10
56401022100
Unavailable
25
* PRELOAD BUSHING 25X34X2,5
56401022200
Unavailable
48
* PISTON RING 4X1X62
54501070000
Unavailable
49
REBOUND DAMPING CPL. IBS'94
57601071044
Unavailable
50
* HEX.NUT M6X0,5
54501072000
Unavailable
54
O-RING 15,60X1,78
0770020160
Unavailable
55
* COMPRESSION DAMPING CPL
54601476744
Unavailable
55
* COMPRESSION DAMPING CPL
54601476944
Unavailable
55
* COMPRESSION DAMPING CPL.IBS'
57601076044
Unavailable
56
* ADJUSTMENT SCREW CPL IBS '93
56501467244
Unavailable
60
BUSHING
54501077000
Unavailable
61
BEARING RING 42,8X8
54501045300
Unavailable
62
% RING 39X42X1
54501046000
Unavailable
63
% INNER TUBE L=625MM "0618Q712
54501003300
Unavailable
64
O-RING 38,00X2,00 NBR 70 SH
0770380020
$3.08
65
% FORK LEG AX.PASSAG. D17 BREM
54501206100
Unavailable
66
HH COLLAR SCREW M 7X25 WS=8
0015070253
$2.73
67
% ADJUSTMENT SCREW COMP.DAMPIN
54501078144
Unavailable
73
SEAL RING 8X12X1,5
54501081000
Unavailable
74
COLLAR SCREW M8X20
54501082000
Unavailable
80
% AXLE CLAMP R/S '94
57601106000
Unavailable
210
* SPRING 530 MM 3,8 KG
54501021380
Unavailable
210
* SPRING 530 MM / 4,0 KG
54501021405
Unavailable
210
* SPRING 543 MM / 4,2 KG
54501021420
Unavailable
210
SPRING 530 MM / 4,4 KG
54501021440
Unavailable
210
* SPRING 530 MM / 4,6 KG
54501021460
Unavailable
