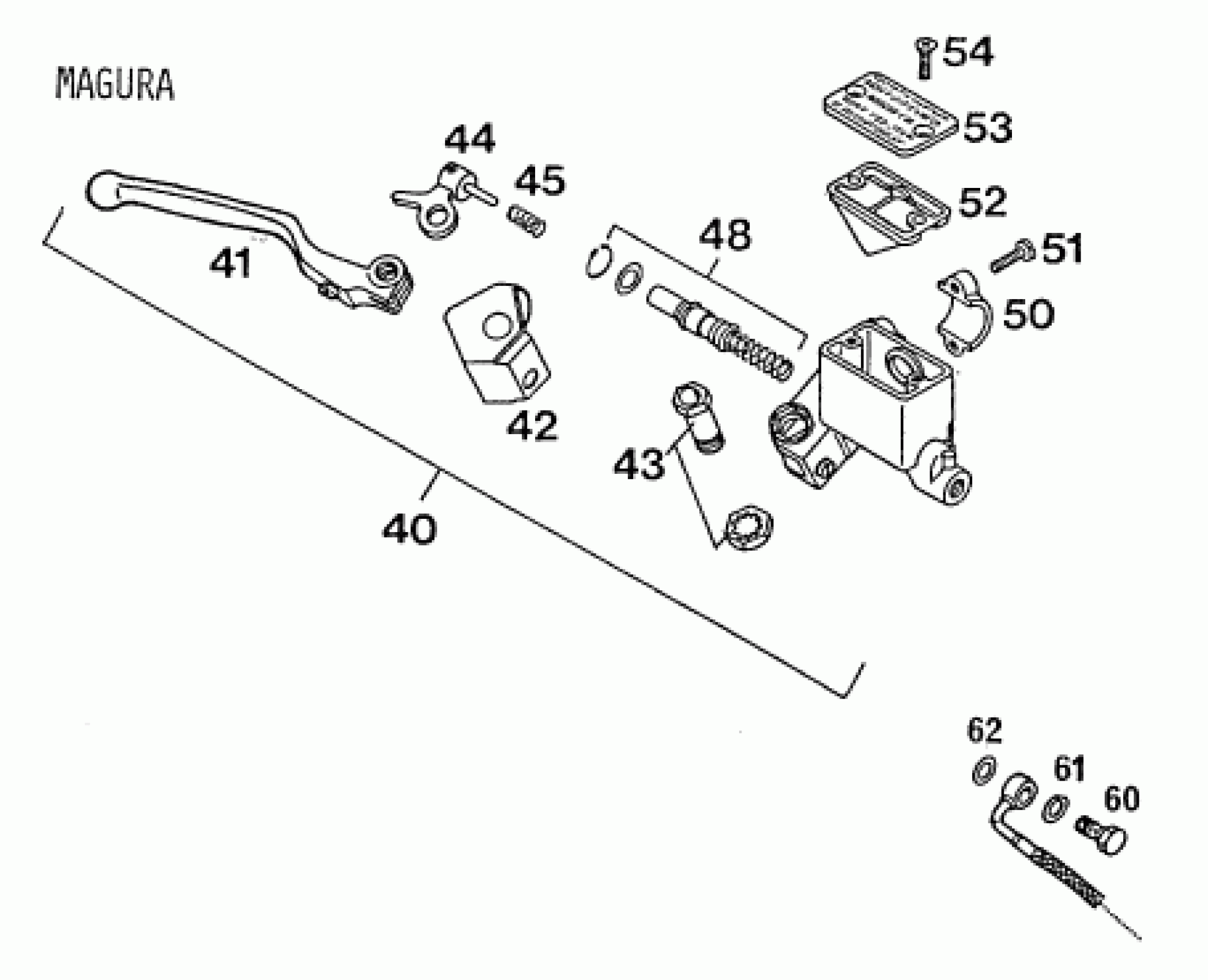

KTM 300 MXC 1994 FRONT BRAKE CONTROL Diagram

HAND BRAKE CYLINDER 11,0 '92

56513001744

$168.37

BRAKE LEVER 320730 '92

56513020700

$59.06

* PROTECTION CAP

56513026500

Unavailable

LEVER SCREW CPL.

56513015500

$14.89

BOLT CPL.

56513051500

$31.50

SPRING

56513052500

$1.49

* PISTON CPL.11,0MM

56513050500

Unavailable

CLAMP

56513011500

$11.24

CYL.HEAD SCREW DIN0084-M 6X20A

0084060203

Unavailable

* RUBBER BELLOWS

56513009500

Unavailable

COVER

56513012500

Unavailable

FLAT HEAD SCREW DIN0965-M 5X16

0965050163

$2.05

HOLLOW SCREW M10X1X19

50213025000

$6.54

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

CU-SEAL RING DIN7603-10X16X1,5

42013026000

$2.05
