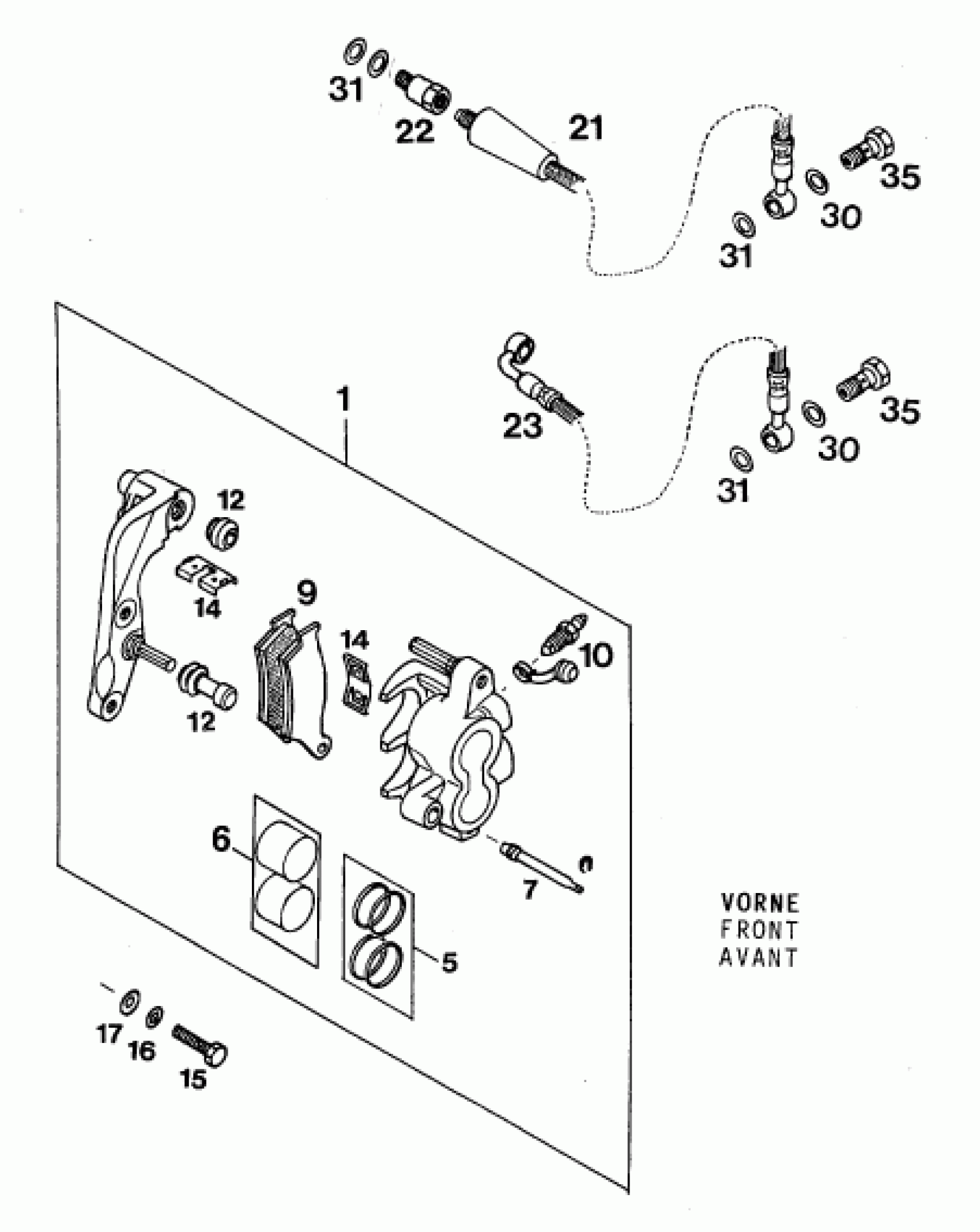

KTM 300 MXC 1994 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

FRO.BRAKE CALIPER CPL. 2PISTON

54613201044

$219.44

5

REPAIR KIT 28MM

54613205000

$20.19

6

REPAIR KIT PISTON 28MM

54613206000

$46.18

7

BOLT 6X45

54613210000

Unavailable

8

RETAINING PLATE SET BREMBO

54613212000

$21.50

9

BRAKE PAD SET FR. FERODID450

54613209044

$35.52

9

* BRAKE PAD SET SINTER

54613209144

Unavailable

10

BLEEDER SCREW M10X1

54513214000

$7.38

12

CUP SET SHORT

54613218000

$23.55

15

HH SCREW DIN0933-M 8X30

0933080303

$2.05

16

TOOTHLOCK WASHER DIN6797-J 8,4

0797080003

$1.49

17

washer DIN 125 A -8.4

0125080003

$1.49

21

BRAKE HOSE 1470 MM WP

50213029400

Unavailable

23

BRAKE HOSE 1565 MM WP '95

50213029300

Unavailable

30

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

31

CU-SEAL RING DIN7603-10X16X1,5

42013026000

$2.05

35

HOLLOW SCREW M10X1X19

50213025000

$6.54
