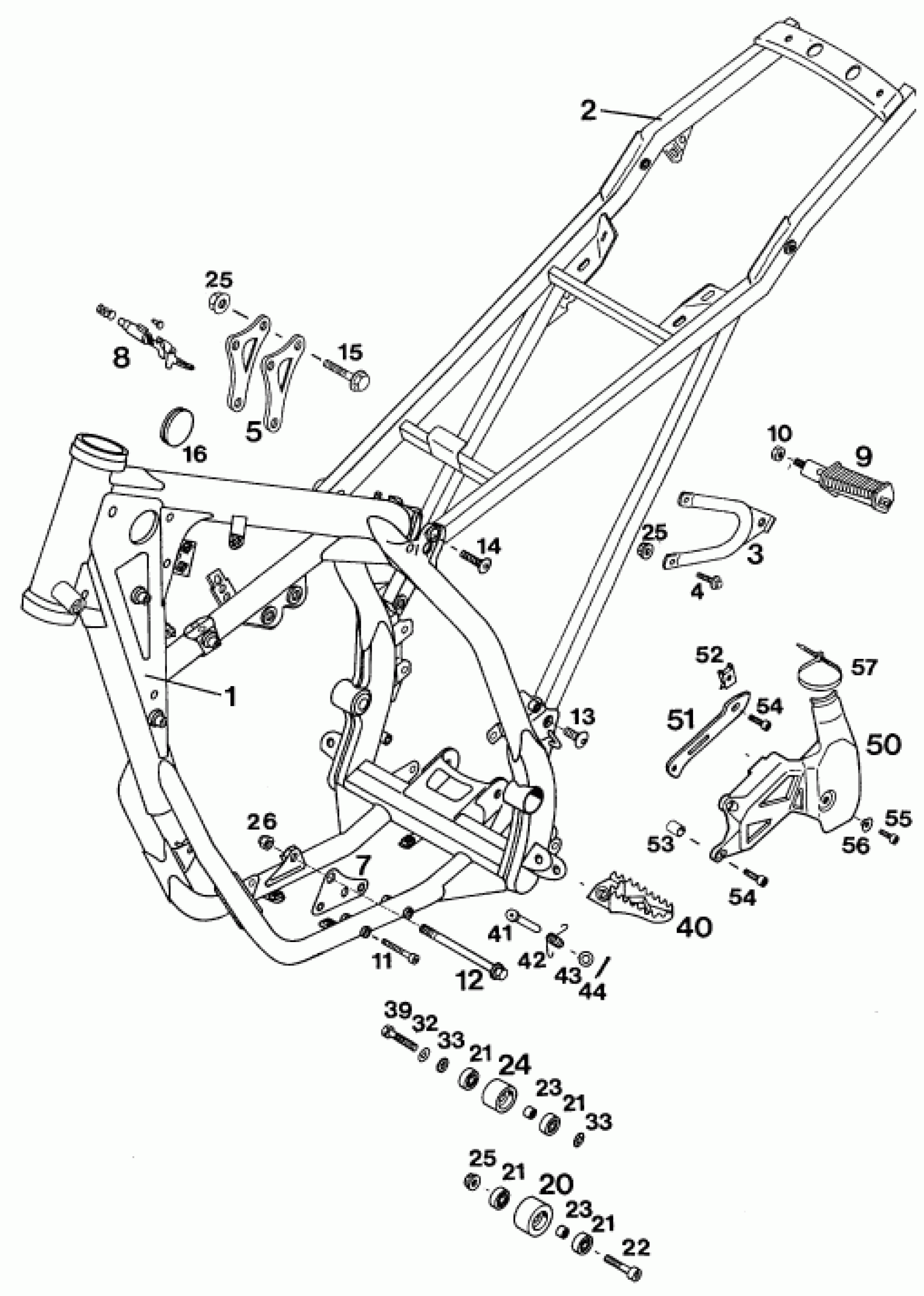

KTM 300 MXC 1994 FRAME Diagram
#
0
FOOTREST REAR R/S CPL.
49003350000
Unavailable
0
FOOTREST R/S '93
5460314000019
Unavailable
0
*FOOT REST BRACKET REAR R/S 93
58303103000
Unavailable
1
* FRAME 250/300 SX USA '94
54603101500
Unavailable
1
FRAME SX,MXC,EXC,EGS '94
54603401500
Unavailable
2
* SUBFRAME ALU MX,EXC,EGS '94
54603002100
Unavailable
2
% SUBFRAME STEEL '94
54603202100
Unavailable
2
% SUBFRAME STEEL '94
54603402000
Unavailable
3
FOOTREST BRACKET REAR L/S
58303003000
$46.18
4
HH COLLAR SCREW M 8X16 WS=10
0015080163
$4.11
5
* ENGINE BRACE 250/300/360 '94
54603045100
Unavailable
7
ENGINE MOUNTING 250/300 '90
54603055000
$12.19
8
STEERING HEAD LOCK
44003007000
Unavailable
9
FOOTREST REAR L/S CPL.
49003250000
$26.14
10
HEXAGON NUT DIN0934-M10
0934100003
$1.49
11
HH COLLAR SCREW M 6X40 WS=8
0015060403
$3.08
11
AH SCREW DIN0912-M 6X40
0912060403
Unavailable
12
engine brac.scr. M10x105 WS13
54603013000
$12.15
13
SPROCKET SCREW-AH M8X20 WS=6
54610052000
$2.05
14
SPROCKET SCREW-AH M 8X26
54510052000
Unavailable
15
HH COLLAR SCREW M 8X44 WS13
56530079000
$3.08
16
PLUG 37MM
54606004000
$2.05
20
CHAIN ROLL D=35MM
50203053100
Unavailable
21
Grooved ball bearing 608 2RS C
0625006087
$21.40
22
HH COLLAR SCREW M 8X35 WS=10
0015080353
$4.11
22
AH SCREW DIN0912-M 8X35
0912080353
Unavailable
23
BUSHING 8.2 X 12 X 6
74003021000
$3.08
24
CHAIN ROLL D=30MM
50203053000
$6.72
25
54310086000
Unavailable
26
SELF LOCKING NUT M10 CU WS=14
54310086100
$2.05
32
WINDOW PANE 8,4X14X1MM
50203028000
$1.49
33
LOCK WASHER 8MM
36003014000
$2.05
39
HH COLLAR SCREW M 8X35 WS=10
0015080353
$4.11
39
HH SCREW DIN933 M8x35
0933080353
Unavailable
40
FOOT REST L/S '93
5460304000019
$30.30
41
BOLT FOR FOOTREST 9,8 X 50
54603044000
$12.43
42
FOOTREST SPRING L/S & R/S
54603041000
$5.23
43
washer DIN 125 A 10.5
0125100003
$2.05
44
PIN DIN0094-3,2X25 STEEL
0094032253
$1.49
50
SPROCKET COVER
54607061000
$13.94
51
CHAIN SLIDING PLATE 14 T/15 T
54630061000
$15.26
52
clip nut M6
54603048100
$4.11
53
BUSHING 6,5X8X11
54613038150
$4.11
54
HH COLLAR SCREW M 6X20 WS=8
0015060203
$3.08
54
AH SCREW DIN0912-M 6X20
0912060203
Unavailable
55
AH SCREW DIN0912-M 5X20
0912050203
Unavailable
55
HH SCREW DIN933 M5x20
0933050203
$1.49
56
COLLAR BUSHING 5 X 10 X 6 ALU
54603073000
$1.96
57
Cable tie 200/4.6mm black
44011076200
$1.49
