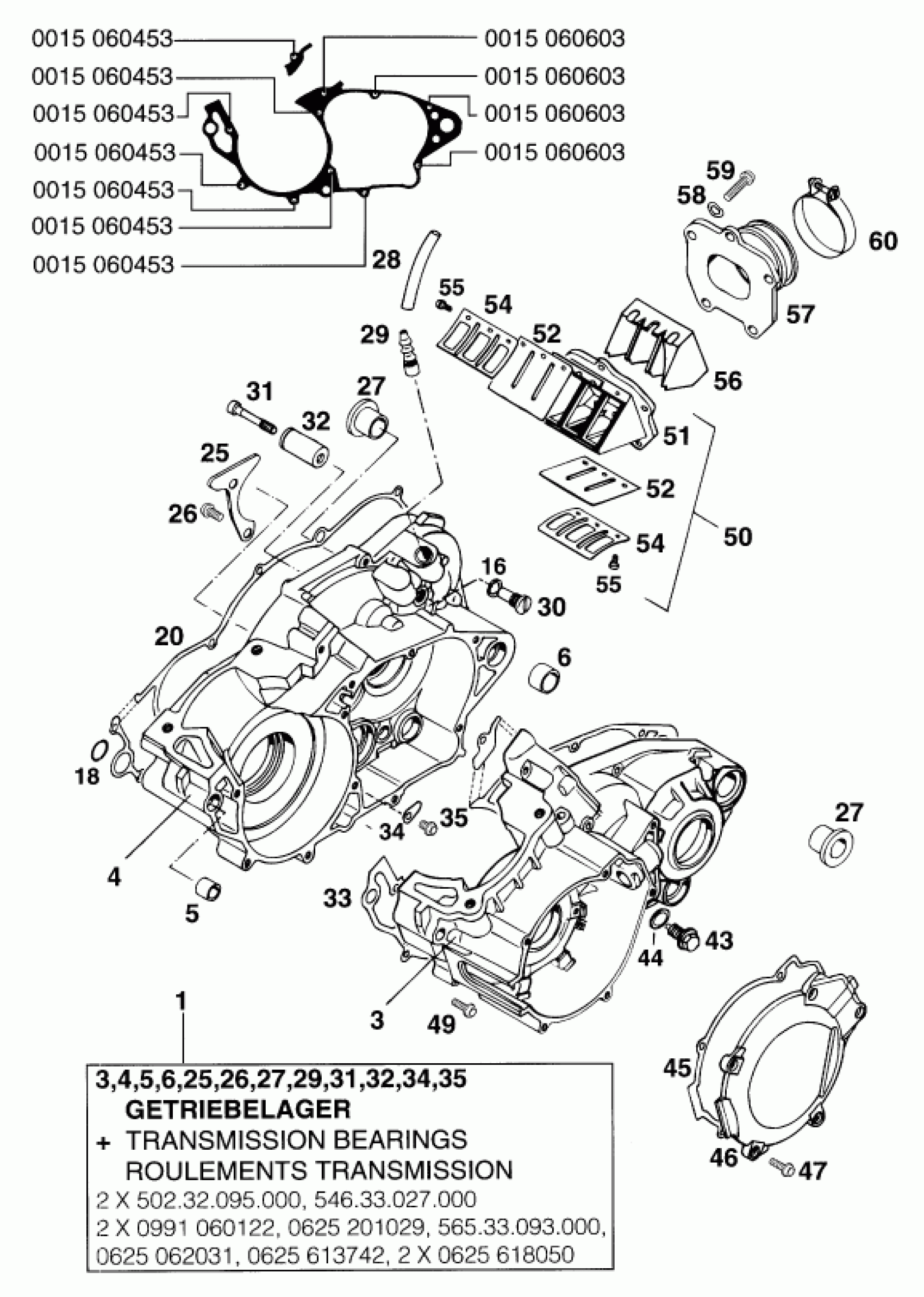

KTM 300 MXC 1994 ENGINE CASE Diagram

#

Description
Price

0

GASKET SET 250-380 '90-'98

54630100000

$178.47

1

% ENGINE CASE CPL.'94

54630000644

Unavailable

5

DOWEL BUSHING 13,8X11X12

54630027000

$6.91

6

DOWEL 19 X15,1X12

50130027000

$5.30

16

CU-SEAL RING 9 X 13 X1

58038032110

$1.73

18

O-RING 14,00X2,00

0770140200

$2.05

20

CLUTCH COVER GASKET 0,5

54630025000

Unavailable

25

RETAINING PLATE

54630017000

$9.79

26

AH SCREW DIN0912-M 6X12

0912060123

$3.08

27

CRANK CASE BUSH

50130010000

$21.78

28

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

29

BLEEDER FLANGE '94

54630022000

$3.73

30

FLAT HEAD SCREW WITH PIN

54530001150

$5.29

31

CYL. HEAD BOLT M 7X40 WS=10

50030079000

$9.90

32

BUSHING PIN

54633018400

$21.87

33

ENGINE CASE GASKET

54630039000

Unavailable

34

RETAINING PLATE

54634049000

$4.11

35

AH SCREW DIN0912-M 6X10

0912060103

$1.49

43

OILDRAIN PLUG W.MAG. M 12X1,5

58030021000

$11.30

44

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

45

IGNITION COVER GASKET '92

54630040300

$13.36

46

IGNITION COVER

54630002100

Unavailable

47

AH SCREW DIN0912-M 5X12

0912050123

$2.05

49

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

49

HH COLLAR SCREW M 6X60 WS=8

0015060603

$3.08

50

% REED VALVE HOUSING 250'93

54630051044

Unavailable

50

REED VALVE HOUSING 300CC CPL

54630351044

Unavailable

51

* REED VALVE CASE LOOSE

54430051000

Unavailable

52

REED VALVE CARBON 125

50230052000

$27.22

52

REED VALVE 250 '93

54630052000

$25.22

54

STOP PLATE TOP

54630053000

$7.63

55

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

56

VELOCITY INSERT

54630054000

Unavailable

57

INTAKE FLANGE 200-380

54630050000

$63.10

58

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

59

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

59

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

60

Hose clip GEMI 52mm

54330061000

$7.47
