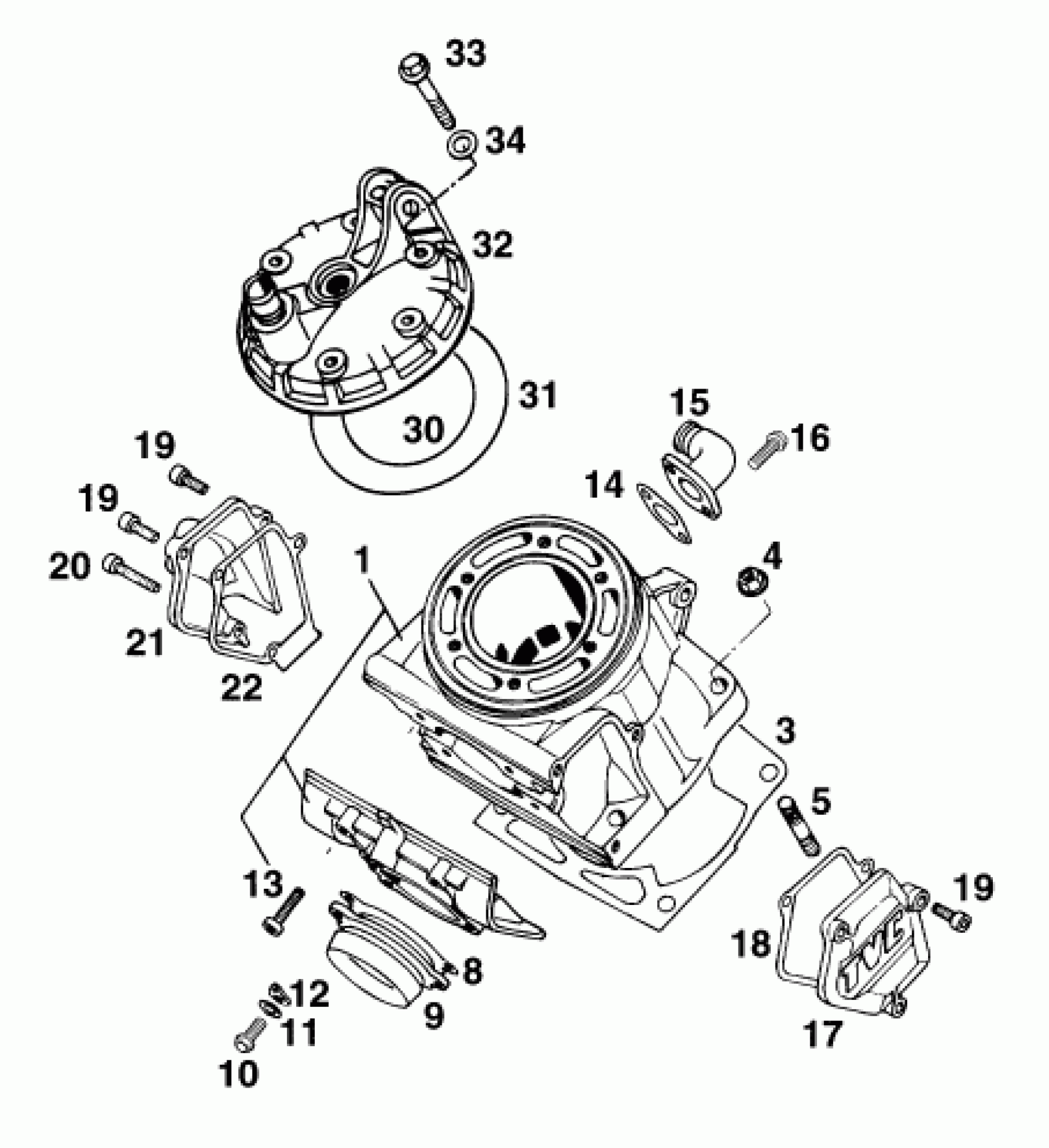

KTM 300 MXC 1994 CYLINDER Diagram

#

Description
Price

1

CYLINDER CPL.WITH FLANGE '93

54630005444

$456.43

1

CYLINDER CPL.W.FLANGE 300CC'93

54630305444

$940.62

3

CYLINDER BASE GASKET 0,30MM

54630030003

Unavailable

3

CYLINDER BASE GASKET 0,50MM

54630030005

Unavailable

3

CYLINDER BASE GASKET 1MM OILIT

54630030010

Unavailable

4

COLLAR NUT M10 WS=13

54630044000

$1.49

5

STUD DIN0835-M10X35

0835100351

$5.23

8

EXHAUST FLANGE GASKET

54630046000

$10.09

9

EXHAUST FLANGE

54605073000

$48.03

10

AH SCREW DIN0912-M 6X16

0912060163

$1.49

11

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

12

RETAINING PLATE

51005074000

$3.08

13

AH SCREW DIN0912-M 6X30

0912060303

$2.05

14

GASKET

54435037000

$1.65

15

CONNECTING TUBE 125/IV

50235006000

$30.74

16

AH SCREW DIN0912-M 6X20

0912060203

$2.05

17

CONTROL COVER L/S

54637105000

$20.07

18

GASKET FOR SIDE COVER

54637106000

$5.23

19

AH SCREW DIN0912-M 5X12

0912050123

$2.05

20

AH SCREW DIN0912-M 5X30

0912050303

$1.49

21

CONTROL COVER R/S

54637005000

$20.78

22

GASKET FOR CONTROL COVER

54637006100

$7.28

30

0-RING 74,00X2,00 SILICONE

0770740021

$5.32

30

0-RING 78,00X2,00 SILICON

0770780021

Unavailable

31

O-RING 114,00X2,00 SILICONE

0770114020

$7.56

32

CYLINDER HEAD 250 '94

54630006400

Unavailable

32

CYLINDER HEAD 300 '94

54630306400

Unavailable

33

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

34

CU-SEAL RING 8 X 16 X 1

56530080000

$2.05

37

AH collar screw DIN 912 M6x8

0912060083

$2.05

38

CU-SEAL RING 6 X 10 X 1

58036065000

Unavailable
