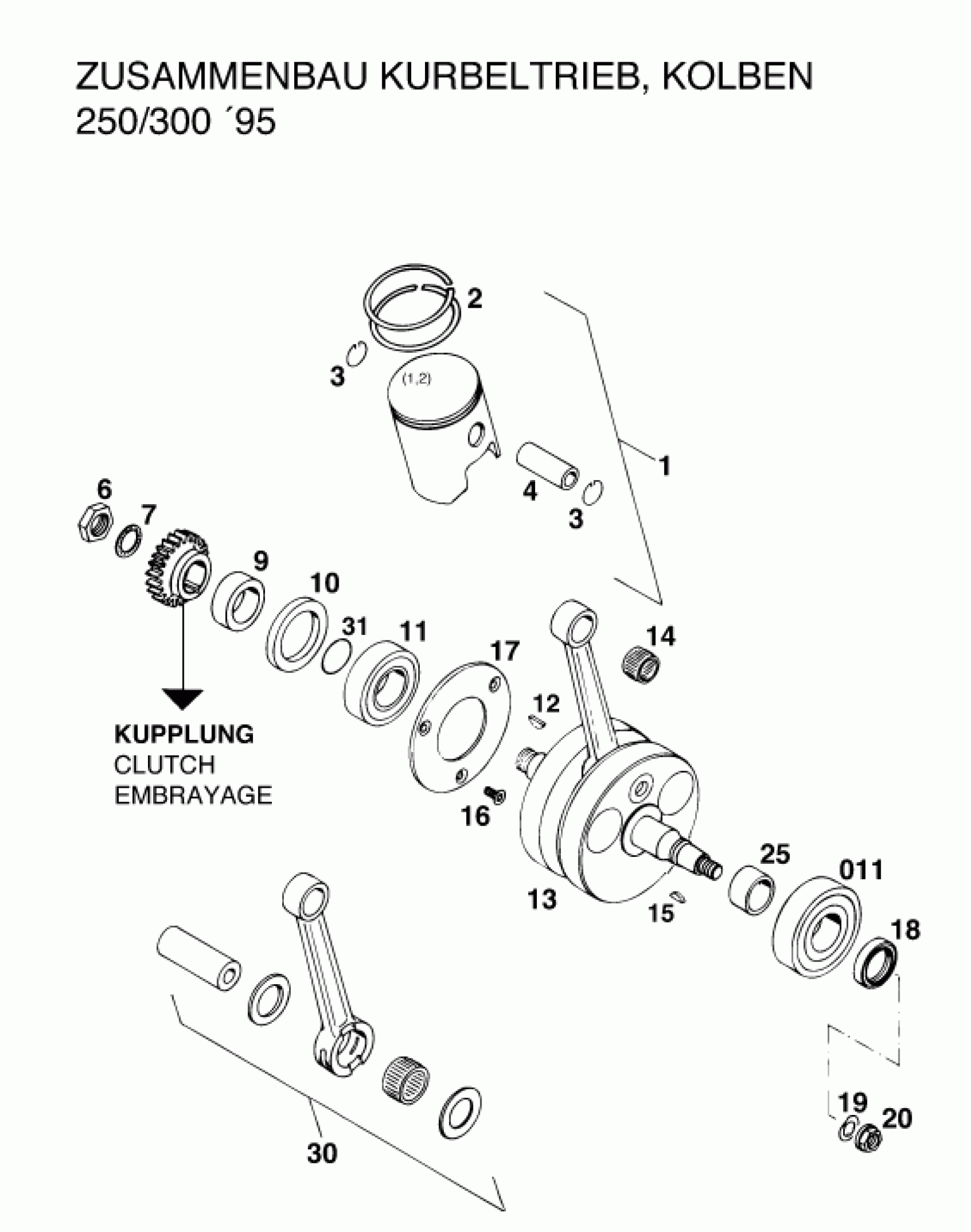

KTM 300 MXC 1994 CRANKSHAFT, PISTON Diagram

#

Description
Price

2

SQUARE RING 67,5X1 250 CC

54630032000

$44.56

2

SQUARE RING 72,0X1,25 300 CC

54630332000

$34.35

3

WIRE LOCK RING SKA 18

54330074000

$9.72

4

PISTON PIN 18 X 44

54630033000

$30.78

6

HEX.NUT L/SH M18X1,5

54630029000

$10.65

7

LOCK WASHER VSK 18

58132072000

$2.05

9

SPACER SLEEVE 28X38X14

54630016200

$19.41

10

SHAFT SEAL RING 38X52X7BTSL

0760385273

$22.06

11

BALL BEARING 6206 TNH C4

0625062064

Unavailable

11

BALL BEARING 6306 C4

0625063061

$48.30

12

WOODRUFF KEY DIN6888-5X6,5

0888050650

Unavailable

13

*CRANKSHAFT 250 VI STROKE 69,5

54630018300

Unavailable

13

% CRANKSHAFT 300CC STROKE 73

54630318300

Unavailable

14

NEEDLE BEARING KBK 18X22X20

54430034000

$20.94

15

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

16

FLAT HEAD SCREW DIN7991-M 6X

0991060122

Unavailable

17

* RETAINING PLATE MAIN BEARING

54430019000

Unavailable

18

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

19

SPRING WASHER B12X22

54330029000

Unavailable

20

COLLAR NUT M12X1 R/S

49030021000

$2.05

25

INNER RING 25X30X17

54530023000

$20.49

30

CONR.REP.KIT 250/300 132MM '96

54630015044

$255.47

31

O-RING 25,00X1,50 NBR 70

0770250015

$1.49
