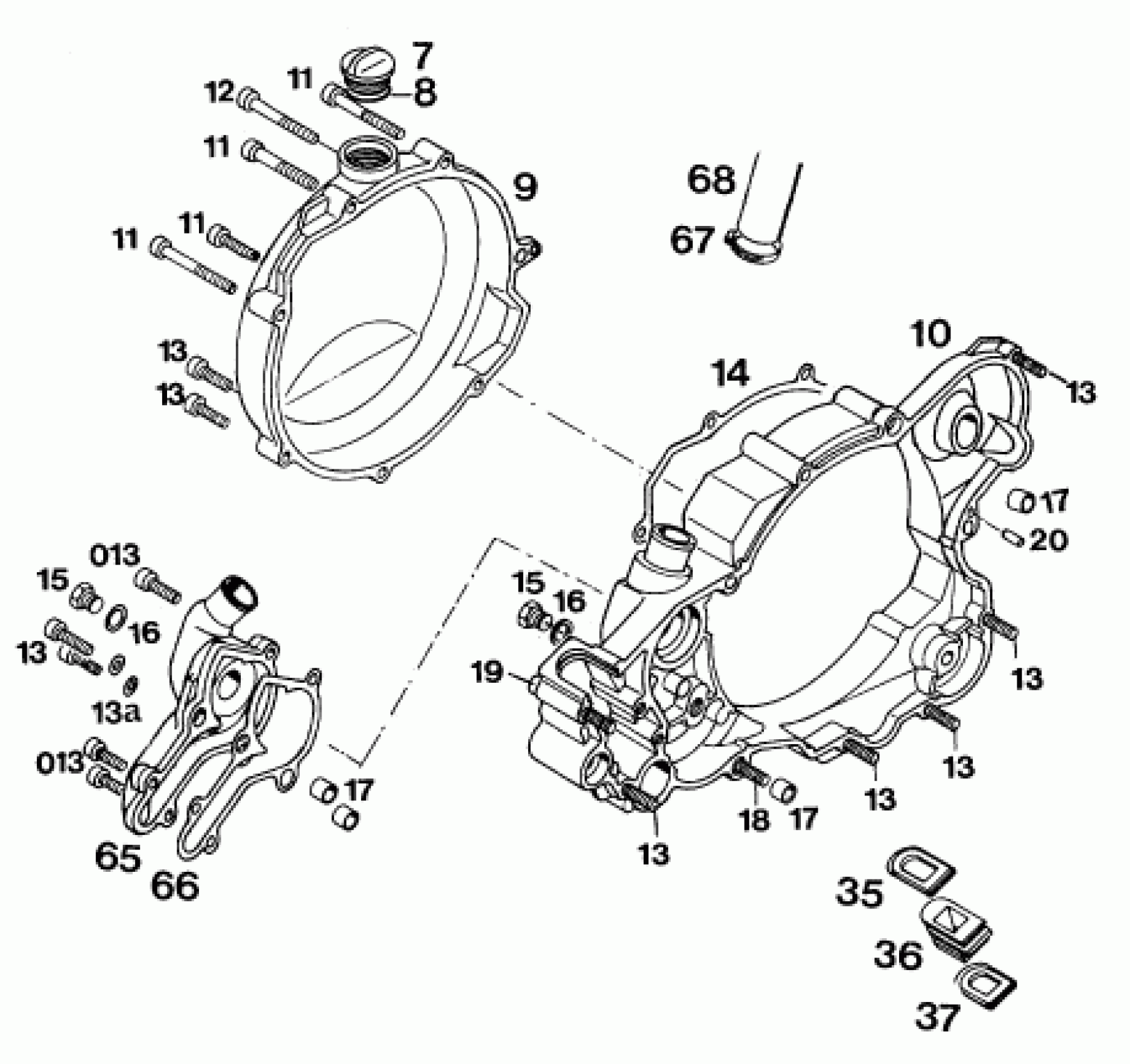

KTM 300 MXC 1994 CLUTCH COVER Diagram

#

Description
Price

5

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

5

AH SCREW DIN0912-M 6X20

0912060203

Unavailable

6

CU-SEAL RING 6 X 10 X 1

58036065000

Unavailable

7

PLUG M 24X3

58030020000

$5.23

8

O-RING 16,00X3,00 NBR 70

0770160030

$2.05

9

FRONT RIM ASSY

54630101000

Unavailable

10

CLUTCH COVER 250 VI '91

54630001200

Unavailable

11

HH COLLAR SCREW M 6X30 SW=8

0015060303

$3.08

11

AH SCREW DIN0912-M 6X30

0912060303

Unavailable

12

HH COLLAR SCREW M 6X70 WS=8

0015060703

$3.08

12

AH SCREW DIN0912-M 6X70

0912060703

Unavailable

13

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

13

AH SCREW DIN0912-M 6X25

0912060253

Unavailable

14

OUTER CLUTCH COVER GASKET

54630025050

$15.98

15

PLUG DIN908 M10x1

0908100003

Unavailable

16

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

17

DOWEL 9,8 X 7 X 10

49030090000

$2.05

19

HH COLLAR SCREW M 6X45 WS=8

0015060453

$2.05

19

AH SCREW DIN0912-M 6X45

0912060453

Unavailable

20

CYLINDER STUD DIN 7-5X20MM(M6)

0007050200

Unavailable

35

SEALING ELEMENT TOP

54637207000

$7.00

36

GASKET

54637007000

$5.22

37

SEALING ELEMENT BOTTOM

54637107000

$7.38

65

WATER PUMP COVER

54635001000

$30.87

66

WATER PUMP COVER GASKET

54635003200

$6.35

67

HOSE CLAMP GEMI 18-29

10001020000

$2.05

68

RADIATOR HOSE 18X25 PER METRE

56535025001

Unavailable
