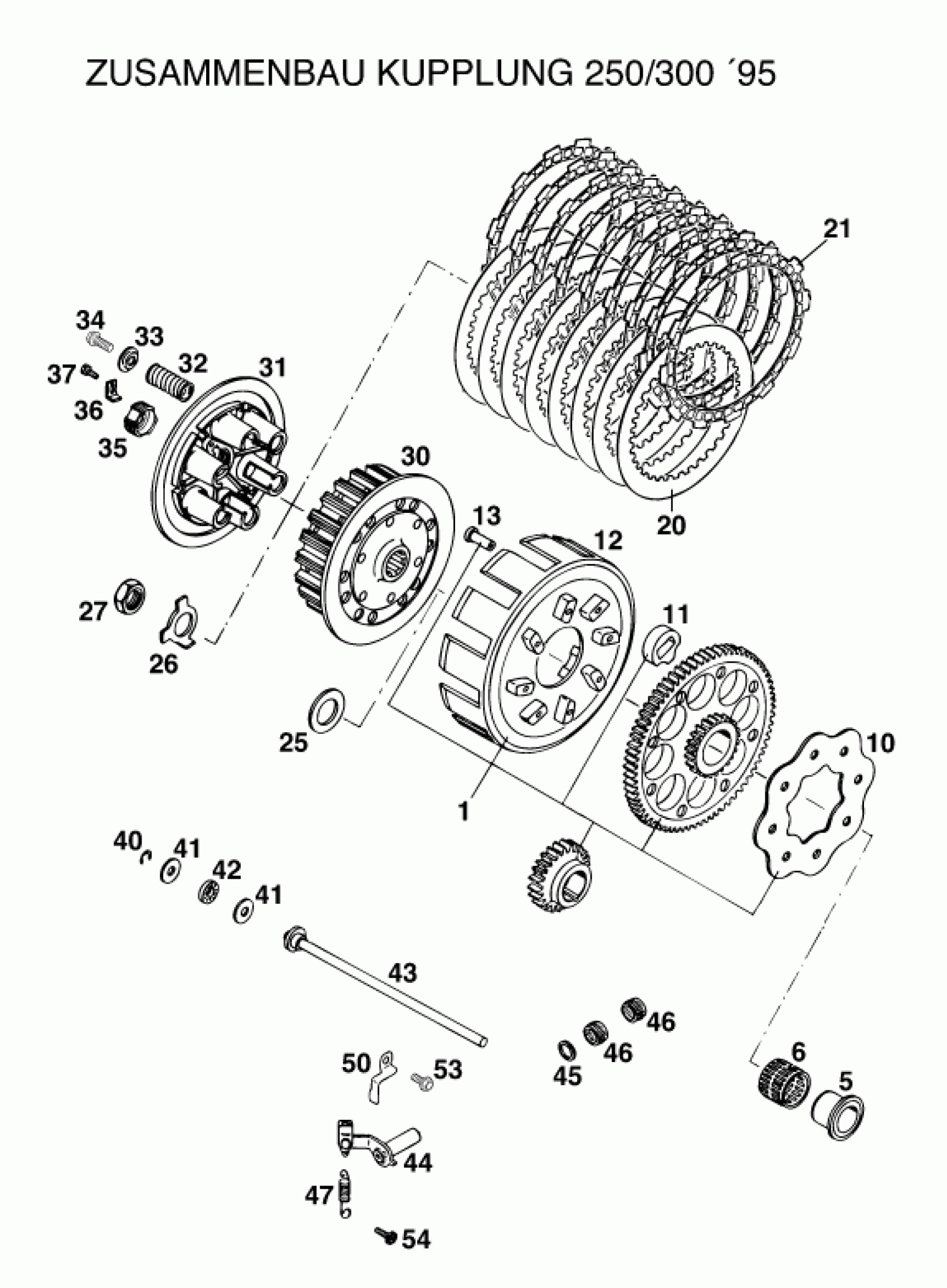

KTM 300 MXC 1994 CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH HUB 72T PRIM. 25T

54632001272

$406.53

5

INNER RING WITH COLLAR

50332070000

$49.27

6

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

10

RETAINING PLATE

58132028000

$6.30

11

DAMPING ELEMENT

58132026000

$6.07

12

OUTER CLUTCH HUB LOOSE

54632001200

$96.27

13

CLUTCH RIVET DIN7338- 6X15

0733060150

$7.85

20

STEEL DISK 1,2 MM

54632012000

$11.12

21

LINING DISK 2,7 MM

54632011200

Unavailable

25

54632013000

Unavailable

26

LOCK WASHER

56532018000

$6.26

27

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

30

INNER CLUTCH HUB

54632002200

$114.12

31

* PRESSURE CAP

58132003000

Unavailable

32

CLUTCH SPRING 2,5X43 8,5W

54632080000

$6.91

33

SPRING RETAINER 6,2 X 20 X 3,2

58132081000

$3.08

34

AH SCREW DIN0912-M 6X16

0912060163

$1.49

35

ADJUSTMENT SCREW M24X1

54632004000

$13.30

36

* ADJUSTMENT PLATE

54632005000

Unavailable

37

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

40

TAB WASHER DIN6799 RS5

0799050000

$1.49

41

* AXIAL WASHER AS619

49032010050

Unavailable

42

AXIAL-BEARING AXK0619

49032010000

Unavailable

43

* PUSH ROD 219 MM CPL

54632017244

Unavailable

44

CLUTCH RELEASE SHAFT '93

54632014544

$41.82

45

SEAL RING DH/GR 12X16X3

54632090000

$11.02

46

NEEDLE BEARING HK 1210

50232095000

$5.64

47

RELEASE LEVER SPRING L=33MM93

54632050500

$6.09

50

* RELEASE RETAINING PLATE '93

54632016500

Unavailable

53

AH SCREW DIN0912-M 5X12

0912050123

$2.05

54

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49
