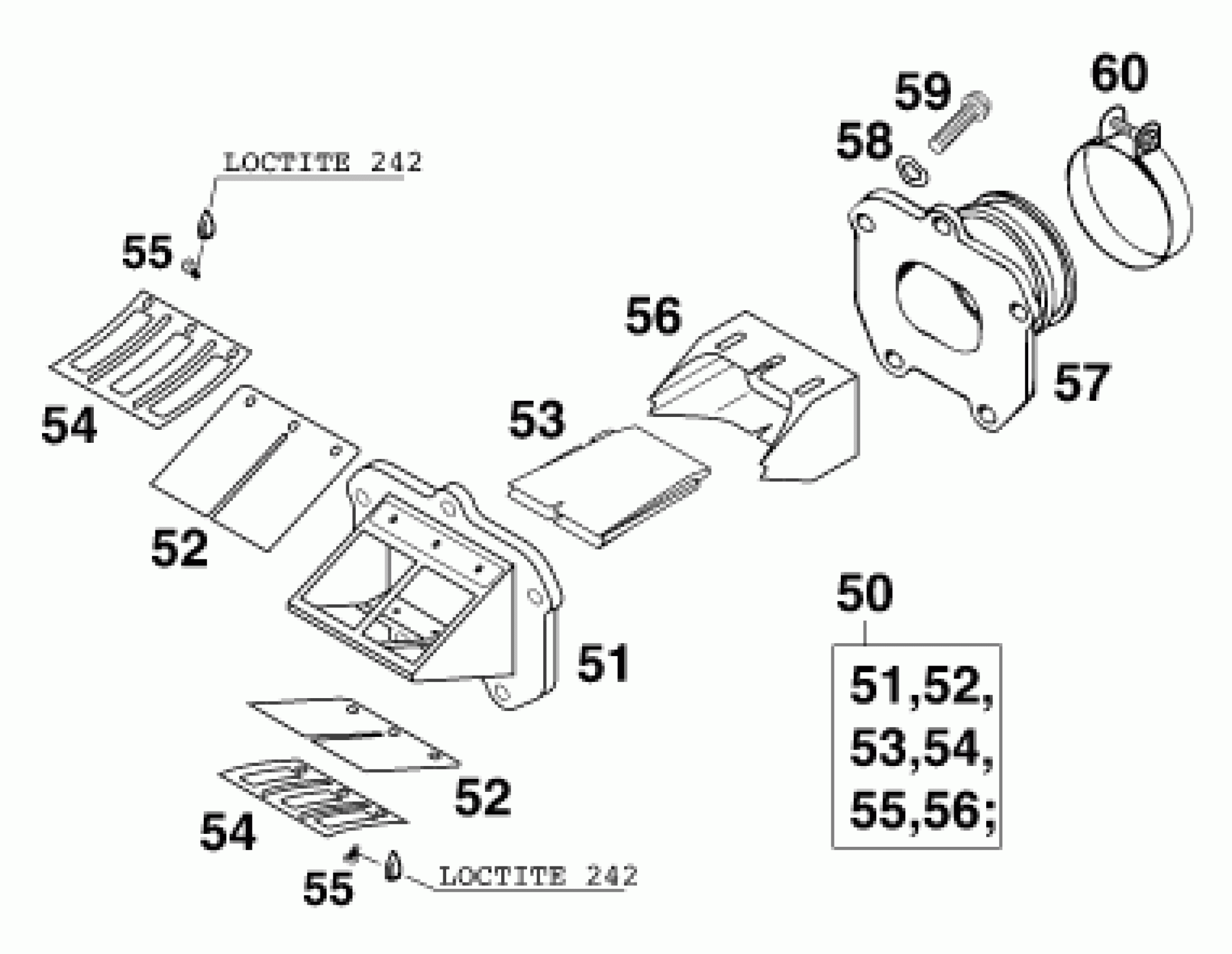

KTM 300 MXC 12lt '99 <1999> REED VALVE CASE Diagram

#

Description

Price

50

REED VALVE ASSY CPL125-380'99

54630051444

$129.02

52

REED VALVE CARBON 0,4MM '99

54730052040

$43.38

53

REED VALVE WING 125-380 '99

50330054050

$3.37

54

STOP PLATE TOP

54630053000

$7.63

55

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

56

REED VALVE INSERT 125-380 '99

50330054000

$7.69

57

INTAKE FLANGE 200-380

54630050000

$63.10

58

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

59

HH COLLAR SCREW M 6X25 WS=8

0015060253

$3.08

60

Hose clip GEMI 52mm

54330061000

$7.47
