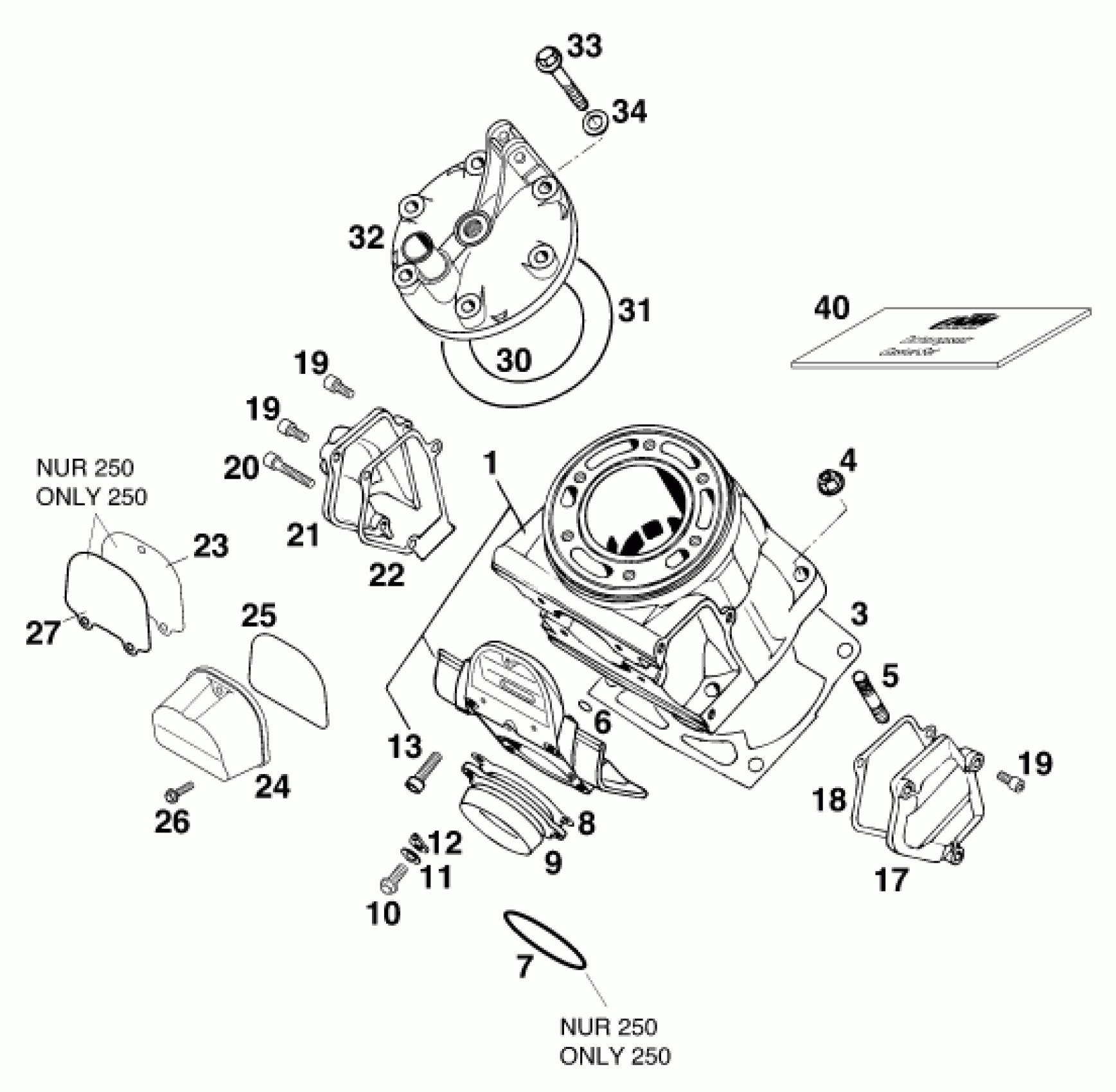

KTM 300 MXC 12lt '99 <1999 CYLINDER Diagram

CYLINDER CPL.W.FLANGE 250'99

54630105244

$443.85

CYLINDER CPL.W.FLANGE 300'98

54630405144

$1,014.58

CYLINDER CPL.W.FLANGE 380'98

54730005244

$845.35

CYLINDER BASE GASKET 0,20MM'96

54630030102

Unavailable

CYLINDER BASE GASKET 0,40MM'98

54630030104

Unavailable

CYLINDER BASE GASKET 0,50MM'96

54630030105

Unavailable

CYLINDER BASE GASKET 0,75MM'96

54630030107

Unavailable

COLLAR NUT M10 WS=13

54630044000

$1.49

STUD DIN0835-M10X35

0835100351

$5.23

STUD DIN0835-M10X40

0835100403

$3.14

O-RING 11,3 X2,4 SILICON

0770116241

$3.08

O-RING 44,00X3,00 VITON

0770440030

$4.11

EXHAUST FLANGE GASKET

54630046000

$10.09

EXHAUST FLANGE

54605073000

$48.03

EXHAUST FLANGE CPL. 250 '99

54705003000

$24.29

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

RETAINING PLATE

51005074000

$3.08

AH SCREW DIN0912-M 6X30

0912060303

$2.05

CONTROL COVER L/S

54637105000

$20.07

GASKET FOR SIDE COVER

54637106000

$5.23

AH SCREW DIN0912-M 5X12

0912050123

$2.05

AH SCREW DIN0912-M 5X30

0912050303

$1.49

CONTROL COVER R/S

54637005000

$20.78

GASKET FOR CONTROL COVER

54637006100

$7.28

FLANGE COVER GASKET 250 '99

54737010050

$4.14

FLANGE COVER KTC '98

54737010000

$10.86

O-RING 69,00X2,00 NBR 70

0770690020

$5.23

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

COVER FLANGE ALU 1,2MM

54737010051

Unavailable

0-RING 74,00X2,00 SILICONE

0770740021

$5.32

0-RING 78,00X2,00 SILICON

0770780021

Unavailable

0-RING 84,00X2,00 SILICON

0770840021

$5.23

O-RING 114,00X2,00 SILICONE

0770114020

$7.56

CYLINDER HEAD ''2502'' 250'

54630006700

$109.39

CYLINDER HEAD "3001" 300'96

54630306600

Unavailable

*CYLIND. HEAD "3602"360/380'97

54730006100

Unavailable

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

CU-SEAL RING 8 X 16 X 1

56530080000

$2.05

GASKET SET CYLINDER '96-'01

54630097000

$81.64
