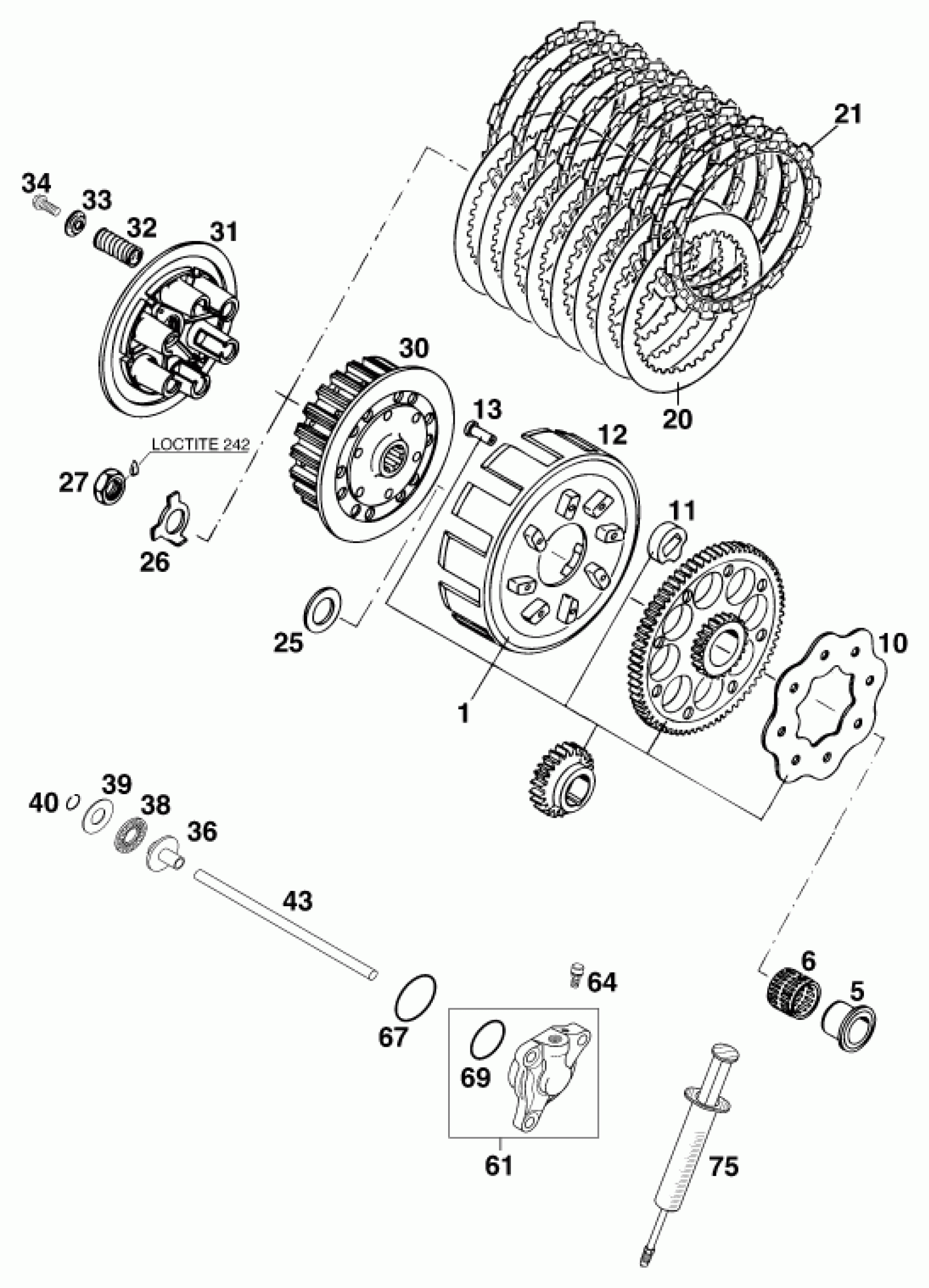

KTM 300 MXC 12lt '99 <1999 CLUTCH Diagram

#

Description
Price

1

OUTER CLUTCH HUB 72T PRIM. 25T

54632001272

$406.53

1

OUTER CLUTCH HUB 72T PRIM. 26T

54632001372

$381.71

5

INNER RING WITH COLLAR

50332070000

$49.27

6

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

10

RETAINING PLATE

58132028000

$6.30

11

DAMPING ELEMENT

58132026000

$6.07

12

OUTER CLUTCH HUB LOOSE

54632001200

$96.27

13

CLUTCH RIVET DIN7338- 6X15

0733060150

$7.85

20

STEEL DISK 1,2 MM

54632012000

$11.12

21

LINING DISK 2,7 MM '96

54632011300

$24.11

25

SUPPORTWASHER 22,2X35X3 HARDE.

57532013000

$18.72

26

LOCK WASHER

56532018000

$6.26

27

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

30

INNER CLUTCH HUB

54632002200

$114.12

31

PRESSURE CAP 250-380 '98

54632003000

$78.91

32

CLUTCH SPRING 2,5X43 8,5W

54632080000

$6.91

33

SPRING RETAINER 6,2 X 20 X 3,2

58132081000

$3.08

34

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

36

PRESSURE PIECE 125-380 '98

50332054051

$26.45

38

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

39

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

39

AXIAL WASHER 12,5X25,8X1,5

54637098300

Unavailable

40

CIRCLIP DIN7993-RW12

0993012000

$3.08

43

PUSH ROD L=199,8MM 250-380 '99

54732054000

Unavailable

61

CYLINDER CPL. 250-380 '99

54732061044

Unavailable

64

BLEEDER SCREW WITH CAP

54732064000

$21.96

67

O-ring 30x1.5 NBR 70

0770300015

$2.05

69

O-RING 23,52X1,78

0770020210

$2.05

75

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26
