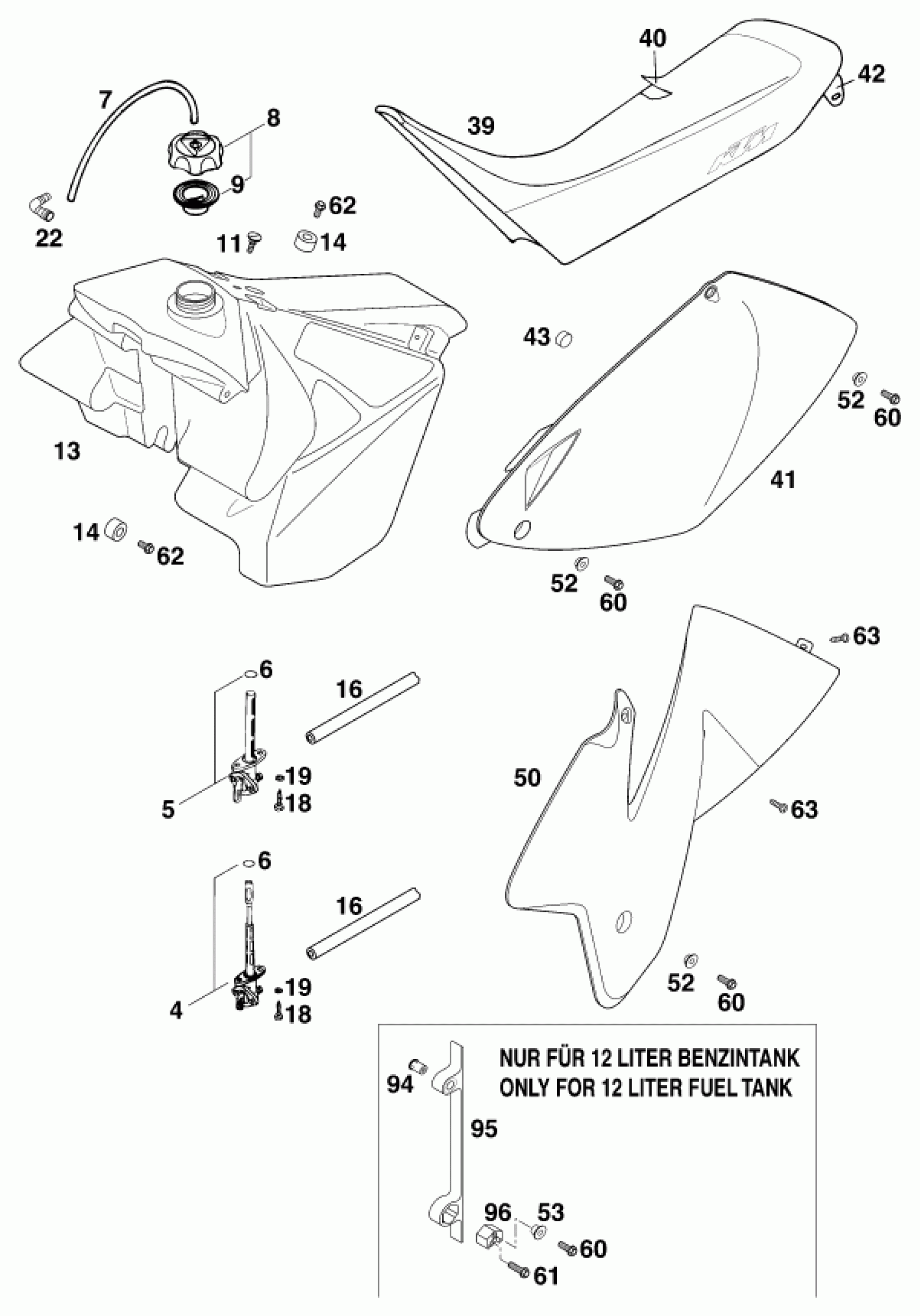

KTM 300 MXC 12lt <1998> TANK, SEAT Diagram

#

Description
Price

0

* SIDE COVER R/S SILVER '98

5030804200090

Unavailable

0

SPOILER R/S ORANGE '98

5030805100004

$24.95

4

FUEL COCK CPL. OFF-ON-RES

58307105200

$44.68

5

GAS COCK CPL. OFF-ON

55007005300

$32.53

6

O-RING 11X1,8 NBR 70

55007006200

$2.05

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

FILLER CAP CPL. SMALL

49007008044

$23.65

9

% GASKET FOR FILLER CAP

49007009000

Unavailable

11

SCREW SEAT FASTENING D=6X23/18

50307011000

$3.08

13

FUEL TANK CPL. 7,5 LITER '98

50307013000

$238.99

13

FUEL TANK CPL. 9,5 LITER '98

50307013100

$189.40

13

FUEL TANK CPL. 12 LITER '98

52307013000

Unavailable

14

TANK ROLLER 12X26X12 '98

50307014000

$11.02

16

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

18

HH S.MET.SCREW DIN7676- 5,5X

0676550223

$2.05

19

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

$1.49

22

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

39

SEAT 125-380 STANDARD '

50307040100

Unavailable

40

SEAT COVER 125-380 STANDARD'

50307040150

Unavailable

41

SIDE COVER L/S SILVER '98

5030804100090

Unavailable

42

SEAT BRACKET L/S-R/S '98

50307041000

$6.62

43

RUBBER FOR SIDE COVER '98

50308042055

$4.11

50

SPOILER L/S ORANGE '98

5030805000004

$24.95

52

BUSH FOR SPOILER 6X11X16X5 MM

50308052000

$1.96

53

BUSH FOR SPOILER 6X11X16X7,5

50308053000

$5.70

60

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

61

HH COLLAR SCREW M 6X20 WS=8

0015060203

$3.08

62

HH COLLAR SCREW M 6X12 WS=8

0015060123

$3.08

63

SHEET MET.SCR.DIN7981- 5,5x19

0981550193

$1.49

94

BLIND RIVET NUT M 6X15,5 STEEL

55003139600

$1.49

95

SPOILER ADAPTER '98

50335095000

$7.46

96

TANK ADAPTER BUSH '98

50335096000

$9.54
