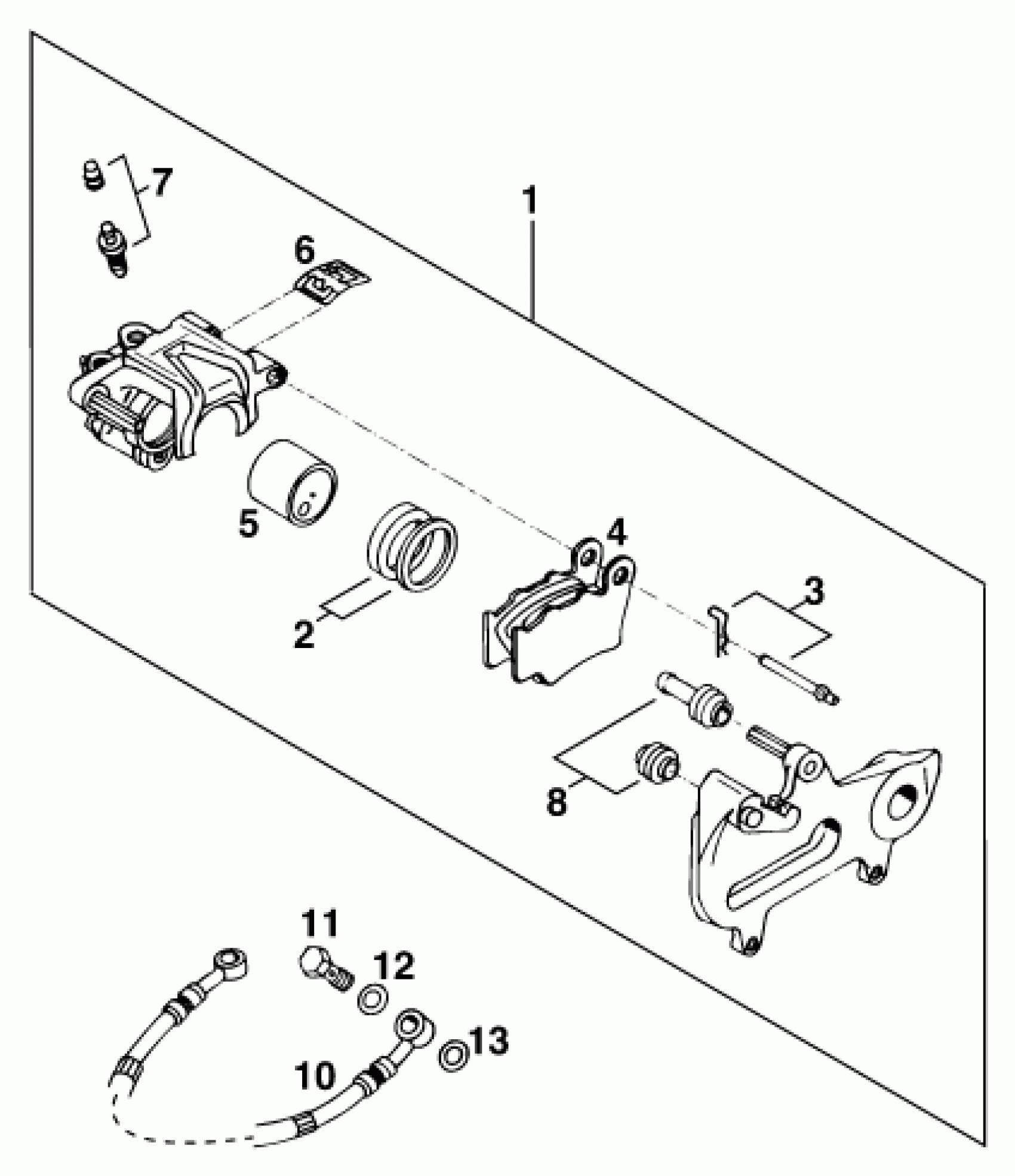

KTM 300 MXC 12lt <1998> REAR BRAKE CALIPER Diagram

#

Description

Price

1

BRAKE CALIPER REAR CMPL.'94

54613301244

Unavailable

2

REPAIR KIT SEALING RINGS 34MM

54613318200

$21.31

3

BOLT SET

54613310200

$22.71

4

BRAKE PAD SET FERIT ID450FF

54613309200

$41.88

4

BRAKE PAD SET REAR SINTER

54613309300

$56.09

5

BRAKE PISTON 34MM

54613305200

$51.14

6

RETAINING SPRING SET

54613311200

$15.61

7

BLEEDER SCREW M10X1

54513214000

$7.38

8

CUP SET SHORT

54613218000

$23.55

10

BRAKE HOSE RE.590MM 125-380'98

50313070000

$56.64

11

HOLLOW SCREW M10X1X19

50213025000

$6.54

12

CU-SEAL RING DIN7603-10X16X1

42013226000

$2.05

13

CU-SEAL RING DIN7603-10X16X1,5

42013026000

$2.05
