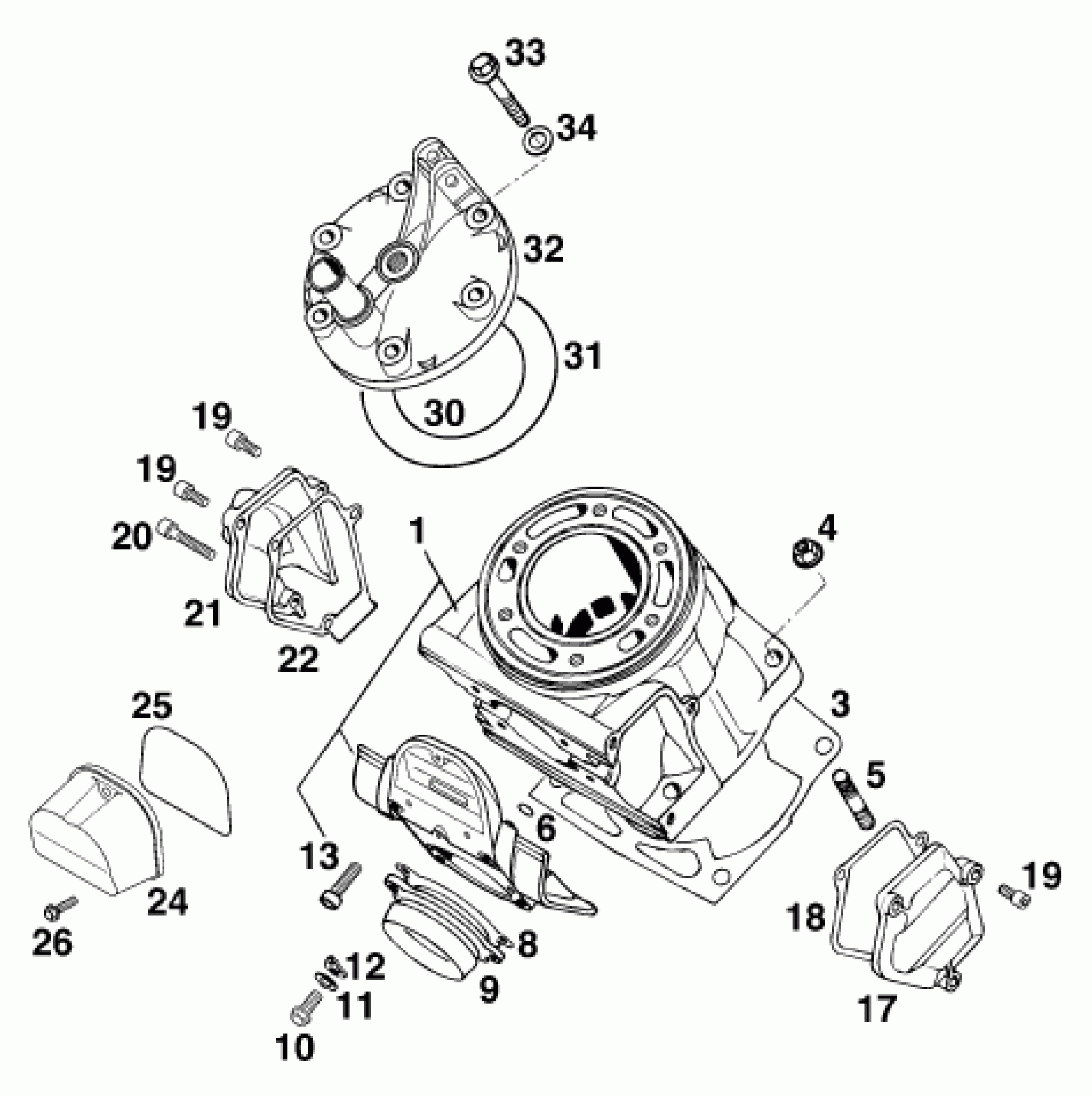

KTM 300 MXC 12lt <1998> CYLINDER Diagram

#

Description
Price

1

% CYLINDER CPL.W.FLANGE 250'98

54630105144

Unavailable

1

CYLINDER CPL.W.FLANGE 300'98

54630405144

$1,014.58

1

CYLINDER CPL.W.FLANGE 380'98

54730005244

$845.35

3

CYLINDER BASE GASKET 0,20MM'96

54630030102

Unavailable

3

CYLINDER BASE GASKET 0,40MM'98

54630030104

Unavailable

3

CYLINDER BASE GASKET 0,50MM'96

54630030105

Unavailable

3

CYLINDER BASE GASKET 0,75MM'96

54630030107

Unavailable

4

COLLAR NUT M10 WS=13

54630044000

$1.49

5

STUD DIN0835-M10X35

0835100351

$5.23

5

STUD DIN0835-M10X40

0835100403

$3.14

6

O-RING 11,3 X2,4 SILICON

0770116241

$3.08

8

EXHAUST FLANGE GASKET

54630046000

$10.09

9

EXHAUST FLANGE

54605073000

$48.03

10

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

11

SPRING WASHER DIN0137-B 6

0137060000

Unavailable

12

RETAINING PLATE

51005074000

$3.08

13

AH SCREW DIN0912-M 6X30

0912060303

$2.05

17

CONTROL COVER L/S

54637105000

$20.07

18

GASKET FOR SIDE COVER

54637106000

$5.23

19

AH SCREW DIN0912-M 5X12

0912050123

$2.05

20

AH SCREW DIN0912-M 5X30

0912050303

$1.49

21

CONTROL COVER R/S

54637005000

$20.78

22

GASKET FOR CONTROL COVER

54637006100

$7.28

24

FLANGE COVER KTC '98

54737010000

$10.86

25

O-RING 69,00X2,00 NBR 70

0770690020

$5.23

26

HH COLLAR SCREW M 5X20 WS=8

0015050203

$2.05

30

0-RING 74,00X2,00 SILICONE

0770740021

$5.32

30

0-RING 78,00X2,00 SILICON

0770780021

Unavailable

30

0-RING 84,00X2,00 SILICON

0770840021

$5.23

31

O-RING 114,00X2,00 SILICONE

0770114020

$7.56

32

CYLINDER HEAD ''2501'' 250'96

54630006600

$118.48

32

CYLINDER HEAD "3001" 300'96

54630306600

Unavailable

32

*CYLIND. HEAD "3602"360/380'97

54730006100

Unavailable

33

HH COLLAR SCREW M 8X44 WS13

56530079000

$3.08

34

CU-SEAL RING 8 X 16 X 1

56530080000

$2.05
