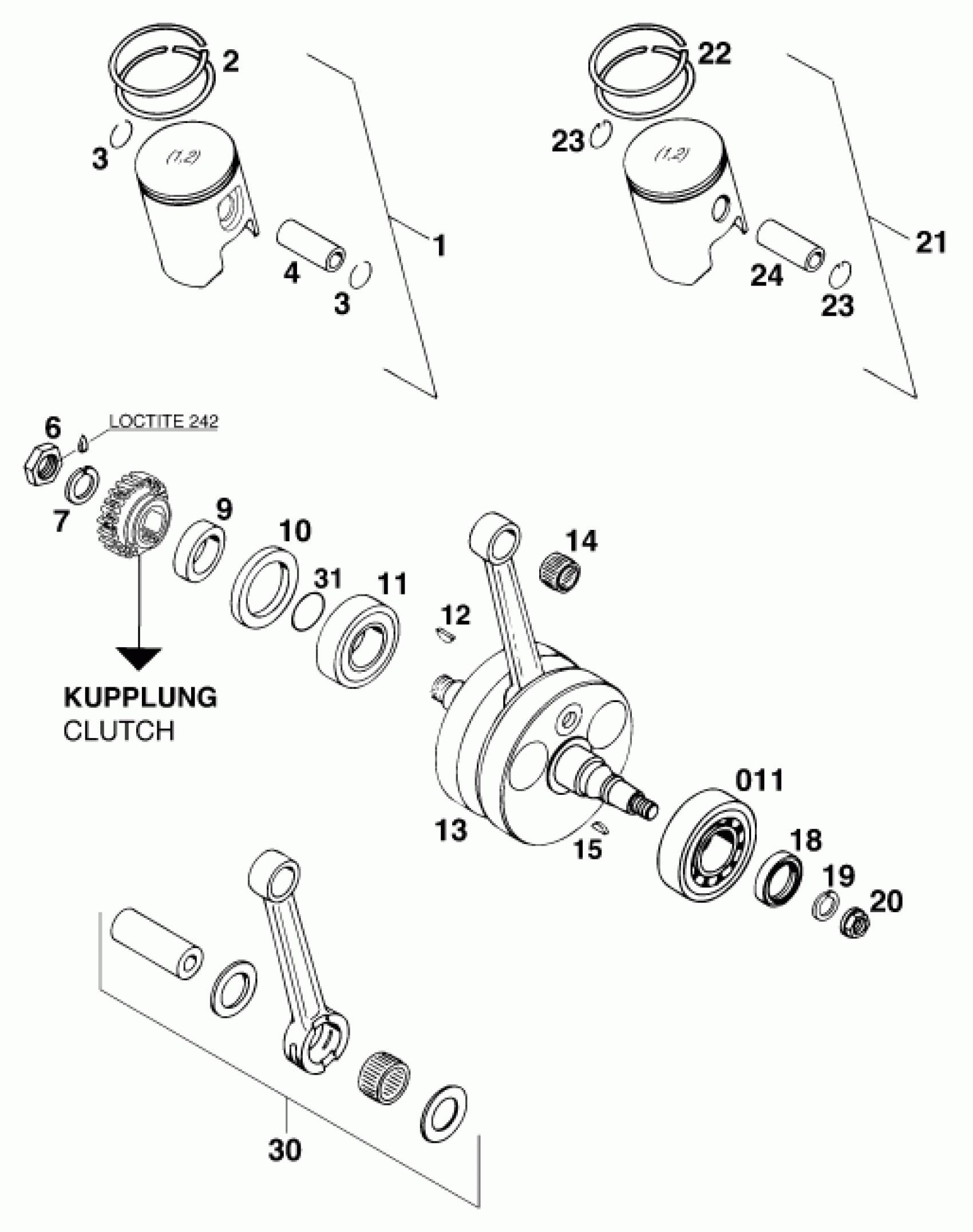

KTM 300 MXC 12lt <1998> CRANKSHAFT, PISTON Diagram

#

Description
Price

1

PISTON I CPL. 67,5MM 250'

54630007500 I

$167.57

1

PISTON II CPL. 67,5MM 250'

54630007500 II

$175.94

1

PISTON I CPL. 78,0MM 380'

54730007200 I

Unavailable

1

PISTON II CPL. 78,0MM 380'98

54730007200 II

$155.37

2

SQUARE RING 67,5X1 250 CC

54630032000

$44.56

2

SQUARE R. 78,0X1,25 360/380 CC

54730032000

$43.13

3

WIRE LOCK RING C18X1,5

54030074000

$3.08

4

PISTON PIN 18 X 48

54730033000

$46.39

6

HEX.NUT L/SH M18X1,5

54630029000

$10.65

7

LOCK WASHER VSK 18

58132072000

$2.05

9

SPACER SLEEVE 28X38X11,5

54630016400

$18.09

10

SHAFT SEAL RING 38X52X7BTSL

0760385273

$22.06

11

BALL BEARING 62206.803107

0625622064

$42.99

11

CYLIND.ROLL.BEARING

56530123100

$107.05

12

WOODRUFF KEY DIN6888-5X6,5

0888050650

Unavailable

13

% CRANKSHAFT STROKE 69,5 "250"

54630018400

Unavailable

13

CRANKSHAFT STROKE 73 ''300''

54630318400

$621.58

13

CRANKSHAFT STROKE 77 ''380''

54730018500

$877.09

14

NEEDLE BEARING KBK 18X22X20

54430034000

$20.94

15

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

18

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

19

LOCKING RING VSK 12

50230029012

$2.05

20

COLLAR NUT M12X1 R/S

49030021000

$2.05

21

PISTON I CPL. 72,0MM 300'96

54630307400 I

$335.98

21

PISTON II CPL. 72,0MM 300'96

54630307400 II

$335.98

22

SQUARE RING 72,0X1,25 300 CC

54630332000

$34.35

23

WIRE LOCK RING SKA 18

54330074000

$9.72

24

PISTON PIN 18 X 44

54630033000

$30.78

30

CONR.REP.KIT 250/300 132MM '96

54630015044

$255.47

30

CONR.REP.KIT 360/380 135MM '97

54730015000

$301.95

31

O-RING 25,00X1,50 NBR 70

0770250015

$1.49
