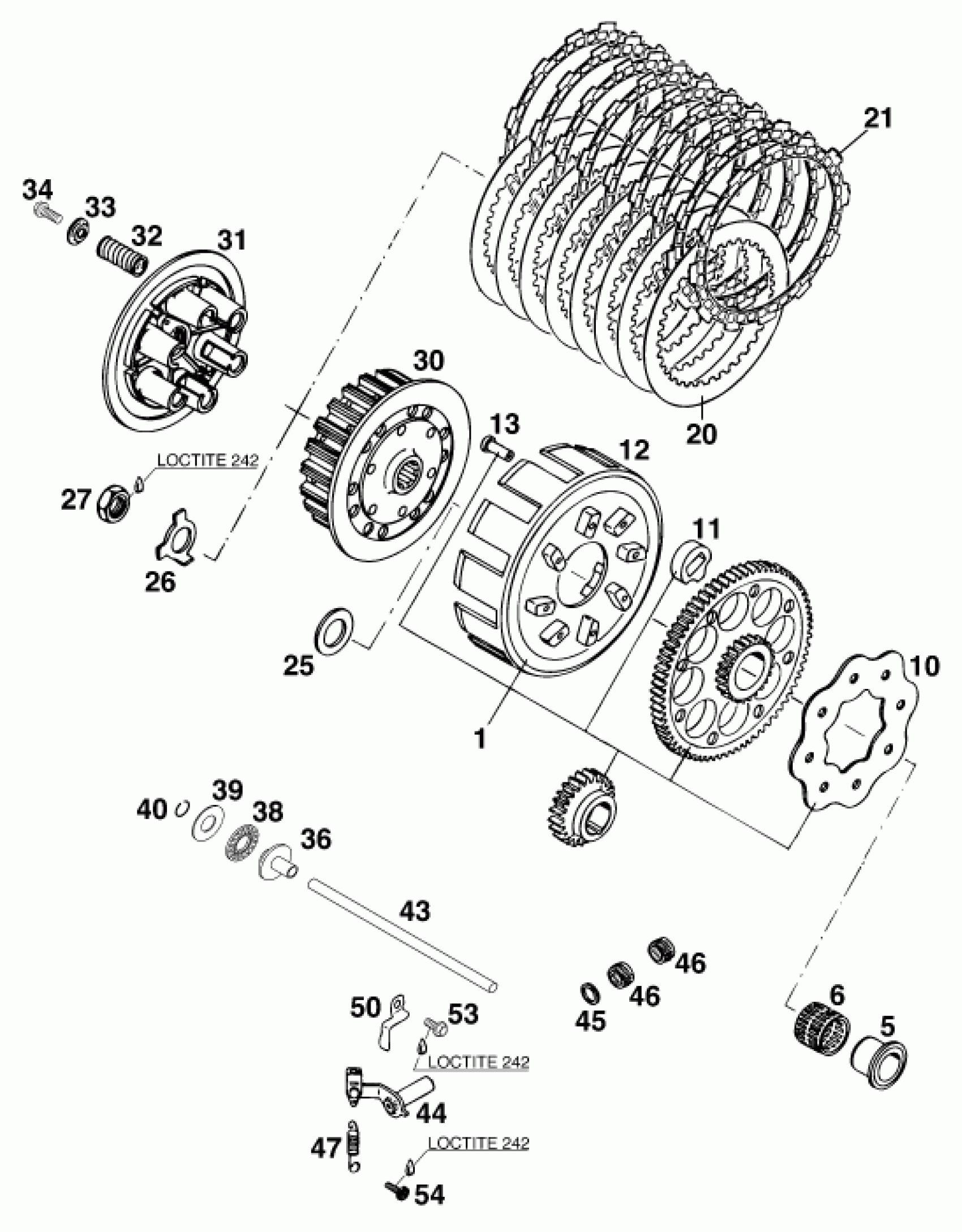

KTM 300 MXC 12lt <1998 CLUTCH Diagram

OUTER CLUTCH HUB 72T PRIM. 25T

54632001272

$406.53

OUTER CLUTCH HUB 72T PRIM. 26T

54632001372

$381.71

INNER RING WITH COLLAR

50332070000

$49.27

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

RETAINING PLATE

58132028000

$6.30

DAMPING ELEMENT

58132026000

$6.07

OUTER CLUTCH HUB LOOSE

54632001200

$96.27

CLUTCH RIVET DIN7338- 6X15

0733060150

$7.85

STEEL DISK 1,2 MM

54632012000

$11.12

LINING DISK 2,7 MM '96

54632011300

$24.11

SUPPORTWASHER 22,2X35X3 HARDE.

57532013000

$18.72

LOCK WASHER

56532018000

$6.26

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

$7.75

INNER CLUTCH HUB

54632002200

$114.12

PRESSURE PLATE '

58132003200

Unavailable

CLUTCH SPRING 2,5X43 8,5W

54632080000

$6.91

SPRING RETAINER 6,2 X 20 X 3,2

58132081000

$3.08

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

PRESSURE PIECE 125-380 '98

50332054051

$26.45

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

AXIAL WASHER 12,5X25,8X1,5

54637098300

Unavailable

CIRCLIP DIN7993-RW12

0993012000

$3.08

* PUSH ROD L=216MM D=7MM '98

54632054000

Unavailable

CLUTCH RELEASE SHAFT '93

54632014544

$41.82

SEAL RING DH/GR 12X16X3

54632090000

$11.02

NEEDLE BEARING HK 1210

50232095000

$5.64

RELEASE LEVER SPRING L=33MM93

54632050500

$6.09

* RELEASE RETAINING PLATE '93

54632016500

Unavailable

HH COLLAR SCREW M 5X12 WS=8

0015050123

$3.08

OVAL HEAD SCR. DIN7985-M 5X10

0985050103

$1.49
