HANDLEBAR, CONTROLS

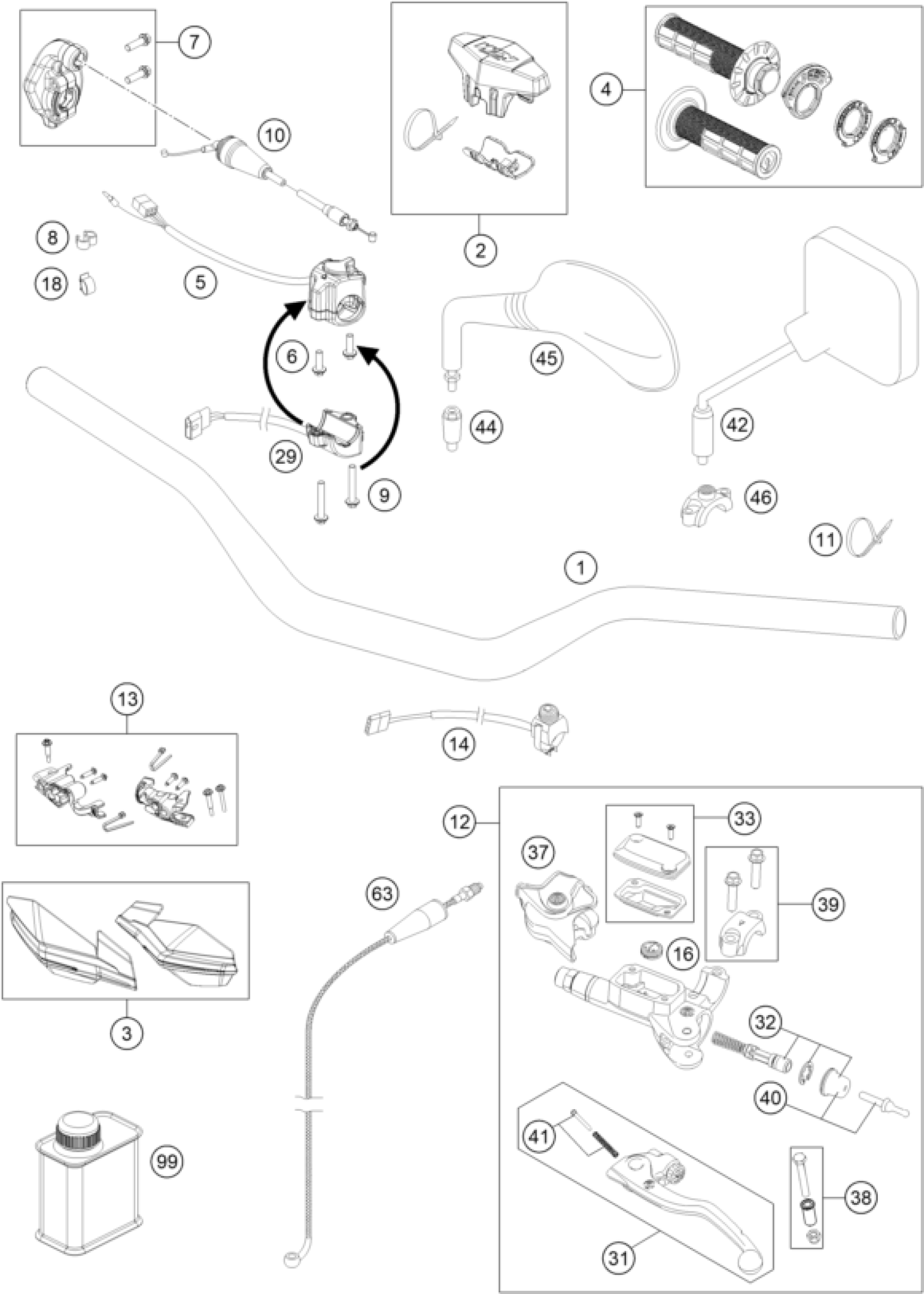

KTM 300 EXC CKD 2019 HANDLEBAR, CONTROLS Diagram
#
Description
Price
1
HANDLEBAR
7800200100030
$151.84
2
Bar pad cmpl.
77202002144
$22.94
3
Handguard
79602182044EB
$26.34
4
GRIP SET
79002021100
$31.44
5
LIGHT SWITCH
78111070000
$76.76
6
HH COLLAR SCREW M 5X16 WS=6
0014050163
$2.05
7
THROTTLE BODY CPL.
50402010025
$35.24
8
CLIP 5/7 MM 06
60111094000
$3.08
9
HH COLLAR SCREW M5X30 SW=6
0014050303
$1.49
10
THROTTLE CABLE
50402091000
$59.83
11
Cable tie 200/4.6mm black
44011076200
$1.49
12
MASTER CYLINDER CPL.
54802030144
$240.57
13
Handguard assembly kit
79602084044
$33.99
14
STARTER BUTTON GREY 13
78111074000
$42.91
16
VALVE
54802051000
$19.16
18
WIRING HOLDER 16MM
57013072100
$1.49
33
COVER HYD. CLUTCH CPL. 2014
5480200310030
$35.52
37
PROTECTION CAP 06
54802037000
$20.94
38
Lever screw cmpl. 06
54802038100
$39.82
39
CLAMP CPL. 06
54802005100
$25.80
40
Push rod cmpl.
54802046000
$23.46
41
BOLT KPL.
54802052000
$29.35
29
FLASHER SWITCH
78111029000
$29.35
31
Clutch lever cmpl. BREMBO 06
54802031000
$45.15
32
REP. KIT PISTON 06
54802032000
$49.92
42
Rear view mirror left
58012040000
$36.18
42
Rear view mirror right
58012140000
$37.11
44
SUPPORT FOR MIRROR LC4 '98
58412040050
$20.19
45
MIRROR L/S 98
58412040000
Unavailable
45
MIRROR R/S 98
58412041000
Unavailable
46
Clamp for mirror
58012040150
$22.81
63
CLUTCH PIPE
79232063000
$112.38
99
Brake fluid DOT5.1 0,25L
00062030000
$12.52
