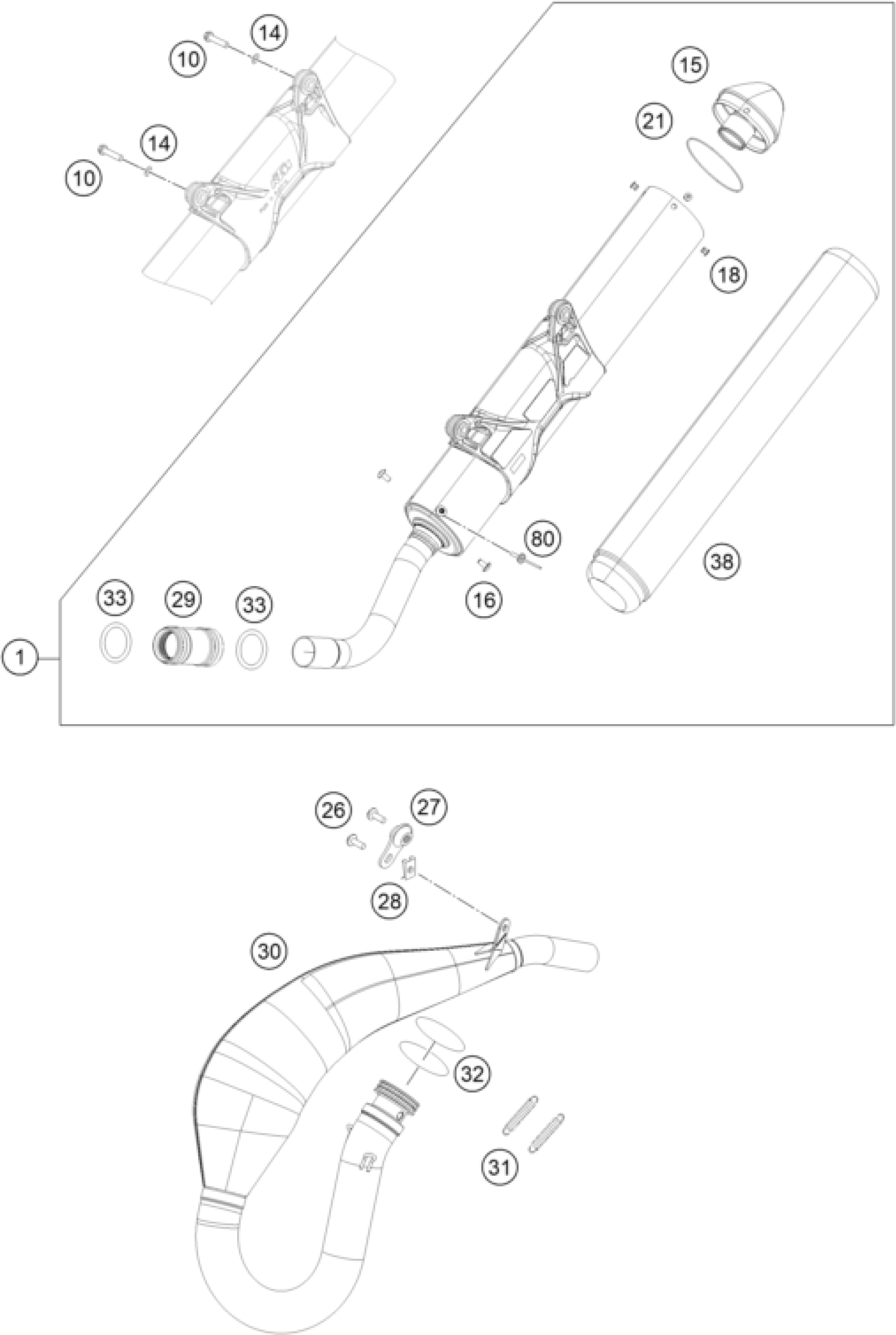

KTM 300 EXC CKD 2019 EXHAUST SYSTEM Diagram

#

Description
Price

1

MAIN SILENCER 250 EXC

55605083000

$402.51

10

HH collar screw M6x35 TX30

0025060356

$3.08

14

Pair of washers M6 NORDLOCK

50233041000

$4.11

15

ENDCAP CPL.

54805083260

$84.24

16

SCREW TORX M5X10

78105081010

$2.05

18

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

21

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

26

HH collar screw M6x15 TX30

0024060156

$3.08

27

Silent block for exhaust pipe

50305012000

$19.91

28

clip nut M6

54603048100

$4.11

29

exhaust rubber

55405057000

$16.07

30

EXHAUST MANIFOLD

55405007000

$568.66

31

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

32

O-RING 44,00X3,00 VITON

0770440030

$4.11

33

hose spring

55405058000

$3.08

38

ROCKWOOL 315G

54805078315

$59.46

80

DUMMY RIVET 4,0X12 ALU

0011401200

Unavailable
