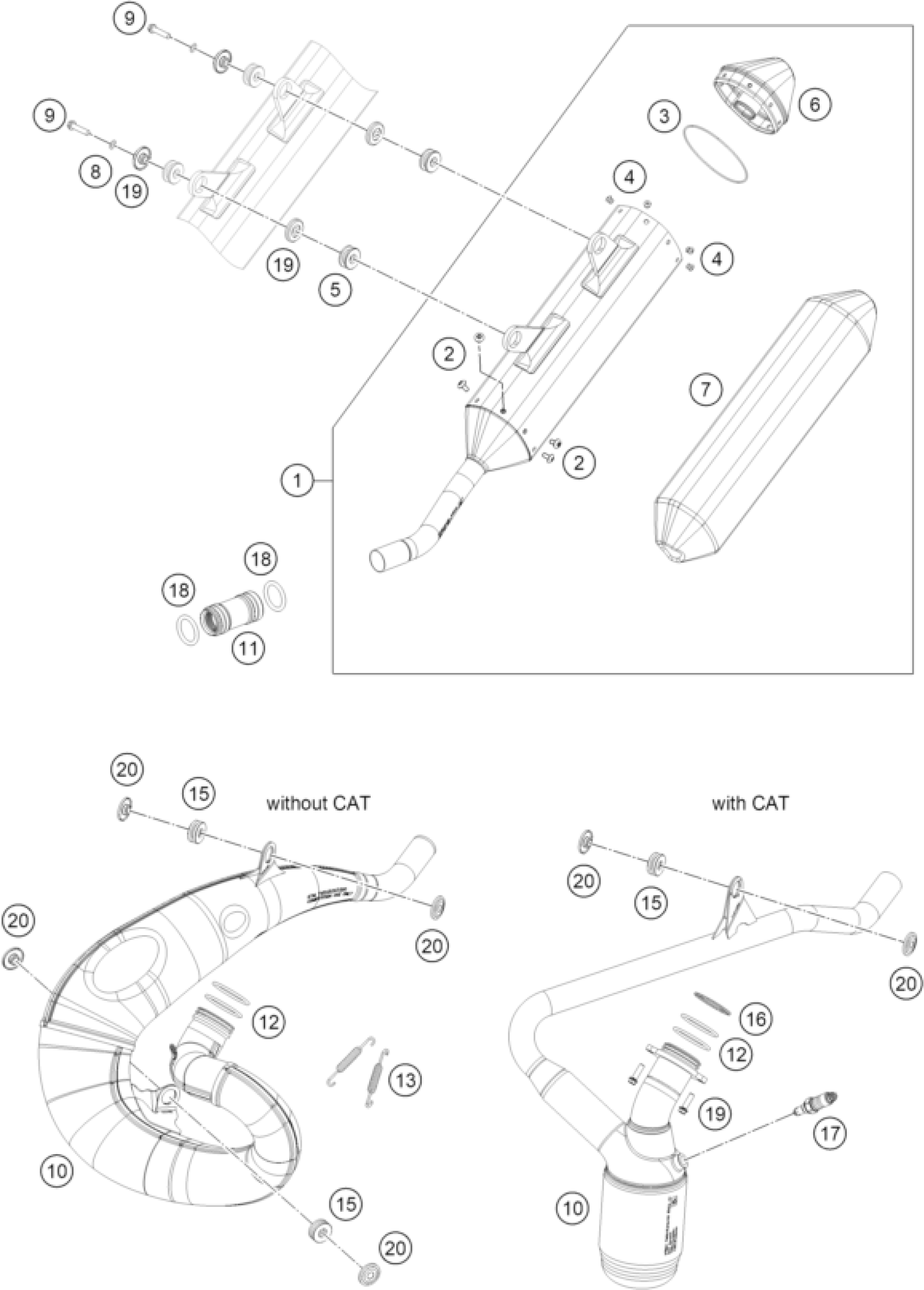

KTM 300 EXC 2026 EXHAUST SYSTEM Diagram

#

Description
Price

1

Silencer EXC

A45005081000

$618.49

2

SCREW TORX M5X10

78105081010

$2.05

4

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

5

DAMP. COMPON. BLACK

77205068000

$6.54

6

end cap cpl.

A44005079060

$110.51

7

stuffingyarn package

55505083085

$78.44

8

Pair of washers M6 NORDLOCK

50233041000

$4.11

9

HH collar screw M6x30 TX30

0025060306

$3.08

10

Manifold with catalyst

T45105109000

Unavailable

10

Header

T45105007000

Unavailable

11

exhaust rubber

50405057000

$9.62

12

O-RING 44,00X3,00 VITON

0770440030

$4.11

13

Tension spring L=62mm

A46005016000

$4.57

15

Damper gray

79105068000

$8.03

16

Filling sealing ring 42x49x2.5

0076034225000

Unavailable

17

LAMBDA SENSOR

75041090200

$327.34

18

Hose spring

50405058000

$4.11

19

HH collar screw M6x20 TX30

0025060206

$3.08

20

BUSHING 8.5x12x28x8.3

77805069000

$5.98

3

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11
