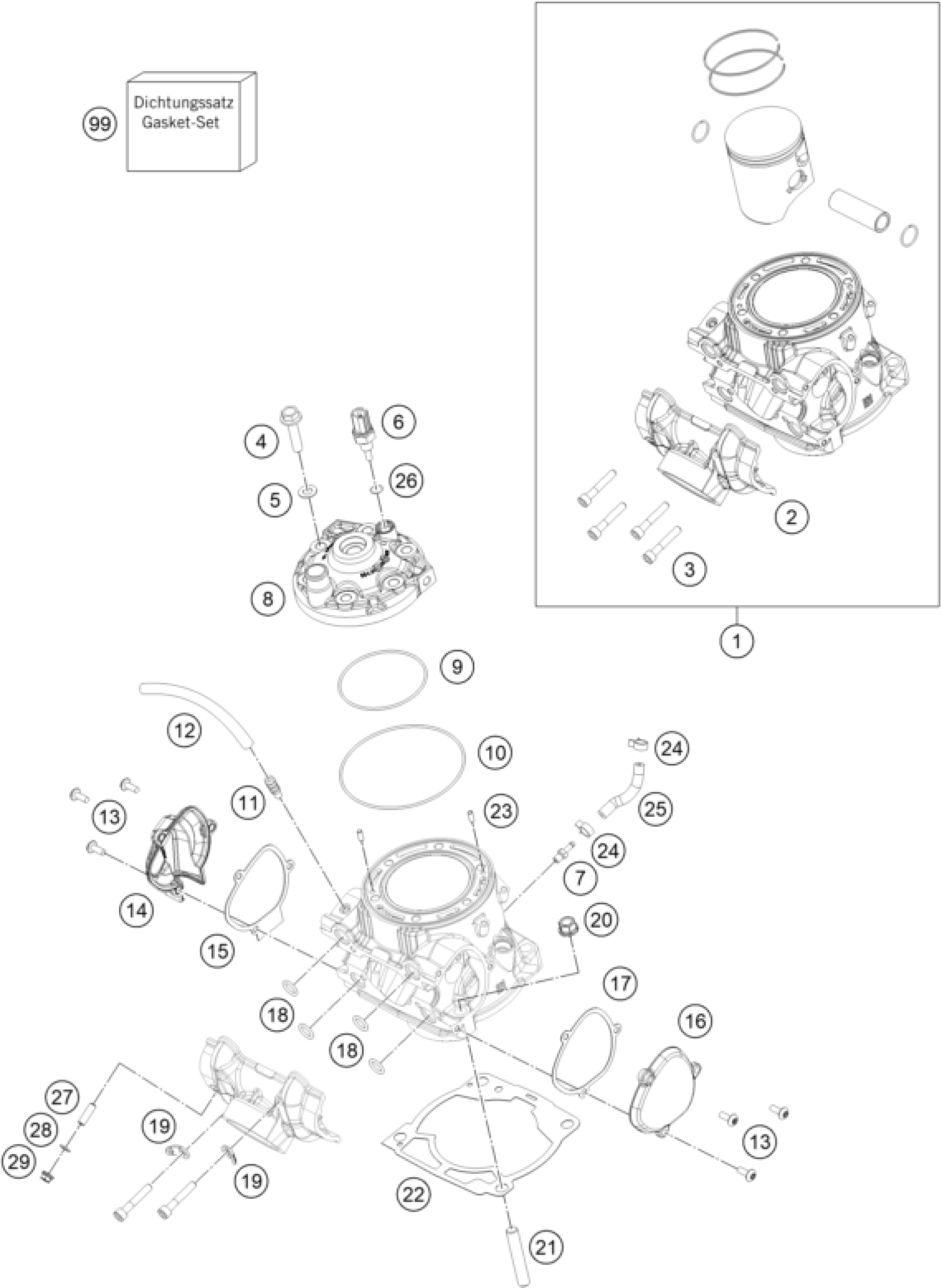

KTM 300 EXC 2023 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

cylinder + piston

55730238000

Unavailable

2

Intermediate flange

55537301100

Unavailable

3

AH SCREW DIN0912-M 6X35

0912060353

$2.05

4

COLLAR SCREW M 8X35 WS=13

54830079000

$4.11

5

CU-SEAL RING 8 X 16 X 1

56530080000

$2.05

6

water temperature sensor

79435047000

$23.74

7

Vacuum connection

55430023000

$7.10

8

Cylinder head KTM 300 EXC

55630106100

$165.95

9

O-RING 78,00X2,00 VIT. BLACK

0770078020

$5.23

10

O-Ring 107x2

0770107020

$3.08

11

VACUUM CONNECTION M6

78036020090

$7.66

12

HOSE EPA D=6/10 PER METER

78015019001

$62.64

13

Oval head screw M5x14 TX25

58605083014

$3.08

14

exhaust control cover rh

5483700710015

$38.42

15

Gasket control cover, right

55537008000

$6.91

16

CONTROL COVER L/S 09

5483700500015

$24.58

17

Gasket control cover, left

55537006000

$6.91

18

O-RING 11,3 X2,4 SILICON

0770116241

$3.08

19

RETAINING PLATE

51005074000

$3.08

20

Collar nut M10-SW13 ZnNi

55530044000

$1.49

21

Stud M10x35

0835100353

$2.05

22

CYLINDER BASE GASKET

55430030020

Unavailable

22

CYLINDER BASE GASKET

55430030025

Unavailable

22

Cylinder base gasket

55430030030

$5.23

22

CYLINDER BASE GASKET

55430030040

Unavailable

22

CYLINDER BASE GASKET

55430030050

Unavailable

22

CYLINDER FOOT GASKET

55430030075

Unavailable

23

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

24

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

25

tube 3,2x9.0 L=75mm

61041095075

$4.11

26

o-ring 10.00x2.00 silicone

0770100020

$2.05

27

THREAD PIN DIN0913-M 6X20

0913060203

$1.49

28

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

29

COLLAR NUT M6X1 SW8

77336088106

$12.61

99

Gasket set piston 250/300

55430097000

Unavailable
