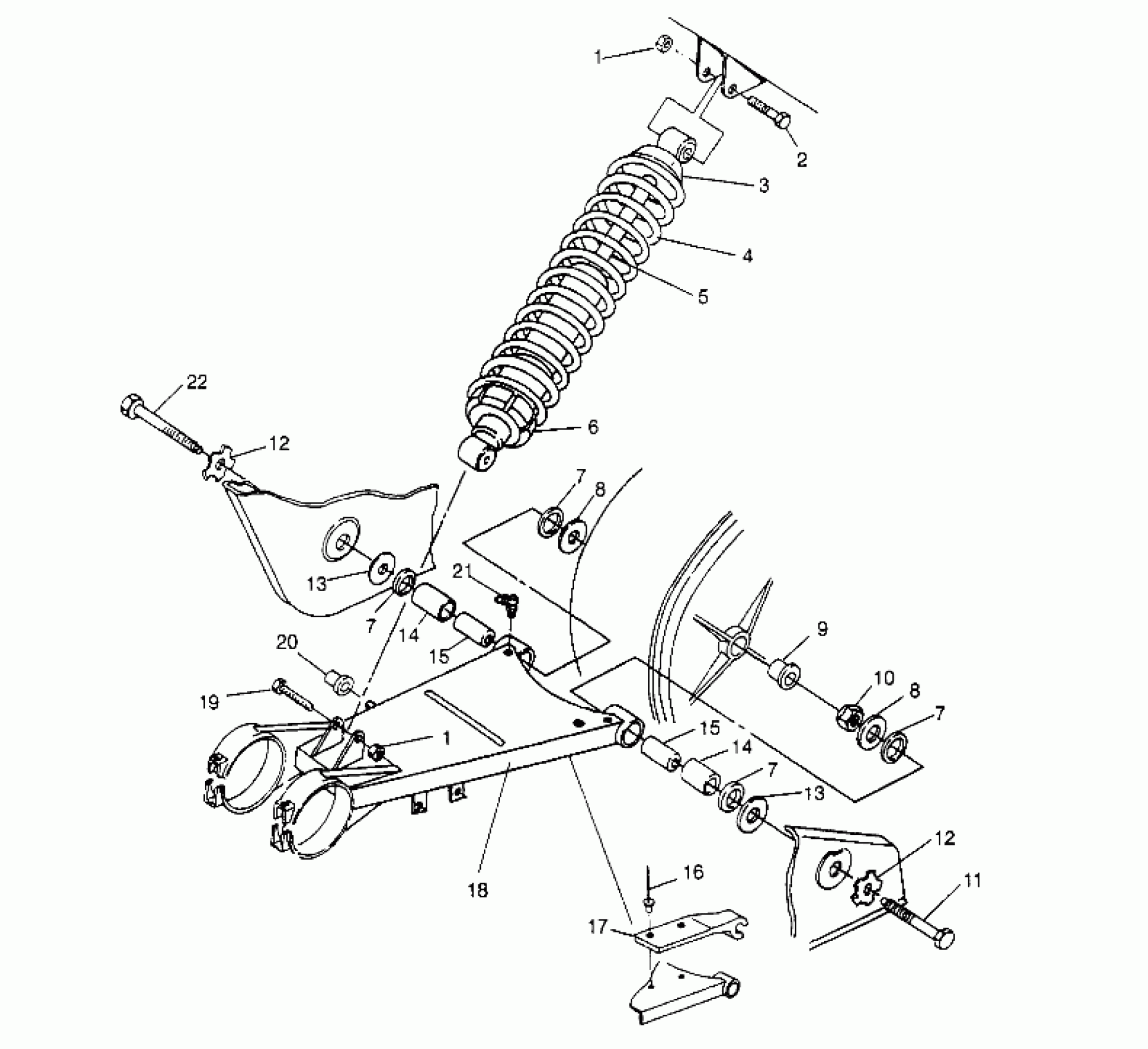

Polaris 300 6X6 - W948730 SWING ARM/SHOCK MOUNTING 6x6 300 W948730 (4926792679C003) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

2

BOLT(10)

7515415

$1.49

3

RETAINER-TOP (Top)

5220225

$10.39

4

SPRING,COIL,BLK.

7041194-067

$38.08

5

SHOCK

7041220

Unavailable

6

SPACER,SHOCK RETAINER(10)

5210953

$6.39

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

8

WASHER(10)

7555779

Unavailable

8

WASHER(10)

7555779

Unavailable

9

Support (See Ref. Pg.)

-------

Unavailable

10

NUT,CROWN LOCK(10)

7542601

Unavailable

11

BOLT, SHOULDER

7512702

Unavailable

12

PLATE,BOLT LOCK

5220958

$35.99

12

PLATE,BOLT LOCK

5220958

$35.99

13

BUSHING, MACH.(10)

7555752

Unavailable

13

BUSHING, MACH.(10)

7555752

Unavailable

14

BEARING,SWINGARM

3576512

Unavailable

14

BEARING,SWINGARM

3576512

Unavailable

15

BUSHING,SWING ARM

5010255

Unavailable

15

BUSHING,SWING ARM

5010255

Unavailable

16

RIVET(50)

7621433

$1.49

17

GUIDE, CHAIN

5431310

$32.37

18

SWINGARM, BLK. (Incl. 7, 14, 21)

1580062-067

Unavailable

19

BOLT(10)

7515438

$4.79

20

HOLDER

5130712

Unavailable

21

FITTING, LUBE.

7080438

$10.39

22

BOLT, SHOULDER

7512703

Unavailable
