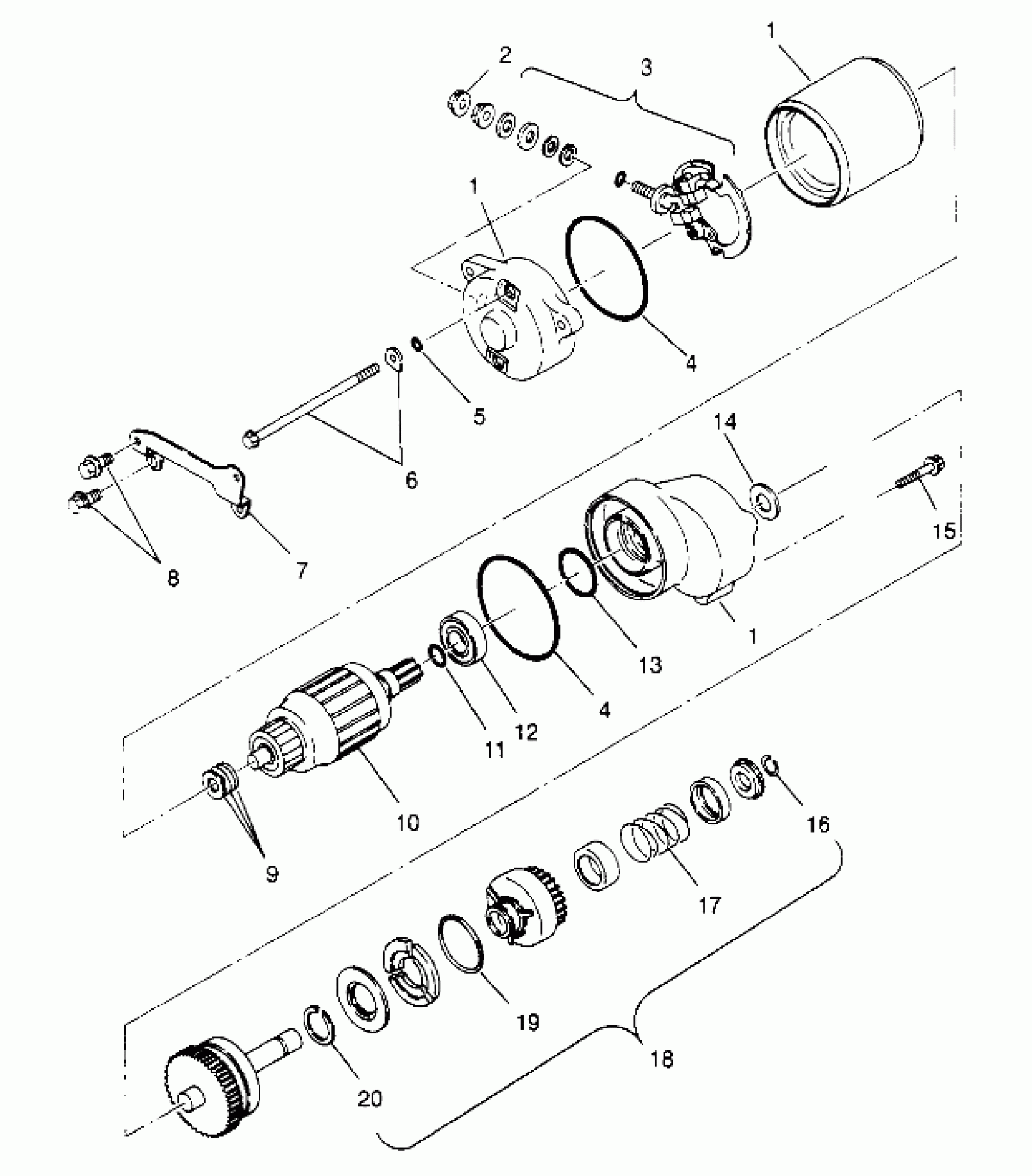

Polaris 300 6X6 - W948730 STARTING MOTOR 6x6 300 W948730 (4926792679D009) Diagram

#

Description
Price

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-8,10,12,13,15)

3084403

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-8,10,12,13,15)

3084403

Unavailable

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-8,10,12,13,15)

3084403

Unavailable

2

NUT, FLANGE(10)

3083649

$3.99

3

BRUSH,COMPL.2-POLE *

3084406

Unavailable

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

O-RING

3084408

Unavailable

6

Bolt, Through

3084407

Unavailable

7

Bracket

3083650

Unavailable

8

BOLT,(10)

3081645

Unavailable

9

Washer Set

3083754

$2.39

10

ARMATURE ASM. * (Incl. 11,12)

3084404

$207.99

11

O RING

3083934

Unavailable

12

BALL BEARING

3083777

$31.99

13

O RING

3083741

$9.37

14

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

15

BOLT&WASHER ASM.

3082038

$3.99

16

CLIP

3084409

$7.19

17

SPRING, RETURN

3084410

$2.47

18

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 14,16-20)

3083647

Unavailable

19

SPRING, WEIGHT

3084411

$15.67

20

CLIP

3084412

$9.59
