Description

Price

1

CLAMP, HOSE

3240173

Unavailable

1

CLAMP, HOSE

3240173

Unavailable

2

PIPE #1,VINYL

3084826

Unavailable

3

BOLT

3084829

Unavailable

4

WASHER(10) Substituted by 7555998

3083138

Unavailable

4

WASHER(10) Substituted by 7555998

3083138

Unavailable

5

VALVE,CHECK

3084828

Unavailable

6

SCREW-AIR VENT

3083125

Unavailable

7

PACKING(10)

3083126

$4.03

8

PUMP, OIL Substituted by 3085848 (Incl. 3-7,10-16)

3084824

Unavailable

9

SCREW&WASHER,(10)

3083783

$2.39

10

Cap

3083758

$5.75

11

SPRING-RETURN

3083123

Unavailable

12

Collar, Camshaft

3083757

$4.39

13

LEVER,CONTROL

3084827

Unavailable

14

WASHER-SPRING(10)

3083121

$299.99

15

NUT(10)

3083120

$3.19

16

O RING

3083127

Unavailable

17

SPACER #3

3083673

Unavailable

17

SPACER #2

3083672

Unavailable

17

SPACER #1

3083671

Unavailable

18

BUSHING(OIL PUMP)

3083353

$31.99

19

O RING

3083129

Unavailable

20

GEAR, SMALL Substituted by 3083429

3084825

Unavailable

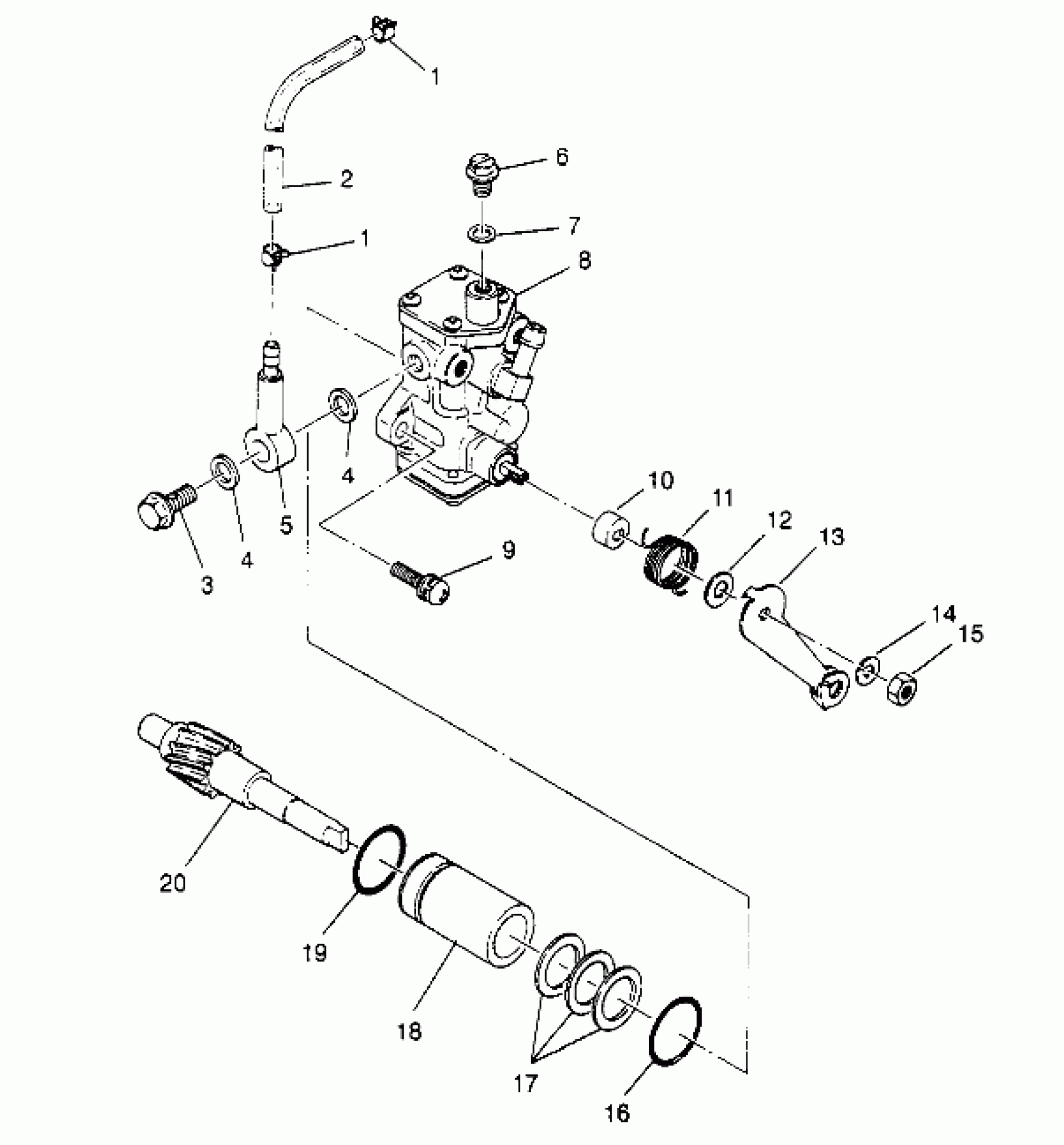

Polaris 300 6X6 - W948730 OIL PUMP 6x6 300 W948730 (4926792679D006) Diagram

CLAMP, HOSE

CLAMP, HOSE

PIPE #1,VINYL

BOLT

WASHER(10) Substituted by 7555998

WASHER(10) Substituted by 7555998

VALVE,CHECK

SCREW-AIR VENT

PACKING(10)

PUMP, OIL Substituted by 3085848 (Incl. 3-7,10-16)

SCREW&WASHER,(10)

Cap

SPRING-RETURN

Collar, Camshaft

LEVER,CONTROL

WASHER-SPRING(10)

NUT(10)

O RING

SPACER #3

SPACER #2

SPACER #1

BUSHING(OIL PUMP)

O RING

GEAR, SMALL Substituted by 3083429
