Description

Price

1

BOLT(10)

7515345

$5.56

2

LOCK WASHER(10)

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

SHIELD,R.CALIPER,BLK.

5240149-067

Unavailable

5

DESC NOT_AVAILABLE

1910162

Unavailable

6

BOLT(10)

7515522

$3.97

6

BOLT(10)

7515522

$3.97

7

WASHER(10)

7552603

$0.79

7

WASHER(10)

7552603

$0.79

8

Bolt, Shoulder (See Pg. A31, Ref. 11)

----

Unavailable

9

Plate, Bolt Lock (See Pg. A31, Ref. 12)

----

Unavailable

10

Sprocket, 13T (See Pg. A43, Ref. 46)

----

Unavailable

11

Ring, Retaining (See Pg. A43, Ref. 45)

----

Unavailable

12

BOLT,CARRIAGE(10)

7515484

Unavailable

13

SEAL, BRAKE

3610026

Unavailable

13

SEAL, BRAKE

3610026

Unavailable

14

SPACER,(10)

5210764

Unavailable

14

SHIM,.010,GEARCASE

5211065

Unavailable

14

SHIM,(.030)

5211517

Unavailable

15

BRG.ASM,O/P SHAFT

1590237

$84.99

16

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

17

NUT,FLANGE LOCK(10)

7542449

$3.97

18

Weld., Brake Disc (See Pg. A43, Ref. 39)

----

Unavailable

20

Sprocket, 11T (See Pg. A43, Ref. 41)

----

Unavailable

21

SPACER, CHAIN GUARD

5333244

Unavailable

22

Washer (See Pg. A43, Ref. 48)

----

Unavailable

23

Washer (See Pg. A43, Ref. 43)

----

Unavailable

24

Screw (See Pg. A43, Ref. 44)

----

Unavailable

25

DECAL,LUBRICATION

7074214

Unavailable

26

GUARD,CHAIN,CTR.

5431717

Unavailable

27

BOLT(10)

7515346

$5.56

28

WASHER(10)

7552606

$4.76

29

WASHER(10) Substituted by 7558402

7555770

$0.99

30

DECAL,'DEMAND-6-DRIVE'

7073856

Unavailable

31

BOLT(10)

7512269

Unavailable

31

BOLT(10)

7512269

Unavailable

32

WASHER(10)

7552605

$5.69

33

NUT, SPEED(10)

7670060

$3.97

33

NUT, SPEED(10)

7670060

$3.97

34

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

35

NUT LOCK(10)

7542403

Unavailable

36

BOLT(10)

7515472

$2.38

37

NUT(10)

7542404

$1.59

38

BOLT(10)

7515485

$3.02

39

DECAL(CPSC),BRAKE SHIELD Substituted by 7075339

7072790

Unavailable

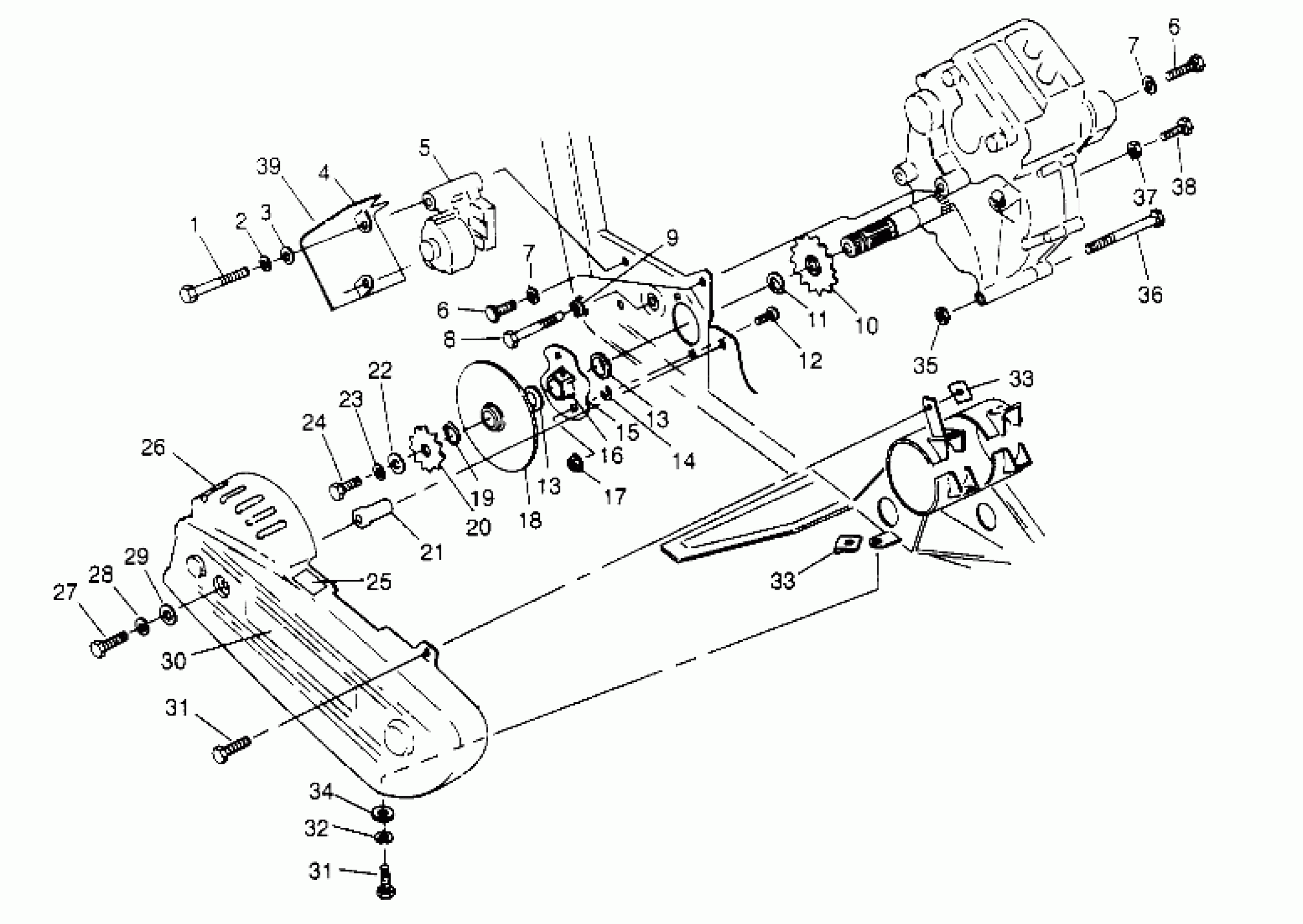

Polaris 300 6X6 - W948730 GEARCASE/BRAKE and CHAIN COVER MOUNTING 6x6 300 W948730 (4926792679C009) Diagram

BOLT(10)

LOCK WASHER(10)

WASHER-.344X.688X.063 FL-Y

SHIELD,R.CALIPER,BLK.

DESC NOT_AVAILABLE

BOLT(10)

BOLT(10)

WASHER(10)

WASHER(10)

Bolt, Shoulder (See Pg. A31, Ref. 11)

Plate, Bolt Lock (See Pg. A31, Ref. 12)

Sprocket, 13T (See Pg. A43, Ref. 46)

Ring, Retaining (See Pg. A43, Ref. 45)

BOLT,CARRIAGE(10)

SEAL, BRAKE

SEAL, BRAKE

SPACER,(10)

SHIM,.010,GEARCASE

SHIM,(.030)

BRG.ASM,O/P SHAFT

FITTING,LUBE.W/BALL CK.(10)

NUT,FLANGE LOCK(10)

Weld., Brake Disc (See Pg. A43, Ref. 39)

Sprocket, 11T (See Pg. A43, Ref. 41)

SPACER, CHAIN GUARD

Washer (See Pg. A43, Ref. 48)

Washer (See Pg. A43, Ref. 43)

Screw (See Pg. A43, Ref. 44)

DECAL,LUBRICATION

GUARD,CHAIN,CTR.

BOLT(10)

WASHER(10)

WASHER(10) Substituted by 7558402

DECAL,'DEMAND-6-DRIVE'

BOLT(10)

BOLT(10)

WASHER(10)

NUT, SPEED(10)

NUT, SPEED(10)

WSHR-FL-.312X.734X.065-Y

NUT LOCK(10)

BOLT(10)

NUT(10)

BOLT(10)

DECAL(CPSC),BRAKE SHIELD Substituted by 7075339
