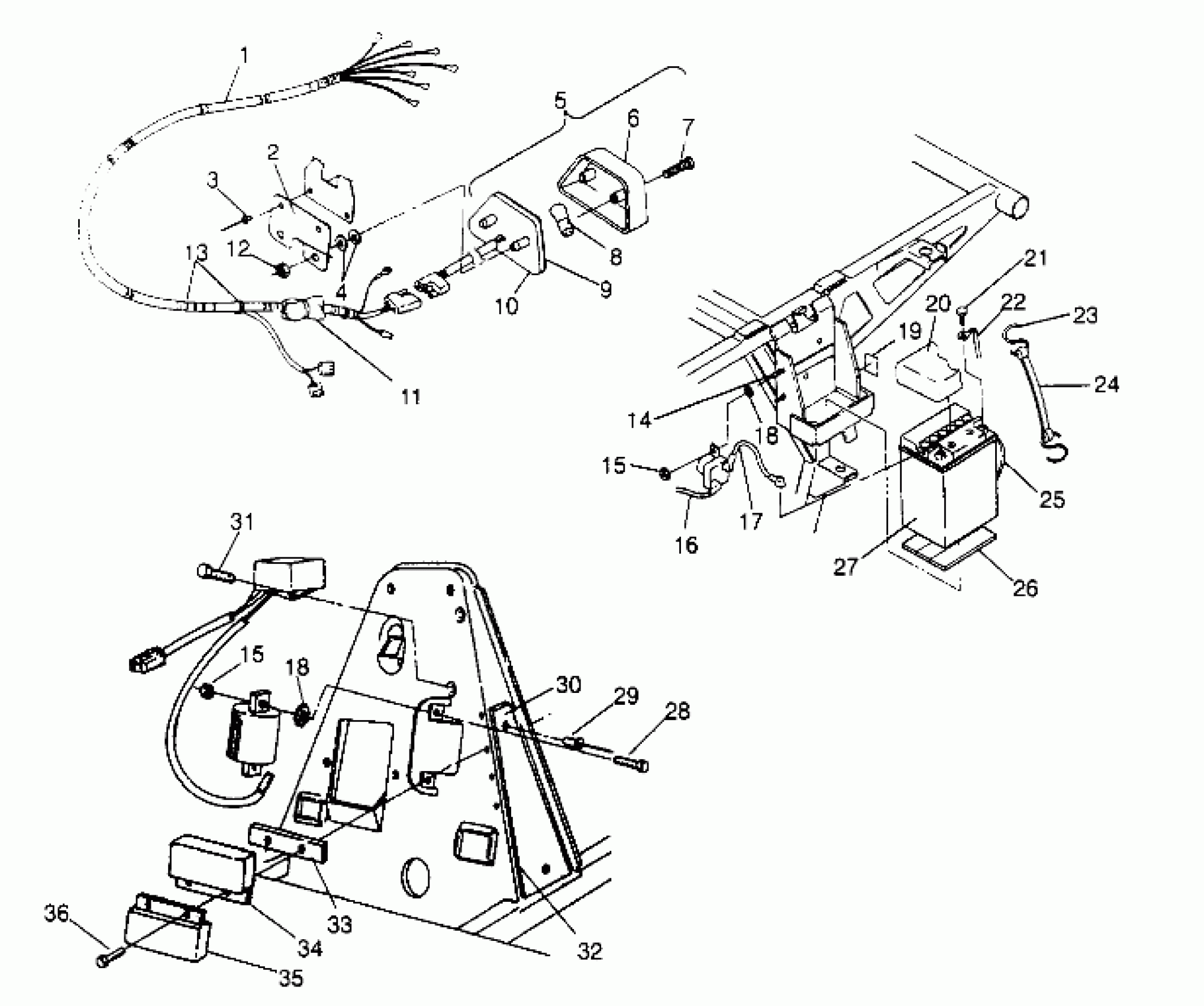

Polaris 300 6X6 - W948730 ELECTRICAL/TAILLIGHT ASSEMBLY 6x6 300 W948730 (4926792679C012) Diagram

#

Description
Price

1

HARNESS,MAIN WIRE

2460492

Unavailable

2

ISOLATOR,TAILLIGHT

5211391-067

$13.39

3

RIVET(50)

7621470

Unavailable

4

WASHER(10) Substituted by 7558301

7555776

$1.19

5

TAIL LIGHT ASM. (Incl. 6-10)

2432034

$55.56

6

LENS,TAILLIGHT

4032046

$32.37

7

Screw, Taillight

4032029

$4.76

8

BULB,TAILLIGHT

4030043

$6.46

9

GASKET,TAILLIGHT

4032045

$4.03

10

BACKING,TAILLIGHT

4032064

$83.33

11

CKT.BREAKER,20 AMP.

2434012

Unavailable

12

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.19

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

SCREW(10)

7512027

$1.19

15

NUT(10)

7541925

$0.79

15

NUT(10)

7541925

$0.79

16

CABLE,SOLENOID/STARTER

4010064

Unavailable

17

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

18

WASHER(10)

7571602

$4.76

18

WASHER(10)

7571602

$4.76

19

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

20

COVER,BATTERY

5431769

$15.37

21

BOLT,BATT,KIT(SHORT) (Short)

2200361

Unavailable

22

CABLE,BATTERY-SOLENOID

4010076

Unavailable

23

HOOK-BATT.H/D(10)

7010032

$1.59

24

STRAP,BATTERY HOLDDOWN

5410424

$4.84

25

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

26

PAD-BATTERY

5810290

$7.27

27

Battery

4140006

$99.99

28

SCREW(10)

7512007

$3.97

29

RIVET, POP(50)

7621322

$0.56

30

BOARD,TERMINAL

4040022

Unavailable

31

BOLT(10)

7512232

$1.19

32

SHIELD,TERM.BOARD

5431152

Unavailable

33

HEAT SINK

5210650

Unavailable

34

RECTIFIER, VOLTAGE

4060087

Unavailable

35

LIMITER,REV.SPEED

4060085

Unavailable

36

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17
