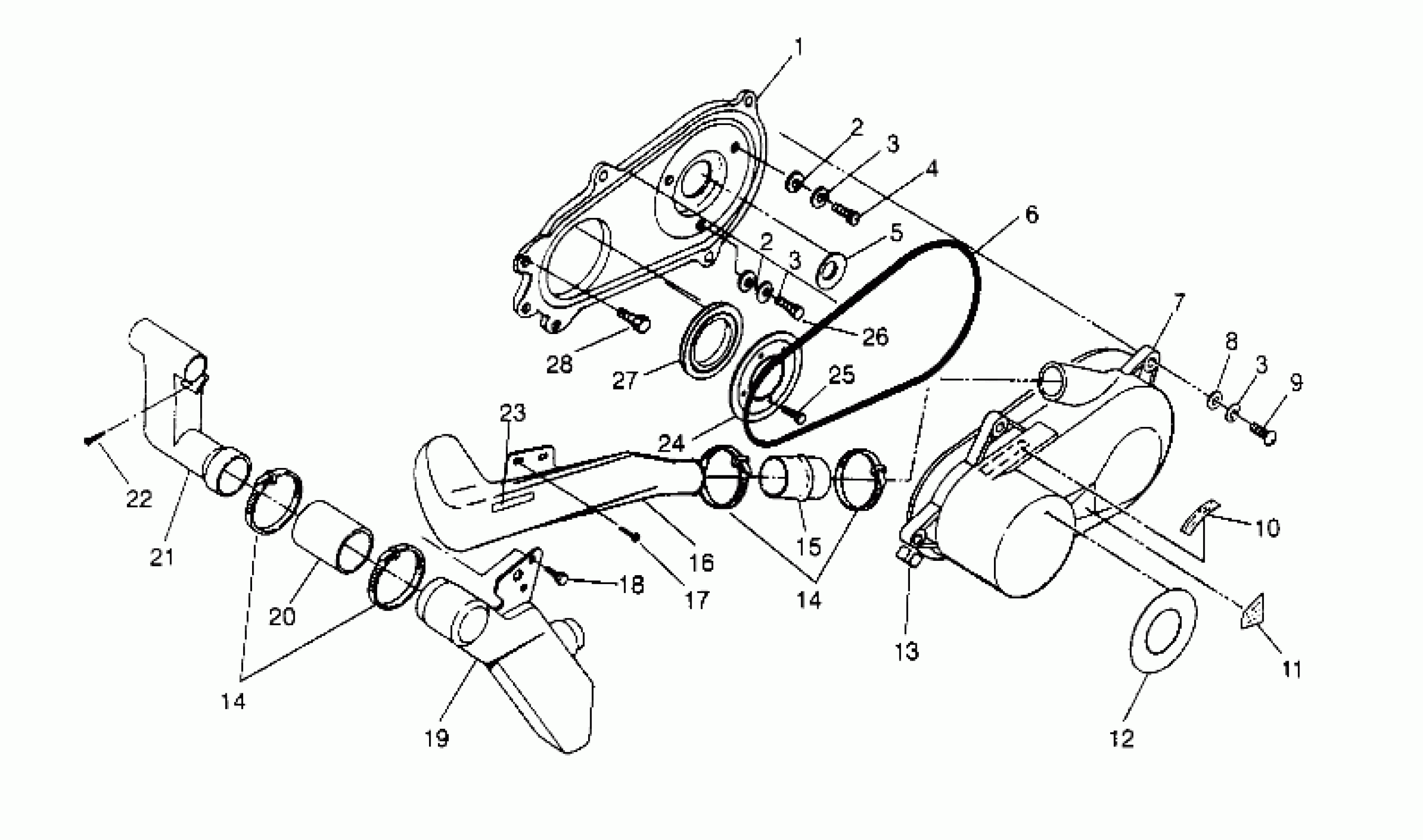

Polaris 300 6X6 - W948730 CLUTCH COVER ASSEMBLY 6x6 300 W948730 (4926792679C007) Diagram

#

Description
Price

1

COVER,CLUTCH,INNER Substituted by 2200792

5431716

$309.99

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

3

WASHER(10)

7552605

$5.69

3

WASHER(10)

7552605

$5.69

3

WASHER(10)

7552605

$5.69

4

BOLT(10)

7512276

$4.76

5

SEAL,COVER CASE

5410489

$13.75

6

SEAL,CLUTCHCOVER

5521301

$32.37

7

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$190.22

8

WASHER(10) Substituted by 7558301

7555776

$1.19

9

BOLT(10)

7512281

$3.97

10

DECAL(CPSC),CLUTCH COVER Substituted by 7074946

7072787

Unavailable

11

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

12

DECAL, PVT [No Longer Available]

7072386

Unavailable

13

CLIP,CLUTCH COVER(10)

7670051

Unavailable

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

BOOT,CLUTCH INTAKE

5410421

$11.32

16

DUCT, AIR OUTLET, CLUTCH Substituted by 5432615

5431671

Unavailable

17

SCREW(10)

7512252

Unavailable

18

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

19

DUCT,INLET DOWN TUBE

5431006

$81.75

20

BOOT, INTAKE

5410509

Unavailable

21

DUCT,INLET TOP

5431007

Unavailable

22

SCREW(10)

7512017

$4.76

23

DECAL,'DEMAND-6-DRIVE'

7073856

Unavailable

24

BRKT,RETAINER SEAL

5222877-067

Unavailable

25

Asm., Screw and Washer (See pg., Ref.)

----

Unavailable

26

SCREW(10)

7515159

$4.76

27

SEAL,COVER CASE

5410749

Unavailable

27

SEALER,10.3 OZ,SILICONE#732, Substituted by 8560054

2870661

Unavailable

28

SCREW(10)

7512222

$2.38
