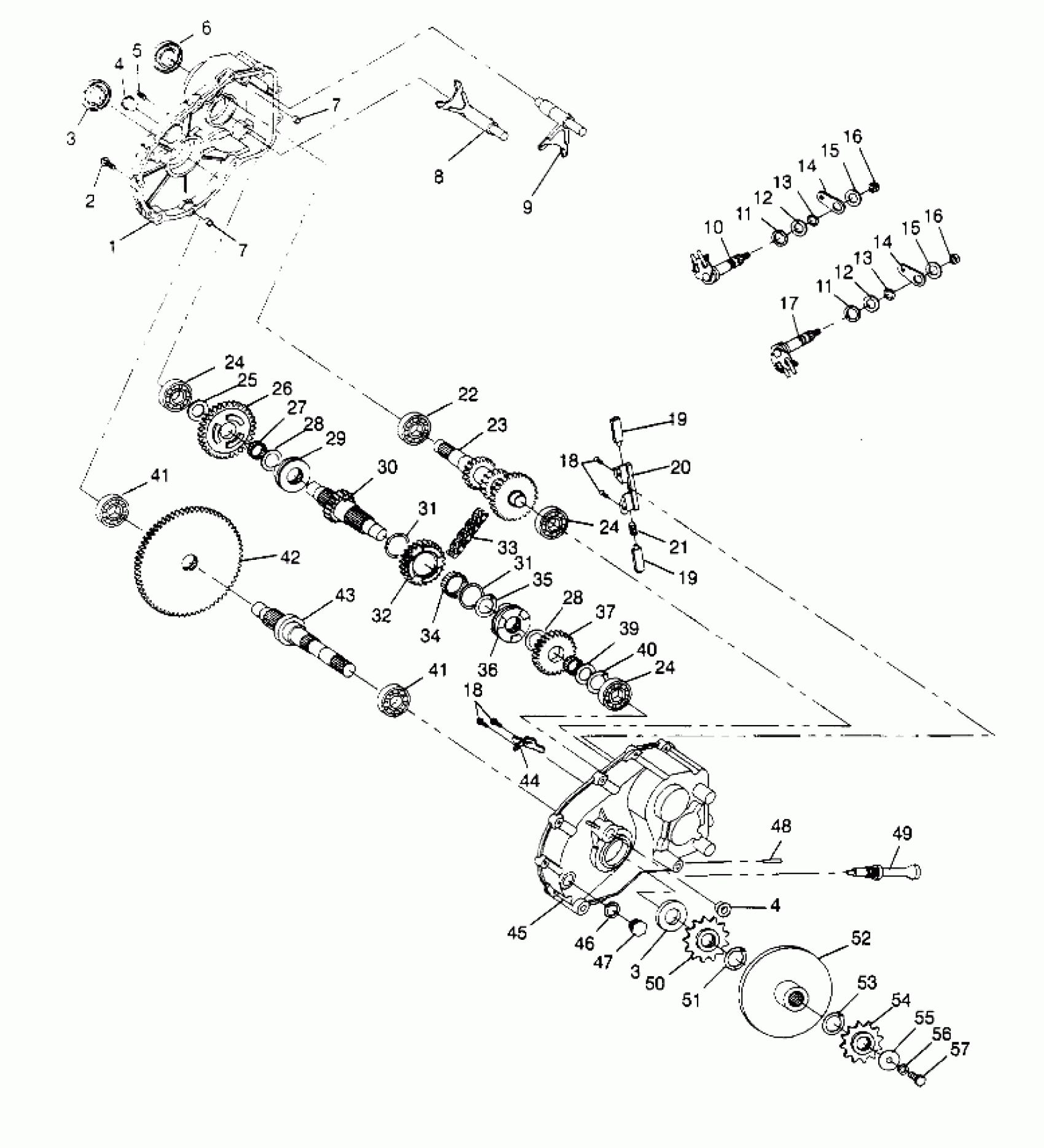

Polaris 300 4X4 - W958130 GEARCASE ASSEMBLY 4x4 300 W958130 (4930183018C008) Diagram

#

Description
Price

-

GEARCASE ASM,PRD. (Incl. 1-42)

1341146

$1,589.99

1

CASE, LH

3233002

Unavailable

2

Screw

3233026

$6.46

3

SEAL Substituted by 3233248

3233096

Unavailable

3

SEAL Substituted by 3233248

3233096

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

5

STUD

3233025

Unavailable

6

SEAL Substituted by 3233248

3233097

$30.88

7

PIPE, KNOCK

3233021

Unavailable

7

PIPE, KNOCK

3233021

Unavailable

8

SHIFTRAIL,LOW

3233022

Unavailable

9

SHIFTRAIL,HIGH/REV.

3233023

Unavailable

10

SHAFT,LOW SHIFT

3233038

Unavailable

11

O-RING Substituted by 3233548

3233044

Unavailable

11

O-RING Substituted by 3233548

3233044

Unavailable

12

Washer

3233040

$9.59

12

Washer

3233040

$9.59

13

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

13

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

14

Bellcrank

3233153

$27.99

14

Bellcrank

3233153

$27.99

15

Washer

3233054

$6.46

15

Washer

3233054

$6.46

16

Nut

3233055

Unavailable

16

Nut

3233055

Unavailable

17

SHAFT,HI/REV,SHIFT

3233039

Unavailable

18

SCREW Substituted by 3233747

3233033

Unavailable

18

SCREW Substituted by 3233747

3233033

Unavailable

19

PIN

3233031

$32.11

19

PIN

3233031

$32.11

20

BRACKET

3233030

$21.43

21

Spring

3233032

$12.94

22

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

23

SHAFT, INPUT

3233122

Unavailable

24

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

24

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

24

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

25

WASHER

3233007

Unavailable

26

GEAR, 33T

3233125

Unavailable

27

BEARING,NEEDLE

3233009

$39.99

28

Washer

3233010

Unavailable

28

Washer

3233010

Unavailable

29

DOG,ENGAGEMENT,LOW

3233126

Unavailable

30

SHAFT,REVERSE

3233175

$369.99

31

WASHER

3233012

Unavailable

31

WASHER

3233012

Unavailable

32

SPROCKET, 24T

3233127

Unavailable

33

CHAIN,SILENT,34P

3233036

Unavailable

34

BEARING, NEEDLE

3233014

$43.99

35

RING,RETAINING

3233029

$5.59

36

DOG,ENGAGEMENT,HI/REV.

3233128

Unavailable

37

GEAR, 25T

3233129

Unavailable

39

Washer

3233176

$9.59

40

RING,RETAINING

3233177

$6.39

41

BEARING

3233020

$47.99

41

BEARING

3233020

$47.99

42

GEAR, 65T

3233130

$214.75

43

SHAFT,OUTPUT

3233123

Unavailable

44

DEFLECTOR,OIL

3233043

$13.19

45

CASE, RH

3233003

Unavailable

46

Washer

3233035

Unavailable

47

PLUG,OIL DRAIN Substituted by 3233448

3233028

$23.81

48

Vent

3233037

Unavailable

49

DIPSTICK Substituted by 3233115

3233034

Unavailable

50

SPKT,13T,SPLINED

3221041

$43.99

51

RING,SNAP(10)

7710434

$3.99

52

DISC ASM,BRAKE

1910177

Unavailable

53

RING,RETAINING(10)

7710433

$4.79

54

SPKT, 11T

3221058

$74.99

55

WASHER FLAT(10)

7555701

$3.99

56

LOCK WASHER(10)

7552901

$1.49

57

BOLT(10)

7515321

$1.49
