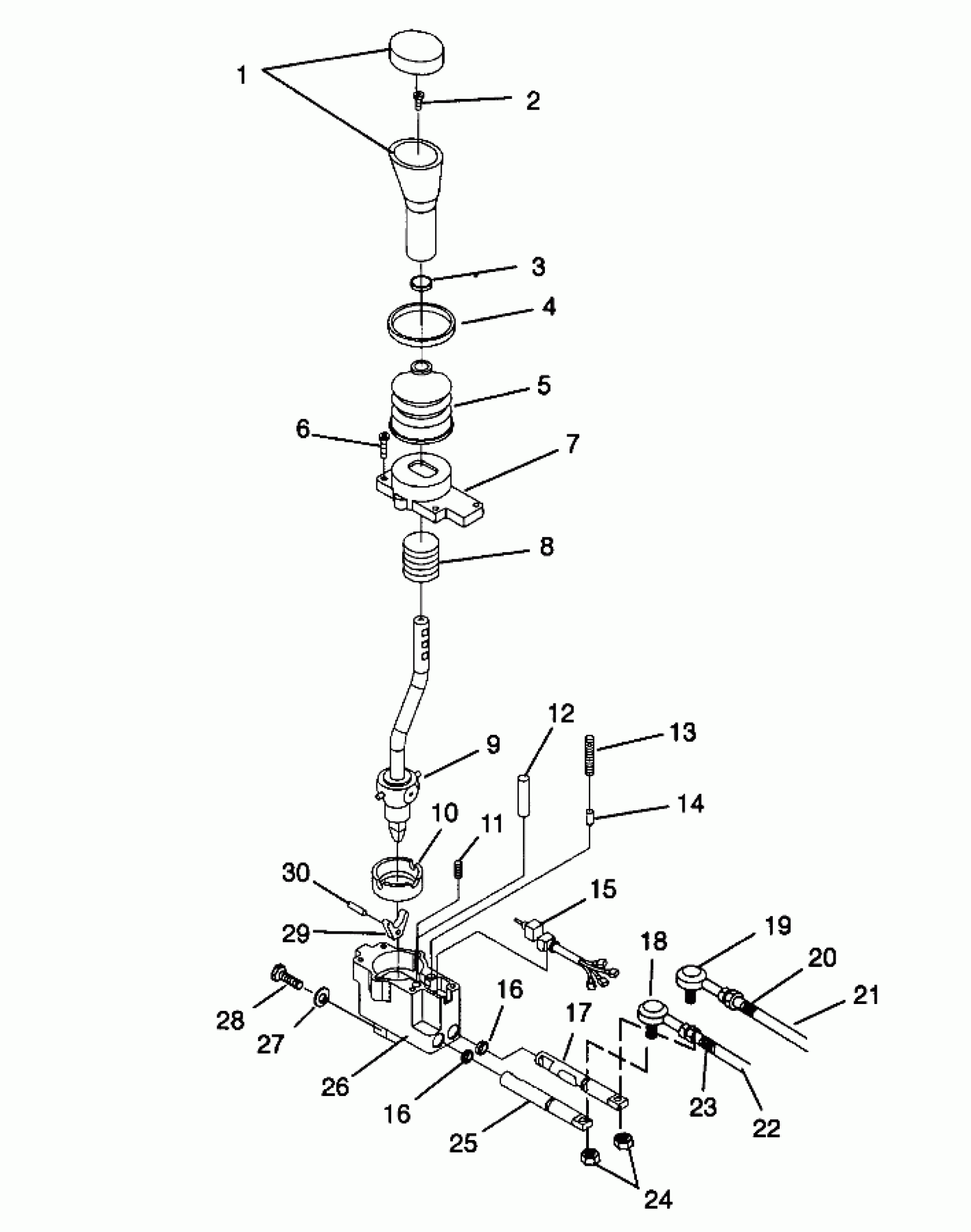

Polaris 300 4X4 - W958130 GEAR SELECTOR 4x4 300 W958130 (4930183018C007) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR (Incl. 1-17, 25, 26, 29, 30)

1341133

Unavailable

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

$49.99

2

SCREW

3233079

Unavailable

3

Strap, Wire

3233131

$9.70

4

CLAMP

3233132

Unavailable

5

BOOT,GEAR SELECTOR Substituted by 3233368

3233133

$74.04

6

SCREW Substituted by 3233498

3233085

Unavailable

7

COVER,GEAR SELECTOR

3233081

$87.19

8

SPRING,HOLDING

3233158

Unavailable

9

HANDLE SUBASSY.

3233161

Unavailable

10

CUP,BEARING

3233063

$15.99

11

SPRING,CENTERING

3233083

Unavailable

12

PIN, STOP

3233062

Unavailable

13

SPRING,DETENT

3233069

Unavailable

14

BULLET,DETENT

3233060

$64.99

15

SWITCH,GEAR SELECTOR Substituted by 3233371

3233138

$309.99

16

O-RING

3233076

$6.39

16

O-RING

3233076

$6.39

17

SLIDE,HIGH/REV.

3233088

Unavailable

18

ROD END, RH Substituted by 7061014

7060142

$65.33

19

ROD END, LH Substituted by 7061013

7060141

$65.33

20

NUT(10)

7546702

$1.49

21

ROD,SHIFT-LINK,HIGH

5020748

Unavailable

22

ROD,SHIFT-LINK,LOW

5020749

Unavailable

23

NUT(10)

7546701

$3.99

24

NUT(10) Substituted by 7546703

7546707

Unavailable

25

SLIDE,LOW

3233089

Unavailable

26

BODY,GEAR SELECTOR

3233082

$103.19

27

WASHER(10)

7552605

$5.27

28

BOLT(10)

7512269

Unavailable

29

INTERLOCK,BUTTERFLY

3233084

Unavailable

30

PIN,INTERLOCK

3233070

Unavailable
