Description

Price

1

Cage, Roll

3250028

$218.56

2

ROLLS

3250010

$35.99

3

SPRING,GARTER

3250032

$17.59

4

SPACER

3250026

Unavailable

5

CAM

3250027

Unavailable

6

BOLT(10)

7515321

$1.49

7

DISC, BRAKE

5211325

$76.89

8

SEAL, FR. HUB

3610019

$35.99

9

Plate, Armature

5211148

$23.99

10

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281

1520214

$354.99

11

BRG,TAPER.ROLL.CONE

3554506

$31.99

11

BRG,TAPER.ROLL.CONE

3554506

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

12

BRG,TAPER,ROLL CUP

3554507

$31.99

13

HUB ASM,W/BRG.RACE (Incl. 8, 12, 14)

1520182

Unavailable

14

STUD(10)

7515523

$3.19

15

PLUG,PIPE

7052045

$12.79

16

TIRE,FR(22X8-10) (22x8x10)

5410480

Unavailable

17

VALVE-RIM

1525017

$5.59

18

RIM,FRT,(SILVER)

1520175-117

Unavailable

19

WASHER(10)

7555903

Unavailable

20

NUT,LH THREAD (See Footnote)

7543204

Unavailable

20

NUT,RH THREAD (See Footnote)

7543201

Unavailable

21

O RING

5410470

$2.41

22

CAP, HUB

5431368

$23.99

23

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

24

RING,RETAINING(10)

7710436

$4.79

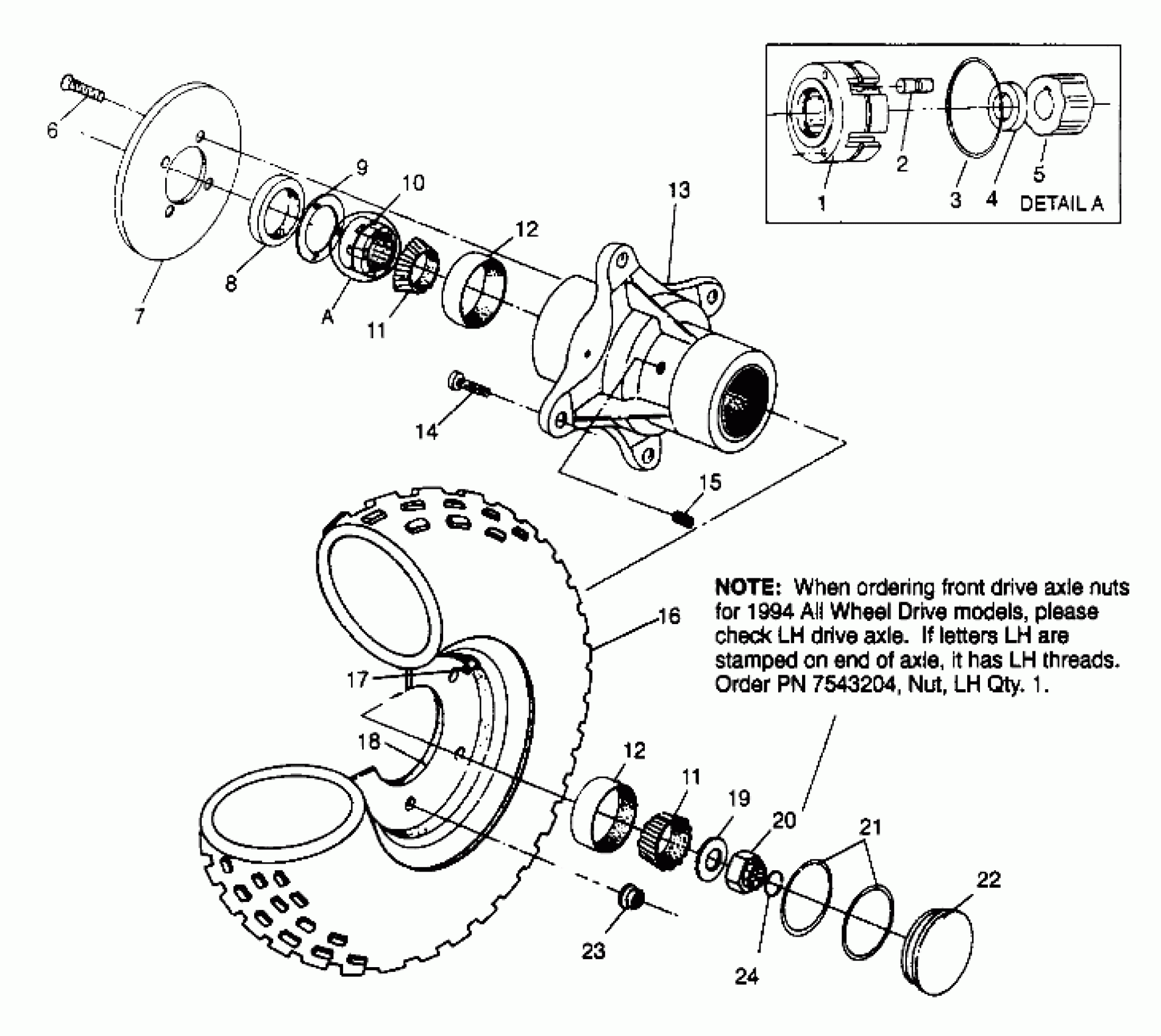

Polaris 300 4X4 - W958130 FRONT WHEEL ASSEMBLY 4x4 300 W958130 (4930183018B006) Diagram

Cage, Roll

ROLLS

SPRING,GARTER

SPACER

CAM

BOLT(10)

DISC, BRAKE

SEAL, FR. HUB

Plate, Armature

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281

BRG,TAPER.ROLL.CONE

BRG,TAPER.ROLL.CONE

BRG,TAPER,ROLL CUP

BRG,TAPER,ROLL CUP

HUB ASM,W/BRG.RACE (Incl. 8, 12, 14)

STUD(10)

PLUG,PIPE

TIRE,FR(22X8-10) (22x8x10)

VALVE-RIM

RIM,FRT,(SILVER)

WASHER(10)

NUT,LH THREAD (See Footnote)

NUT,RH THREAD (See Footnote)

O RING

CAP, HUB

NUT-HXFL-3/8-24 B ZTB P-A

RING,RETAINING(10)
