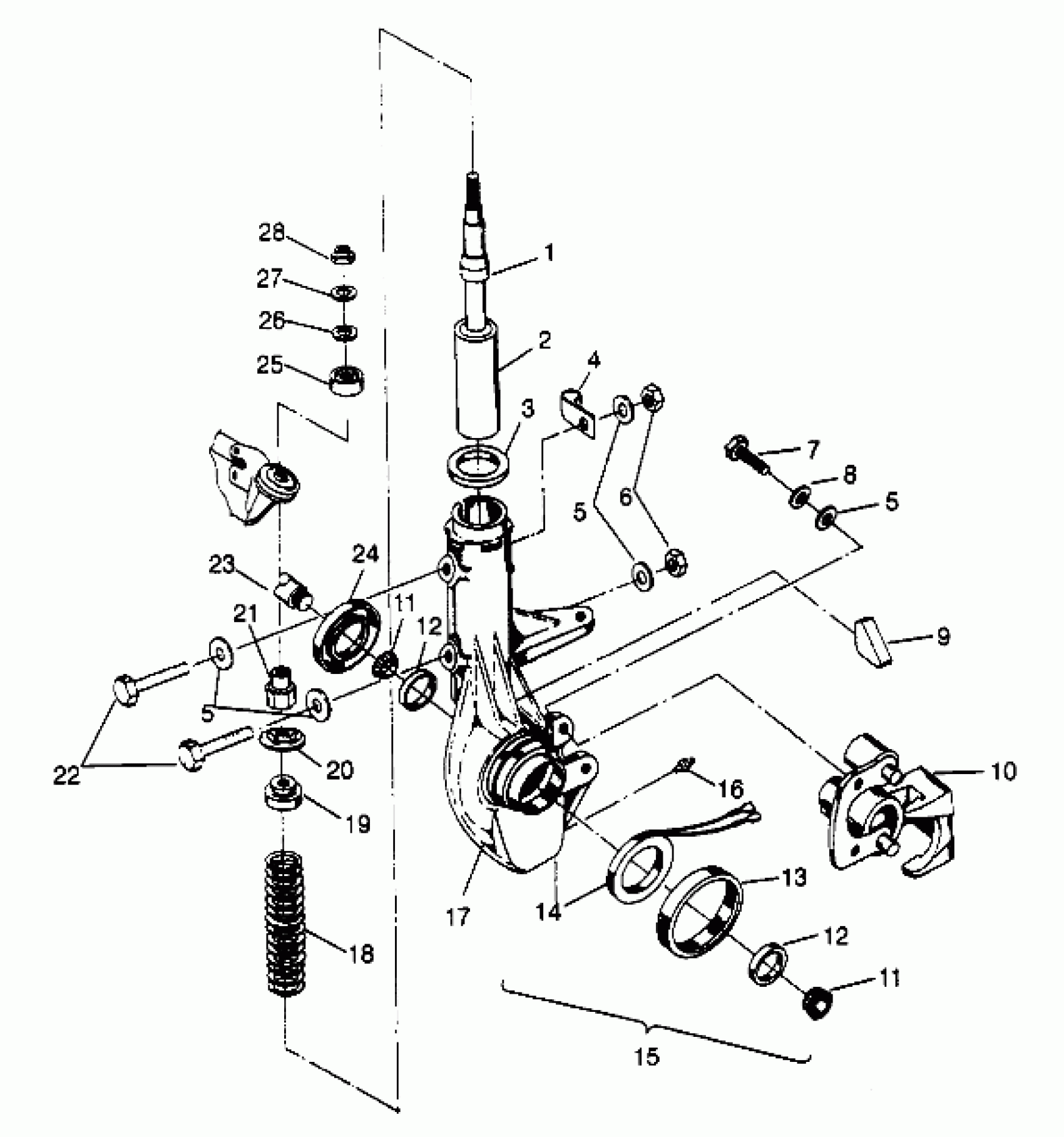

Polaris 300 4X4 - W958130 FRONT STRUT ASSEMBLY 4x4 300 W958130 (4930183018B005) Diagram

#

Description
Price

1

BUMPER, RUBBER

5410429

Unavailable

2

STRUT ASM,FRONT,25MM. Substituted by 7041451

7041449

$68.79

3

WASHER-2.06X2.62X.105-Y

5211115

$3.97

4

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.14

5

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

5

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

5

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

6

NUT FLEX-LOC(10)

7542303

$6.35

7

SCREW, CAP(10)

7512365

$1.19

8

LOCK WASHER(10)

7552901

$1.19

9

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

10

CALIPER ASM,RH BRAKE Substituted by 1910174

1910075

Unavailable

11

BEARING,TAPERED ROLLER

3554509

$23.81

11

BEARING,TAPERED ROLLER

3554509

$23.81

12

BRG,TAPER,ROLL CUP

3554507

$31.75

12

BRG,TAPER,ROLL CUP

3554507

$31.75

13

SLEEVE,STRUT HUB SEAL

5222193

$64.75

14

COIL,MAGNETIC,HVY. Substituted by 4170016

4170005

$129.51

15

KIT, HUBSTRUT, LH

2200611

Unavailable

15

KIT, HUBSTRUT, RH

2200612

Unavailable

16

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

17

SUPPORT,LH HUB STRUT [No Longer Available]

5130702

Unavailable

17

SUPPORT,RH HUB STRUT [No Longer Available]

5130703

Unavailable

18

SPRING,COIL,B.GRN.

7041238-195

Unavailable

19

RETAINER,SPRING,TOP

5220602

Unavailable

20

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

$10.51

21

SPACER,THREADED

5130668

$27.78

22

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.76

23

Asm., Drive Shaft w/Sleeve (See Pg. A18, Ref. 11)

----

Unavailable

24

SEAL, HUB STRUT

3610028

$32.37

25

PIVOT BALL, TOP Substituted by 5432872

5430806

$10.51

26

SPACER-RUBBER

5810291

$3.97

27

WASHER(10)

7555749

$1.19

28

NUT,FLEX LOC(10)

7542507

Unavailable
