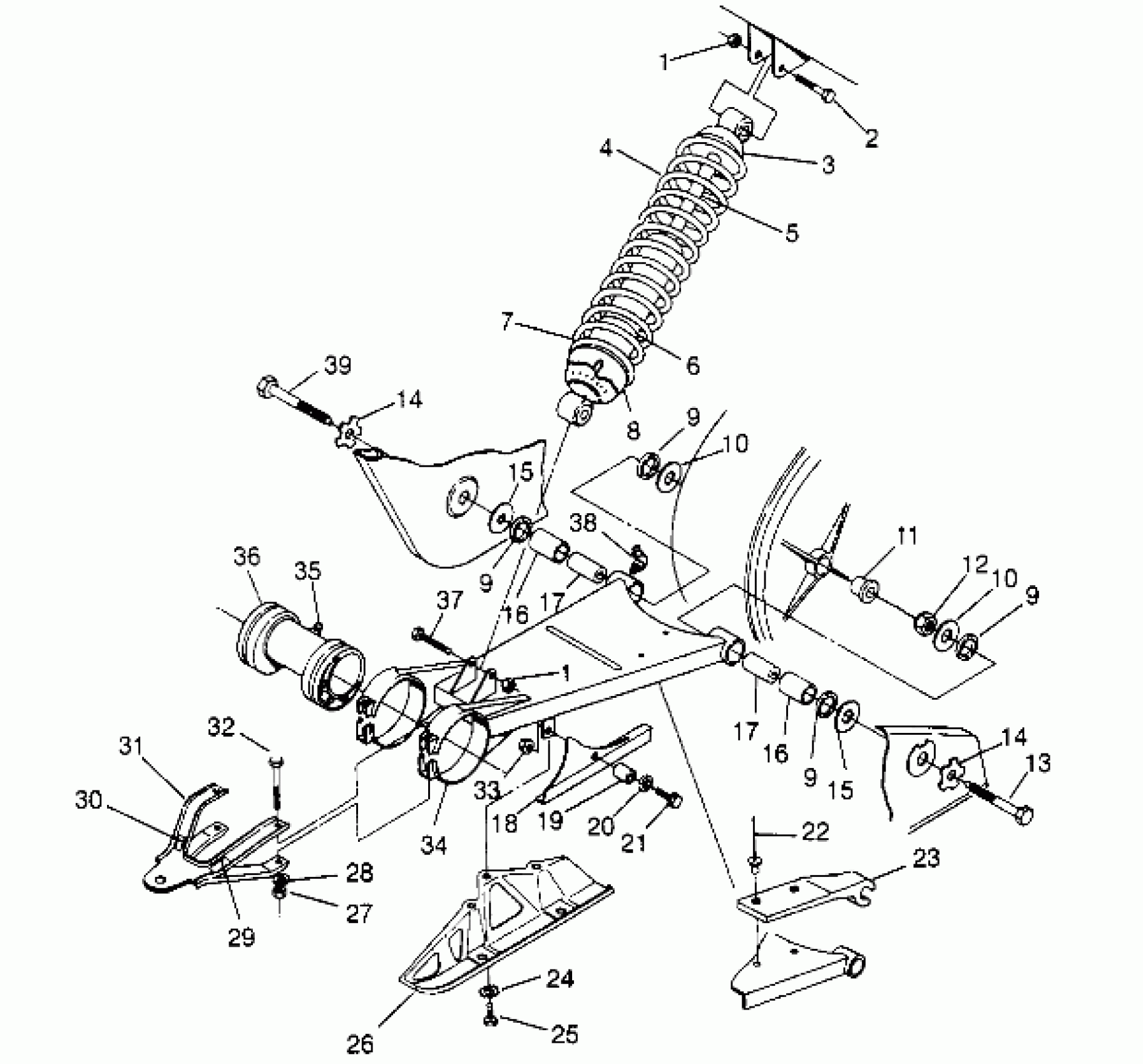

Polaris 300 4X4 - W948130 SWING ARM/SHOCK MOUNTING 4x4 300 W948130 (4926762676B013) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.19

1

NUT-LOCK(10)

7542439

$1.19

2

BOLT(10)

7515415

$1.19

3

RETAINER, SHOCK

5222118

$10.32

4

SPRING,COMP,REAR

7041204-067

$64.99

5

SHOCK, REAR Substituted by 7041448

7041218

$168.87

6

SLEEVE,SPRING PROTECTOR

5431032

$36.41

7

ADAPTER,SPRING,SEAT

5630351

Unavailable

8

CAM,ADJUSTING SPRING

5630334

$36.41

9

SEAL,OIL

3610016

$28.32

9

SEAL,OIL

3610016

$28.32

9

SEAL,OIL

3610016

$28.32

9

SEAL,OIL

3610016

$28.32

10

WASHER(10)

7555779

Unavailable

10

WASHER(10)

7555779

Unavailable

11

Bushing, Pivot (See Pg. A35, Ref. 4)

----

Unavailable

12

NUT,CROWN LOCK(10)

7542601

Unavailable

13

BOLT, SHOULDER

7512702

Unavailable

14

PLATE,BOLT LOCK

5220958

$36.41

14

PLATE,BOLT LOCK

5220958

$36.41

15

BUSHING, MACH.(10)

7555752

$1.62

15

BUSHING, MACH.(10)

7555752

$1.62

16

BEARING

3576507

Unavailable

16

BEARING

3576507

Unavailable

17

BUSHING,SWING ARM

5010255

Unavailable

17

BUSHING,SWING ARM

5010255

Unavailable

18

GUARD, CHAIN

5430776

$36.41

19

Bushing

5332828

$9.70

20

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

21

SCREW-FLANGED(10)

7515304

$5.56

22

RIVET(50)

7621433

$1.19

23

GUIDE, CHAIN

5431310

$32.37

24

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

25

SCREW(10)

7512252

Unavailable

26

GUARD, SWING ARM

1040166-067

Unavailable

27

NUT, LOCK,(10)

7542503

$10.32

28

WASHER(10)

7555883

$3.97

29

DECAL,CHAIN TENSION Substituted by 7074752

7074177

Unavailable

30

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

31

KIT, ATV HITCH Substituted by 2873036

2200472

Unavailable

32

BOLT(10)

7512576

$7.94

33

NUT LOCK(10)

7542321

$1.19

34

ARM, SWING (Incl. 9, 16, 38)

1580048-067

Unavailable

35

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

36

HOUSING, AXLE

5130663

Unavailable

37

BOLT(10)

7515438

$4.76

38

FITTING, LUBE.

7080438

$10.32

39

BOLT, SHOULDER

7512701

$23.81
