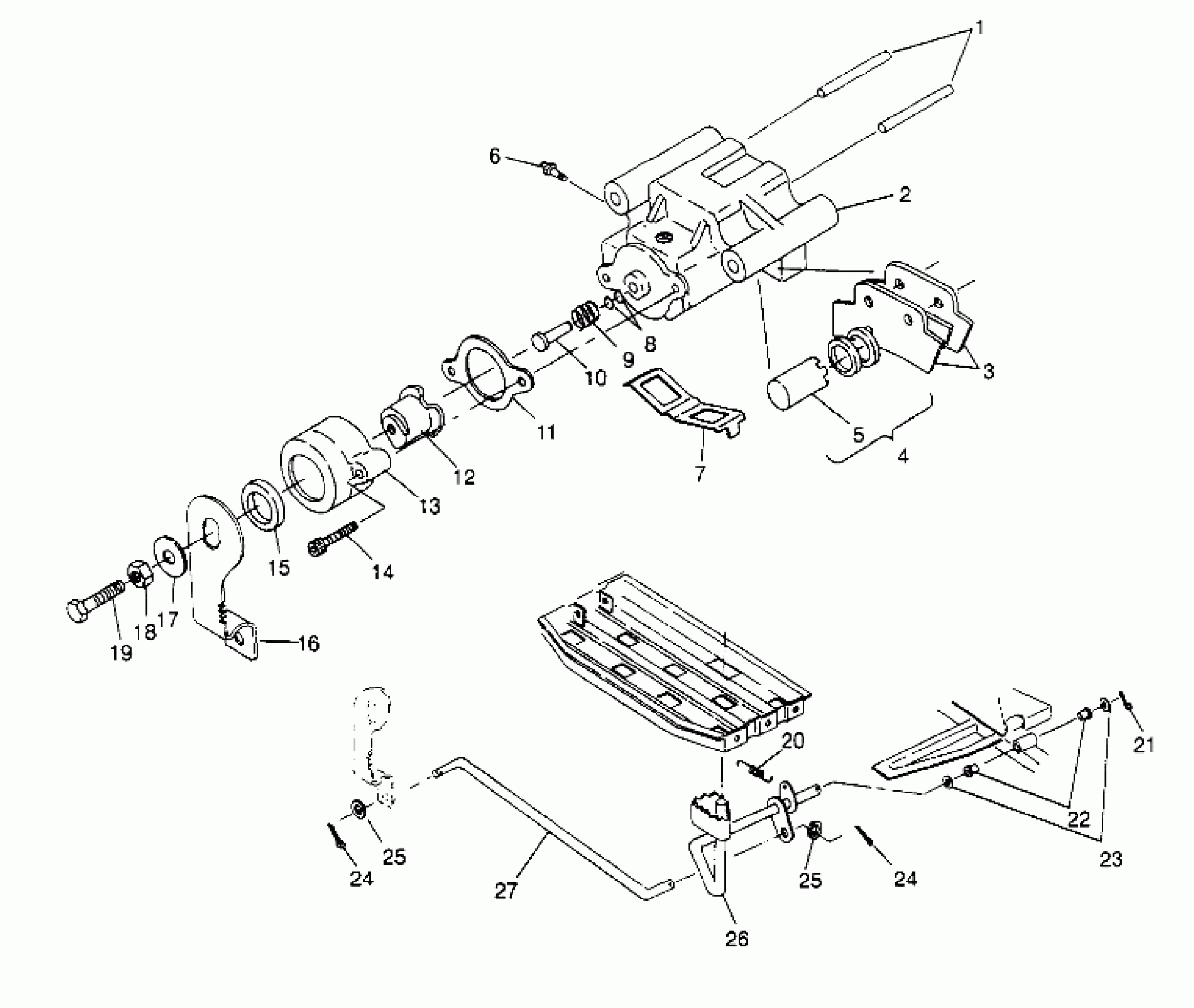

Polaris 300 4X4 - W948130 REAR BRAKE ASSEMBLY 4x4 300 W948130 (4926762676C004) Diagram

#

Description
Price

1

PIN, DOWEL(10)

7661820

$13.99

2

CALIPER,BRAKE,MACH. Substituted by 5131117

5130946

Unavailable

3

KIT,BRAKEPAD,REAR

2200464

$66.65

4

KIT-PISTON & SEAL (Incl.-5)

2200463

$97.76

5

PISTON,BRAKE Substituted by 2200463

5020667

$97.76

6

SCREW,BLEEDER

7080352

$3.17

7

SPRING,ANTI-RATTLE

5222232

Unavailable

8

O RING-.364X.504X.07

5410542

$4.84

9

SPRING,BRAKE,COMP.

7041219

Unavailable

10

PIN,BRAKE CALIPER

5020666

Unavailable

11

GASKET, BRAKE

5830009

Unavailable

12

RAMP,MOVEABLE BRAKE Substituted by 2200905

5630458

Unavailable

13

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

14

SCREW(10)

7512173

Unavailable

15

SEAL, BRAKE

3610026

Unavailable

16

ARM,BRAKE CALIPER

5240624

Unavailable

17

WASHER, SPRING(10)

7555828

Unavailable

18

NUT(10)

7542129

$4.76

19

BOLT

7515145

Unavailable

20

SPRING-EXHAUST(10)

7042029

$5.65

21

COTTER PIN(10)

7661401

$0.79

22

BUSHING-PEDAL PIVOT

5431107

$8.73

23

WASHER THRUST(10)

7558702

$1.59

24

PIN COTTER(10)

7661203

$1.19

24

PIN COTTER(10)

7661203

$1.19

25

WASHER(10)

7555806

$0.79

25

WASHER(10)

7555806

$0.79

26

FOOTBRAKE,BLK.

1910144-067

Unavailable

27

ROD, BRAKE

5224531

$51.59
