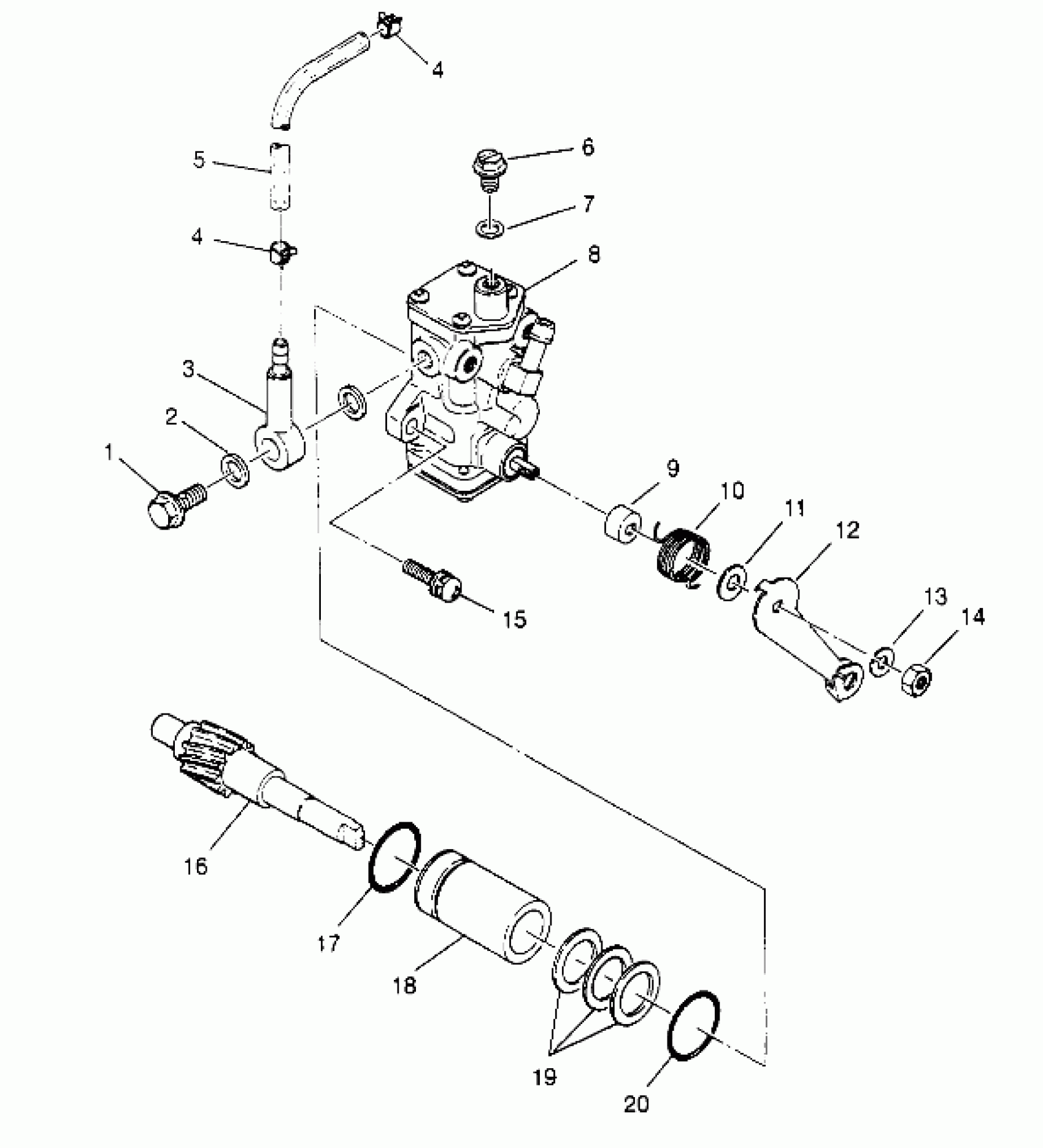

Polaris 300 4X4 - W948130 OIL PUMP ASSEMBLY 4x4 300 W948130 (4926762676D003) Diagram

#

Description
Price

1

BOLT

3084829

Unavailable

2

WASHER(10) Substituted by 7555998

3083138

Unavailable

3

VALVE,CHECK

3084828

Unavailable

4

CLAMP, HOSE

3240173

Unavailable

4

CLAMP, HOSE

3240173

Unavailable

5

PIPE #1,VINYL

3084826

Unavailable

6

SCREW-AIR VENT

3083125

Unavailable

7

PACKING(10)

3083126

$4.03

8

PUMP, OIL Substituted by 3085848 (Incl. 1-3,6,7,9-14,20)

3084824

Unavailable

9

Cap

3083758

$5.75

10

SPRING-RETURN

3083123

Unavailable

11

Collar, Camshaft

3083757

$4.39

12

LEVER,CONTROL

3084827

Unavailable

13

WASHER-SPRING(10)

3083121

$299.99

14

NUT(10)

3083120

$3.19

15

SCREW&WASHER,(10)

3083783

$2.39

16

GEAR, SMALL Substituted by 3083429

3084825

Unavailable

17

O RING

3083129

Unavailable

18

BUSHING(OIL PUMP)

3083353

$31.99

19

SPACER #3

3083673

Unavailable

19

SPACER #2

3083672

Unavailable

19

SPACER #1

3083671

Unavailable

20

O RING

3083127

Unavailable
