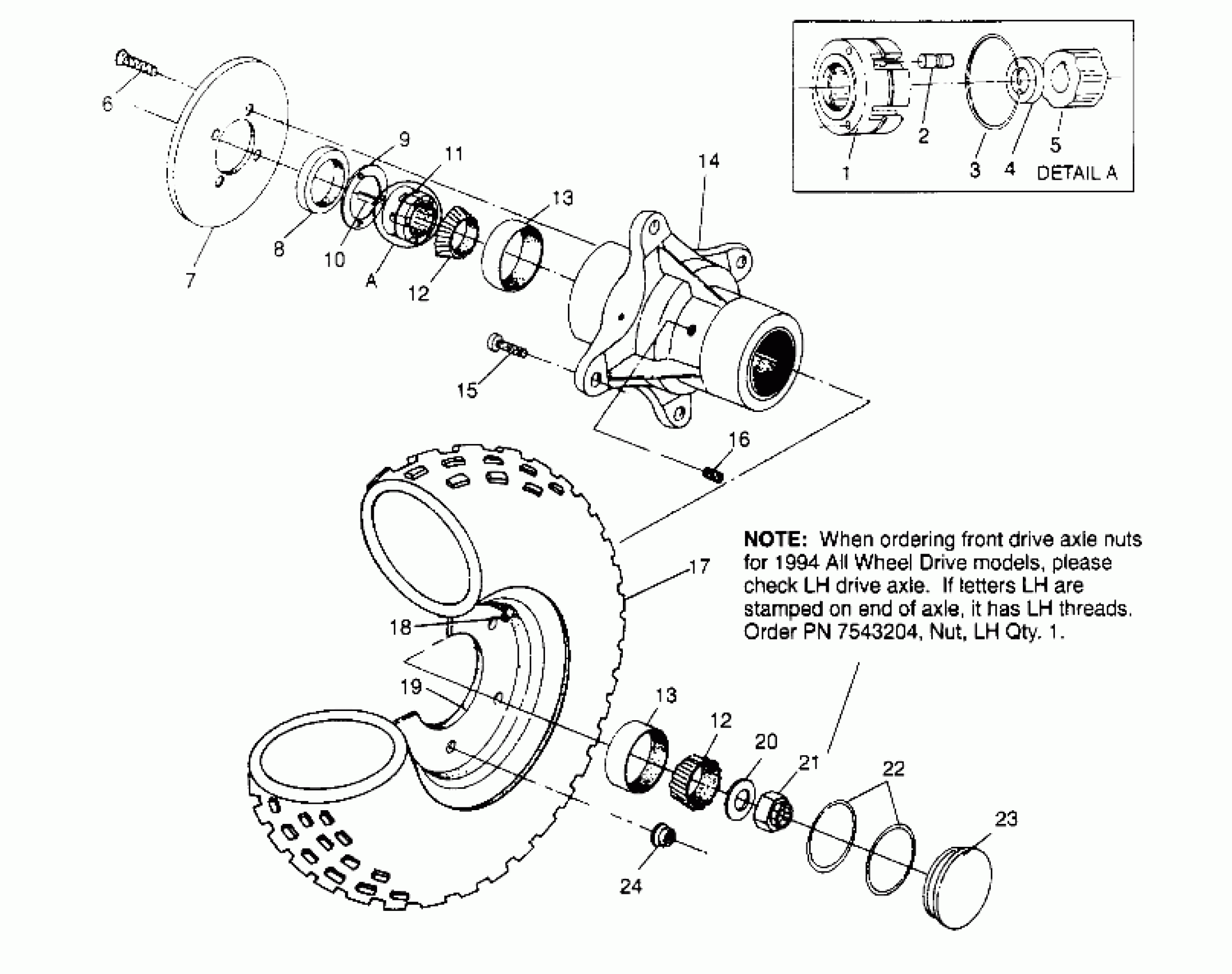

Polaris 300 4X4 - W948130 FRONT WHEEL ASSEMBLY 4x4 300 W948130 (4926762676B005) Diagram

#

Description
Price

1

Cage, Roll

3250028

$218.56

2

ROLLS

3250010

$35.99

3

SPRING, GARTER

3250022

Unavailable

4

SPACER

3250026

Unavailable

5

CAM

3250027

Unavailable

6

BOLT(10)

7515321

$1.49

7

DISC, BRAKE

5211325

$76.89

8

SEAL, FR. HUB

3610019

$35.99

9

Plate, Armature

5211148

$23.99

10

KEY

7721115

Unavailable

11

CLUTCH ASM,F.HUB,ELEC/MECH.

1520190

$339.99

12

BRG,TAPER.ROLL.CONE

3554506

$31.99

12

BRG,TAPER.ROLL.CONE

3554506

$31.99

13

BRG,TAPER,ROLL CUP

3554507

$31.99

13

BRG,TAPER,ROLL CUP

3554507

$31.99

14

HUB ASM,W/BRG.RACE (Incl. 8,13,15)

1520182

Unavailable

15

STUD(10)

7515523

$3.19

16

PLUG,PIPE

7052045

$12.79

17

TIRE,FR(22X8-10) (22x8x10)

5410480

Unavailable

18

VALVE-RIM

1525017

$5.59

19

RIM,FRT,(SILVER)

1520175-117

Unavailable

20

WASHER(10)

5211101

Unavailable

21

NUT,RH THREAD (See Footnote)

7543201

Unavailable

22

O RING

5410470

$2.41

23

CAP, HUB

5431368

$23.99

24

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59
