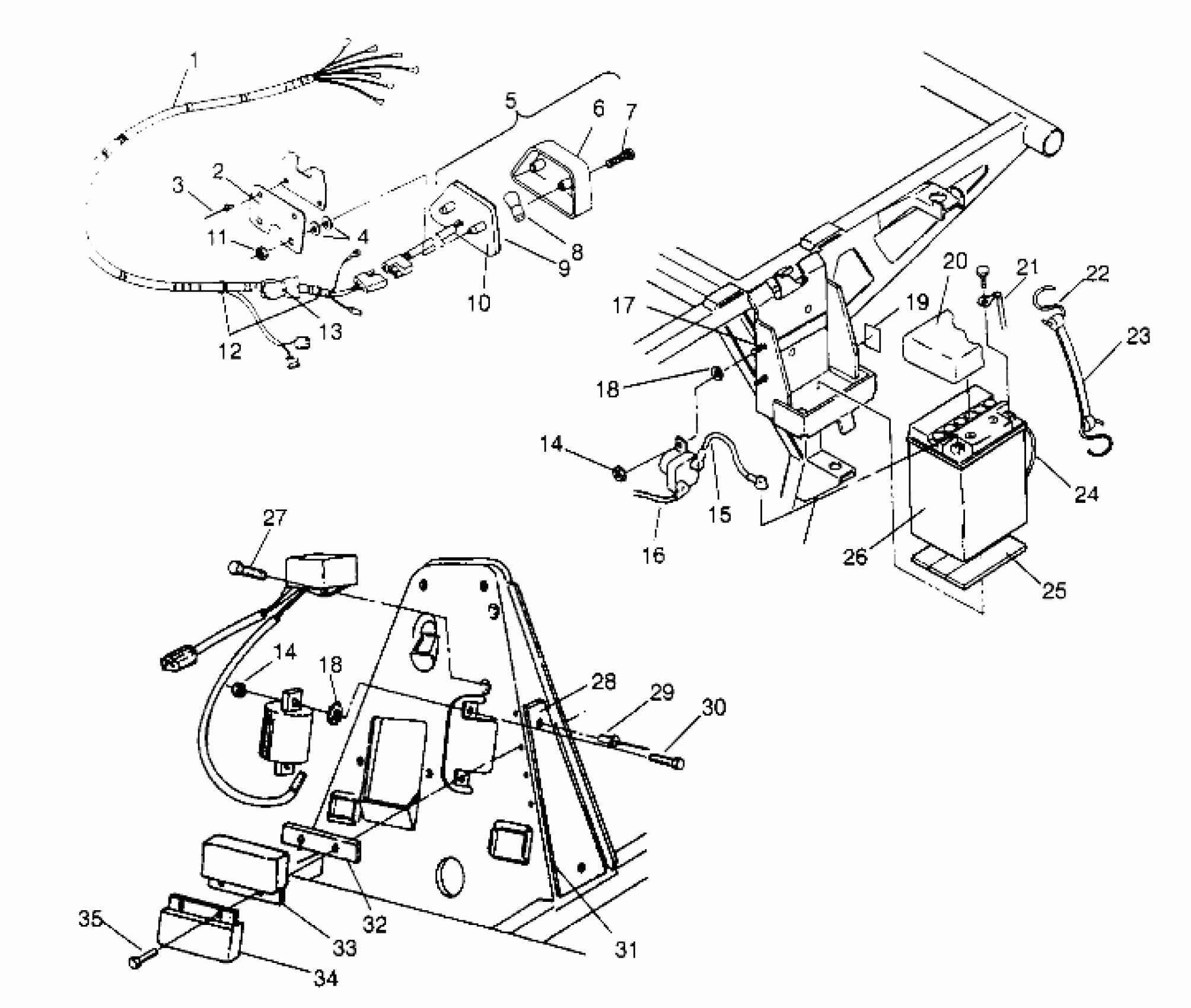

Polaris 300 4X4 - W948130 ELECTRICAL/TAILLIGHT ASSEMBLY 4x4 300 W948130 (4926762676C009) Diagram

#

Description
Price

1

HARNESS, MAIN

2460498

$82.99

2

ISOLATOR,TAILLIGHT

5211391-067

$13.39

3

RIVET(50)

7621470

$3.17

4

WASHER(10) Substituted by 7558301

7555776

Unavailable

5

TAIL LIGHT ASM. (Incl. 6-10)

2432034

$55.99

6

LENS,TAILLIGHT

4032046

$32.37

7

Screw, Taillight

4032029

$4.79

8

BULB,TAILLIGHT

4030043

$6.46

9

GASKET,TAILLIGHT

4032045

$4.03

10

BACKING,TAILLIGHT

4032064

$83.99

11

SPEED NUT-WASHER, HEAD-1/4

7670054

$1.49

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

CKT.BREAKER,20 AMP.

2434012

$38.89

14

NUT(10)

7541925

$1.49

14

NUT(10)

7541925

$1.49

15

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

16

CABLE,SOLENOID/STARTER

4010064

Unavailable

17

SCREW(10)

7512027

$1.49

18

WASHER(10)

7571602

$4.79

18

WASHER(10)

7571602

$4.79

19

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

20

COVER,BATTERY

5431769

$14.39

21

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

22

HOOK-BATT.H/D(10)

7010032

$1.59

23

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

24

KIT-TANK VENT

2200190

Unavailable

25

PAD-BATTERY

5810290

$7.27

26

Battery

4140006

$99.99

27

BOLT(10)

7512232

$1.49

28

BOARD,TERMINAL

4040022

Unavailable

29

RIVET, POP(50)

7621322

$0.56

30

SCREW(10)

7512007

$3.99

31

SHIELD,TERM.BOARD

5431152

Unavailable

32

HEAT SINK

5210650

Unavailable

33

RECTIFIER, VOLTAGE

4060087

Unavailable

34

LIMITER,REV.SPEED

4060085

Unavailable

35

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19
