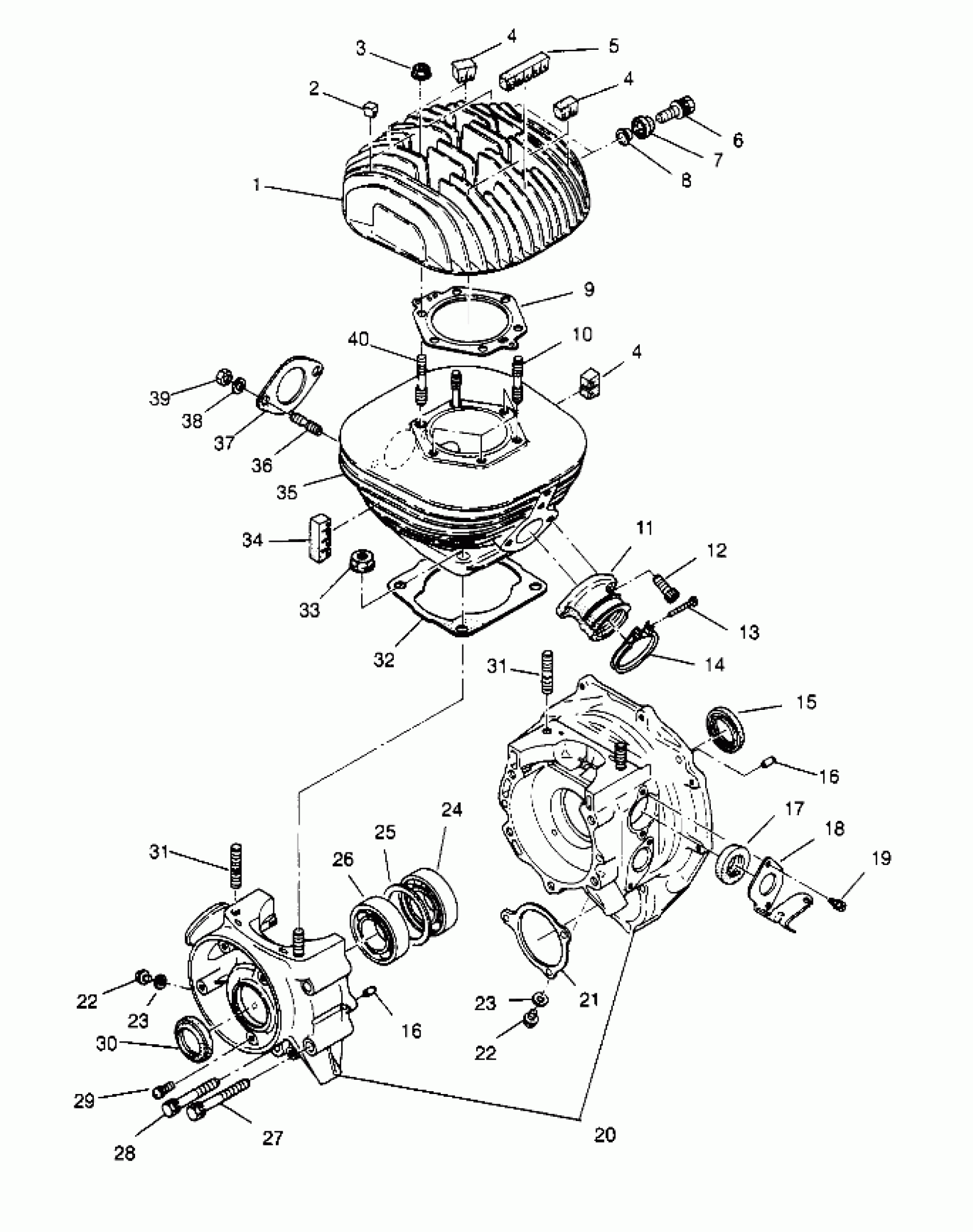

Polaris 300 4X4 - W948130 CRANKCASE and CYLINDER 4x4 300 W948130 (4926762676C012) Diagram

#

Description
Price

1

HEAD,CYLINDER

3084796

Unavailable

2

FIN DAMPER #2

3083930

Unavailable

3

NUT-FLANGE(10)

3082910

$2.39

4

FIN DAMPER B

3084799

Unavailable

4

FIN DAMPER B

3084799

Unavailable

4

FIN DAMPER B

3084799

Unavailable

5

Fin Damper A

3084798

$31.99

6

BOLT&WASHER

3083730

$4.79

7

MOUNTING,RUBBER

3083731

$4.95

8

COLLAR

3083732

Unavailable

9

GASKET,HEAD (Head)

3084797

Unavailable

10

Stud

3080283

$12.94

11

ADAPTER, CARB. Substituted by 3085013

3083412

$100.38

12

BOLT, ALLEN (Socket Head)

3081330

$3.99

13

SCREW,(10) (Pan Head)

3081497

$2.39

14

BAND-CARB MTG. (Incl. 13)

3082257

Unavailable

15

SEAL,OIL Substituted by 3082162

3080006

$38.60

16

PIN, DOWEL Substituted by 3086838

3080103

$7.14

16

PIN, DOWEL Substituted by 3086838

3080103

$7.14

17

GROMMET

3084801

$5.03

18

BRACKET,WIRE

3084800

Unavailable

19

BOLT&WASHER ASM.(10)

3084802

$1.49

20

CRANKCASE ASM. (Incl. 15,16,24-28,30-31)

3084791

Unavailable

21

GASKET, STARTER Substituted by 3085283

3084018

Unavailable

22

PLUG, DRAIN

3083767

Unavailable

22

PLUG, DRAIN

3083767

Unavailable

23

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

23

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

24

Bearing, Ball

3084775

$43.99

25

SPACER

3084792

Unavailable

26

Bearing, Ball

3084121

$39.99

27

BOLT W/WASHER

3080739

$6.39

28

BOLT&WASHER ASSY.

3083615

Unavailable

29

SCREW&WASHER ASM.

3081635

Unavailable

30

SEAL, OIL, PTO (PTO)

3084581

$28.32

31

Stud

3084119

$9.59

31

Stud

3084119

$9.59

32

GASKET,CYL,NA

3084795

Unavailable

33

NUT-FLANGE(10)

3082911

$1.99

34

FIN DAMPER #1

3083929

Unavailable

35

CYLINDER (Incl. 10,36,40)

3084793

Unavailable

36

STUD (10)

3080016

$5.75

37

GASKET,EXHAUST Substituted by 3084439

3084017

Unavailable

38

WASHER LOCK ,(10)

3080530

$3.19

39

NUT(10)

3080285

Unavailable

40

STUD

3084794

Unavailable
