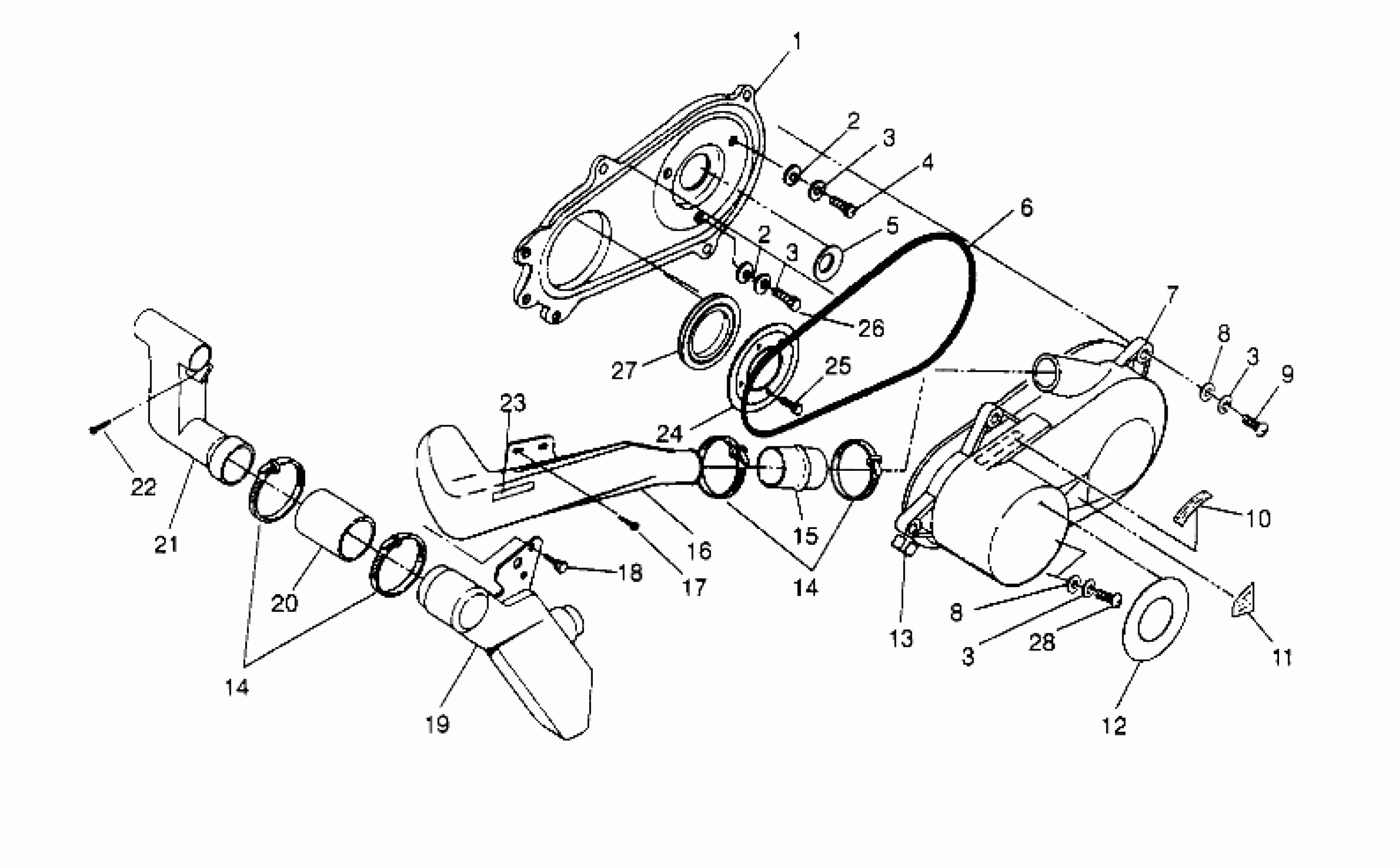

Polaris 300 4X4 - W948130 CLUTCH COVER ASSEMBLY 4x4 300 W948130 (4926762676B014) Diagram

#

Description
Price

1

COVER,CLUTCH,INNER Substituted by 2200792

5431716

$294.99

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

2

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

3

WASHER(10)

7552605

$5.27

3

WASHER(10)

7552605

$5.27

3

WASHER(10)

7552605

$5.27

3

WASHER(10)

7552605

$5.27

4

BOLT(10)

7512278

Unavailable

5

SEAL,COVER CASE

5410489

$13.59

6

SEAL,CLUTCHCOVER

5521301

$30.88

7

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$173.74

8

WASHER(10) Substituted by 7558301

7555776

Unavailable

8

WASHER(10) Substituted by 7558301

7555776

Unavailable

9

BOLT(10)

7512281

$3.99

10

DECAL(CPSC),CLUTCH COVER Substituted by 7074946

7072787

Unavailable

11

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

12

DECAL, PVT [No Longer Available]

7072386

Unavailable

13

CLIP,CLUTCH COVER(10)

7670051

$2.99

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

14

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

BOOT,CLUTCH INTAKE

5410421

$11.19

16

DUCT, AIR OUTLET, CLUTCH Substituted by 5432615

5431671

Unavailable

17

SCREW(10)

7512252

Unavailable

18

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

19

DUCT,INLET DOWN TUBE

5431006

$82.39

20

BOOT, INTAKE

5410509

$7.99

21

DUCT,INLET TOP

5431007

Unavailable

22

SCREW(10)

7512017

$4.79

23

DECAL,DEMAND 4 DRIVE

7074226

Unavailable

24

BRKT,RETAINER SEAL

5222877-067

Unavailable

25

Asm., Screw and Washer (See Pg. A39, Ref. 29)

-------

Unavailable

26

BOLT(10)

7512276

$4.79

27

SEAL,COVER CASE

5410749

Unavailable

27

SEALER,10.3 OZ,SILICONE#732, Substituted by 8560054

2870661

Unavailable

28

SCREW(10)

7512222

$2.39
