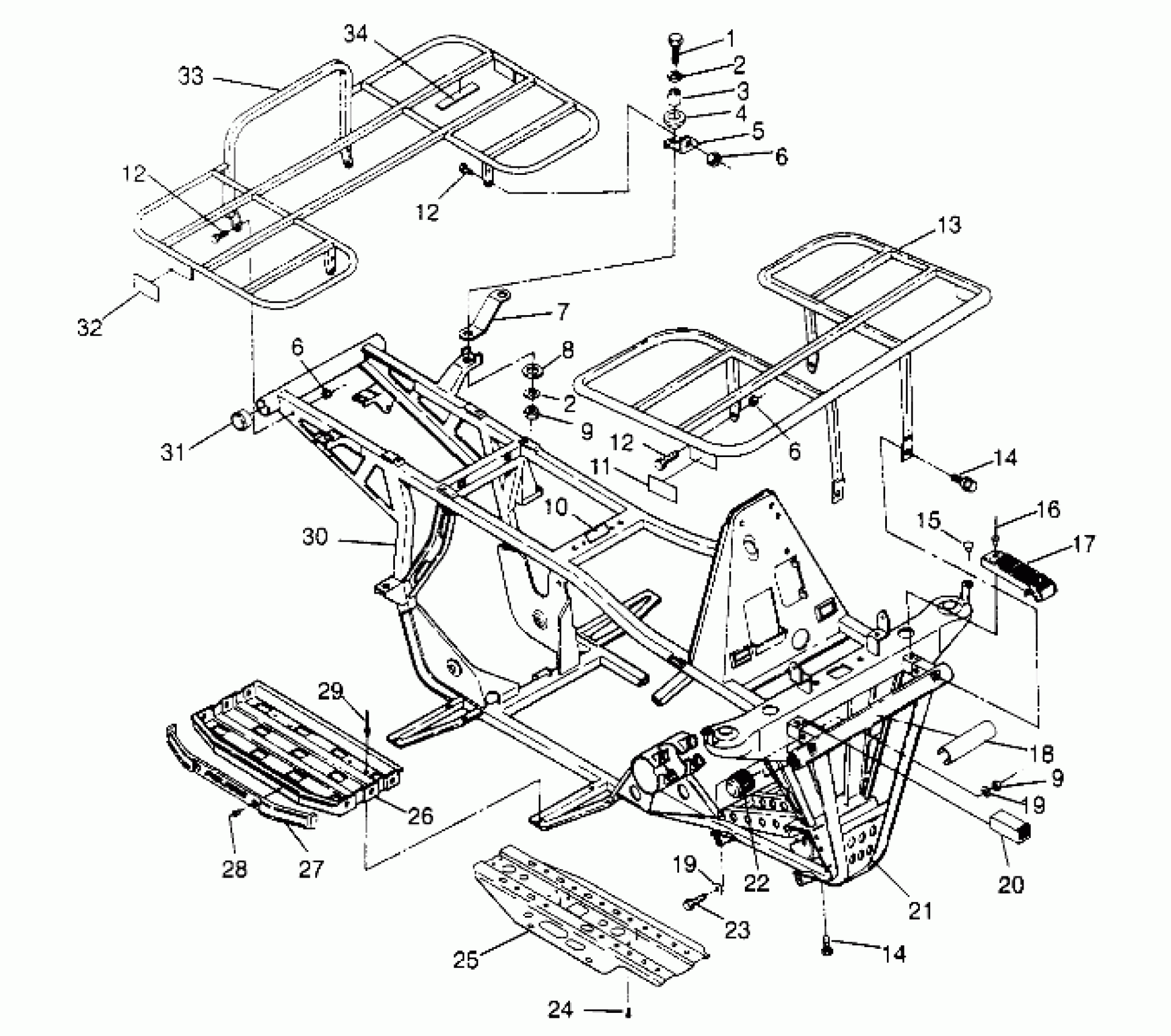

Polaris 300 4X4 - W948130 BUMPER/RACK MOUNTING - W948130 (4926762676A007) Diagram

#

Description
Price

1

SCREW-FLANGED(10)

7515304

$5.59

2

WASHER(10)

7555716

$1.59

2

WASHER(10)

7555716

$1.59

3

BUSHING-RES. MT.

5010192

$6.39

4

DAMPENER

5410241

Unavailable

5

BRKT,LH SUPPORT RACK Substituted by 5243468-067

5220899-067

Unavailable

5

BRKT,RH SUPPORT RACK Substituted by 5243469-067

5220901-067

Unavailable

6

NUT, NYLOK(10)

7542327

$4.79

6

NUT, NYLOK(10)

7542327

$4.79

6

NUT, NYLOK(10)

7542327

$4.79

7

SUPPORT,R.FENDER

5220902-067

$48.40

8

WASHER,RUBBER

5410436

$1.59

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

Decal - Filter Element (See Pg. A6, Ref. 16)

-------

Unavailable

11

REFLECTOR ASM,AMBER

2670134

$9.70

12

SCREW(10)

7515355

Unavailable

12

SCREW(10)

7515355

Unavailable

12

SCREW(10)

7515355

Unavailable

13

RACK,FRT.BLK.

2670135-067

Unavailable

14

SCREW(10)

7512252

Unavailable

14

SCREW(10)

7512252

Unavailable

15

Plug, Rubber Hole (See Pg. A5, Ref. 14)

-------

Unavailable

16

RIVET(50)

7621229

Unavailable

17

COVER,BRKT,BUMPER MT.

5431023

$10.71

18

DECAL,MACPHERSON STRUT

7074220

Unavailable

19

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

19

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

20

PLUG, FRAME

5810467

Unavailable

21

BUMPER,FR,(BLK.)

2670113-067

Unavailable

22

CAP,BUMPER,FR,E.B.GRN.

5431013-195

$11.39

23

BOLT(10)

7512329

$3.99

24

BOLT(10)

7512232

$1.49

25

GUARD,ROCK,BLK.

5240560-067

$87.99

26

FOOTPAD,LH,SILVER

1040274-117

$82.39

26

FOOTPAD,RH,SILVER

1040351-117

Unavailable

27

Trim, Footrest

5431484

Unavailable

28

RIVET,(50)

7661825

$1.49

29

RIVET-3/16-.090-.290

7661637

$1.49

30

FRAME,MAIN,(300-4X4)

1040388-067

$695.22

31

PLUG, BUMPER CAP(10) Substituted by 5432047

5410794

$4.92

32

REFLECTOR ASM,RED

2670133

$5.75

33

RACK,REAR,BLK.

2670136-067

Unavailable

34

PAD,RACK MOUNT

5810455

$3.19
