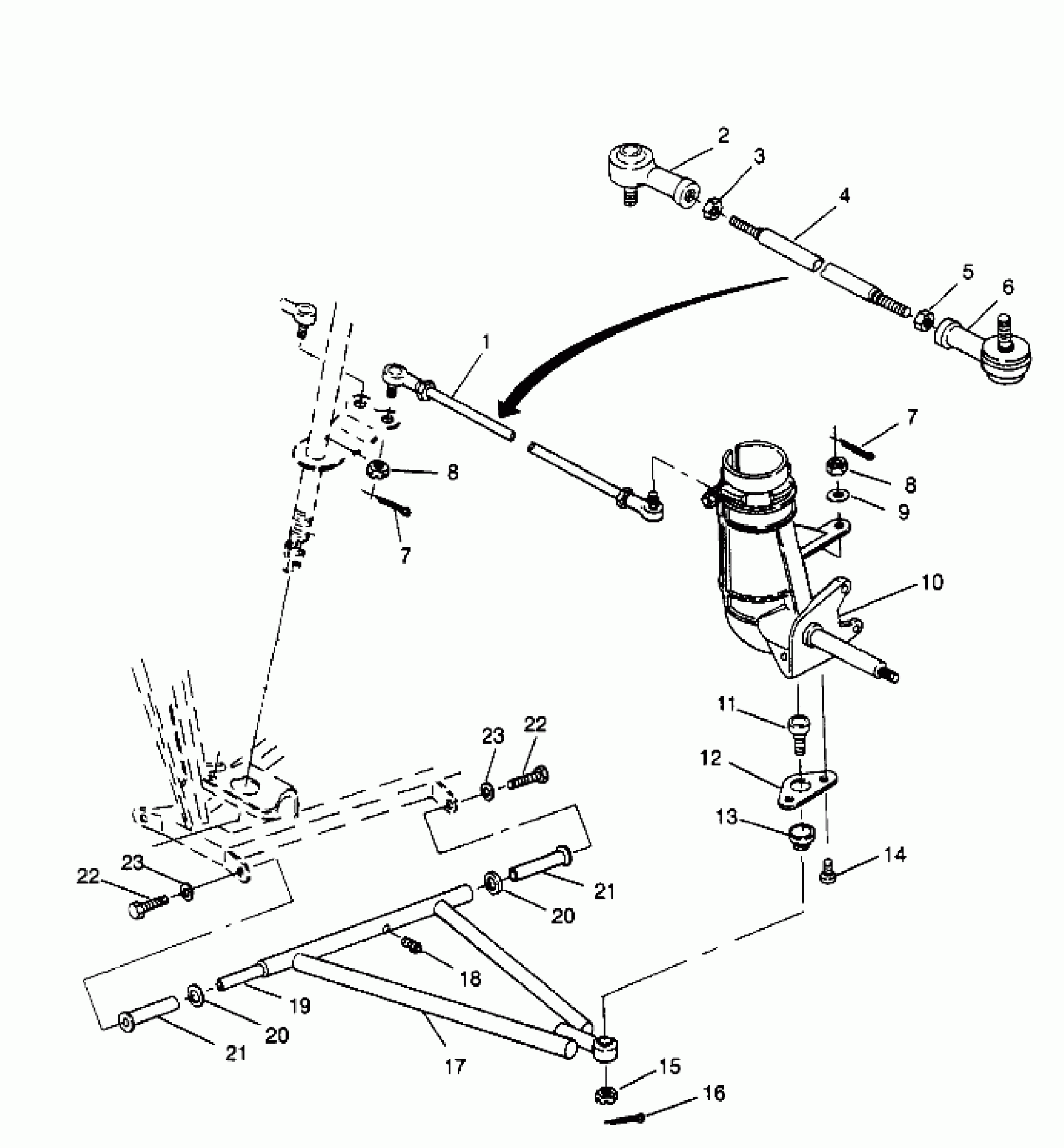

Polaris 300 2X4 - W957530 STEERING/A-ARM ASSEMBLY 2X4 300 W957530 (4930053005B007) Diagram

#

Description
Price

1

TIEROD ASM,RELUBE

1822307

Unavailable

2

ROD,END,RH,10 MM.

7060172

$56.65

3

NUT, RH, 10 MM.(10)

7546901

$2.39

4

TIE ROD

5020478

$48.56

5

NUT, LH, 10 MM.(10)

7546902

Unavailable

6

ROD END,LH,W/FTG,10 MM.

7060171

$55.99

7

PIN COTTER(10)

7661203

$1.49

7

PIN COTTER(10)

7661203

$1.49

8

NUT, CASTLE(10)

7546904

$4.79

8

NUT, CASTLE(10)

7546904

$4.79

9

WASHER(10)

7555806

$1.49

10

Support, Strut & Spindle, RH (See Pg., Ref.)

-------

Unavailable

10

Support, Strut & Spindle, LH (See Pg., Ref.)

-------

Unavailable

11

BALL JOINT Substituted by 7080673

7080364

Unavailable

12

BRACKET-BALL JOINT

5211121

$31.99

13

Boot, Rubber

5410548

Unavailable

14

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

15

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

16

COTTER PIN(10)

7661401

$1.49

17

KIT,A-FRAME,LH (Incl. 16, 18, 20-23)

2200477

Unavailable

17

KIT,A-FRAME,RH (Incl. 16, 18, 20-23)

2200478

Unavailable

18

ZERK,FITTING,THREADED(10)

7080433

$1.49

19

SHAFT, A-ARM,(2X4)

5020680

Unavailable

20

BUSHING,A-ARM SPACER(10)

5020677

$10.39

20

BUSHING,A-ARM SPACER(10)

5020677

$10.39

21

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

21

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

22

BOLT(10) Substituted by 7512492

7515458

Unavailable

22

BOLT(10) Substituted by 7512492

7515458

Unavailable

23

WASHER(10)

7552603

$1.49

23

WASHER(10)

7552603

$1.49
