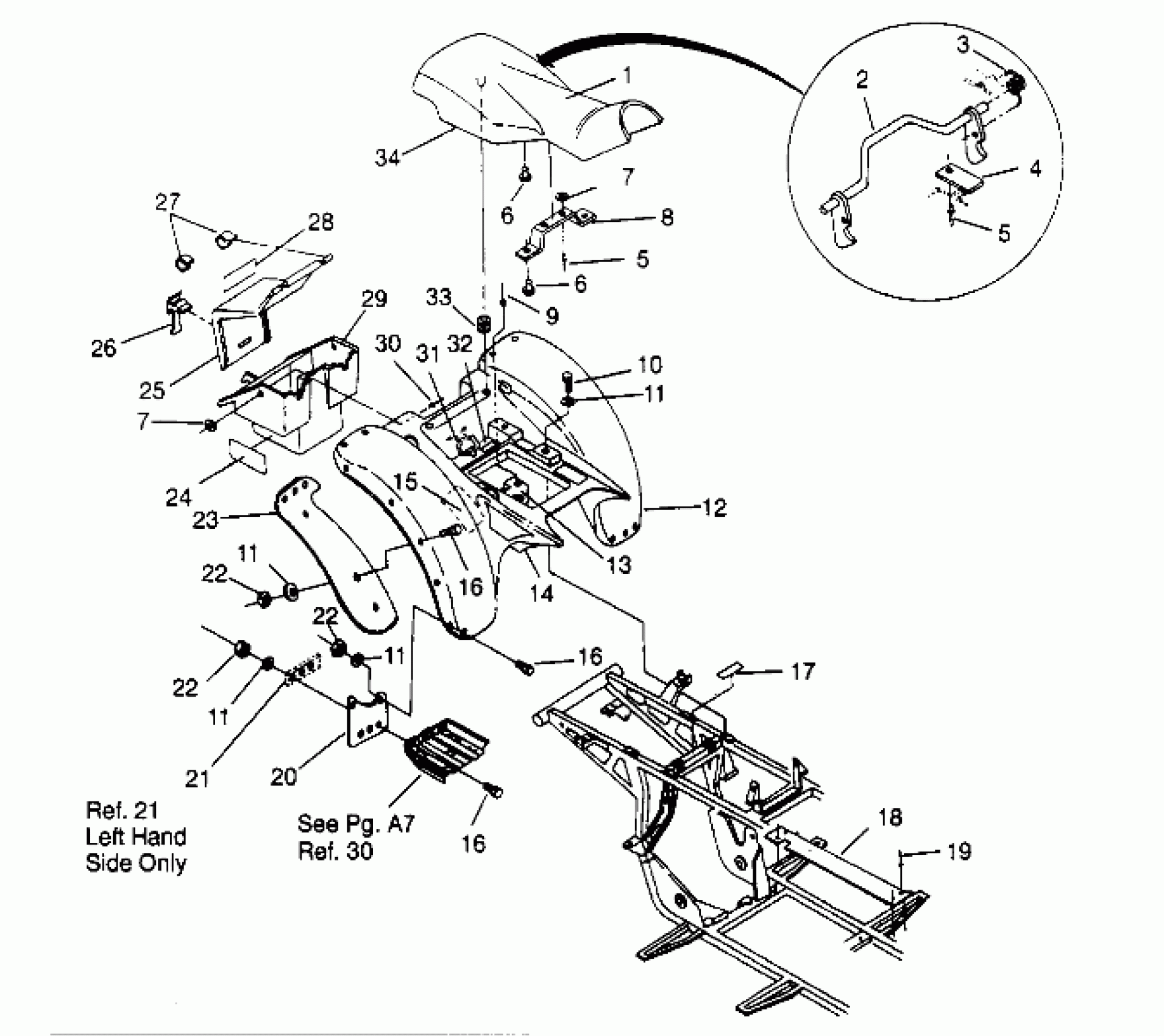

Polaris 300 2X4 - W957530 REAR CAB ASSEMBLY 2X4 300 W957530 (4930053005A006) Diagram

#

Description
Price

1

SEAT ASM,(ATV),LT.GRY Substituted by 2682203-143

2681724-143

Unavailable

2

LATCH,SEAT

1011558

Unavailable

3

SPRING, LATCH

7041158

Unavailable

4

BRACKET,LEVER RETAINER

5211033

$34.99

5

BLIND RIVET(50)

7621403

$1.19

5

BLIND RIVET(50)

7621403

$1.19

6

Bumper, Rubber

5410414

$3.17

6

Bumper, Rubber

5410414

$3.17

7

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

7

WASHER,13/64X1/2X18GA,FL-Y

7558212

$0.79

8

BRKT,SUPPORT SEAT BASE

5222837-067

Unavailable

9

RIVET,3/16X.402(50)

7621432

$1.19

10

BOLT(10)

7512232

$1.19

11

WASHER, FLAT(10)

7555859

$1.19

11

WASHER, FLAT(10)

7555859

$1.19

11

WASHER, FLAT(10)

7555859

$1.19

11

WASHER, FLAT(10)

7555859

$1.19

12

CAB,REAR,BLUE(350ATV-MOD)

5431271-157

Unavailable

13

BRKT,R.HOLDDOWN

5220880

Unavailable

14

FOIL, REAR CAB (Inside)

5810957

Unavailable

15

Foil, Rear Cab, Small

5810991

Unavailable

16

BOLT, BLACK(10)

7512282

Unavailable

16

BOLT, BLACK(10)

7512282

Unavailable

16

BOLT, BLACK(10)

7512282

Unavailable

17

DECAL,FILTER ELEMENT [No Longer Available]

7072791

Unavailable

18

GUARD,CLUTCH,OUTER

5222860-067

$7.06

19

RIVET-3/16-.090-.290

7661637

$1.19

20

MUDFLAP,LH,LOW,REAR

5850076

Unavailable

20

MUDFLAP,RH,LOW.REAR

5850111

Unavailable

21

BRKT, LH MUD FLAP

5211131-067

Unavailable

22

NUT-LOCK(10)

7542122

$1.19

22

NUT-LOCK(10)

7542122

$1.19

22

NUT-LOCK(10)

7542122

$1.19

23

FLAP,MUD,LH REAR

5850060

Unavailable

23

FLAP,MUD,RH REAR

5850061

Unavailable

24

TAPE, FOIL

5810310

Unavailable

25

LID,TOOLBOX(SIL/B.BLUE)

5430769-1035

Unavailable

26

STRAP,TOOL COMPARTMENT

5410425

Unavailable

27

CLIP, LID HINGE(10)

7670050

Unavailable

28

DECAL(CPSC),PASS.WRN. [No Longer Available]

7072805

Unavailable

29

BOX,TOOL COMP.

5430882

Unavailable

30

RIVET(50)

7621462

$1.19

31

RETAINER,TOOL POUCH

7080385

Unavailable

32

DECAL,CARB.INFO.

7073761

Unavailable

33

Grommet

5411042

$6.35

34

COVER,SEAT,LT.GREY

2681723-143

Unavailable
