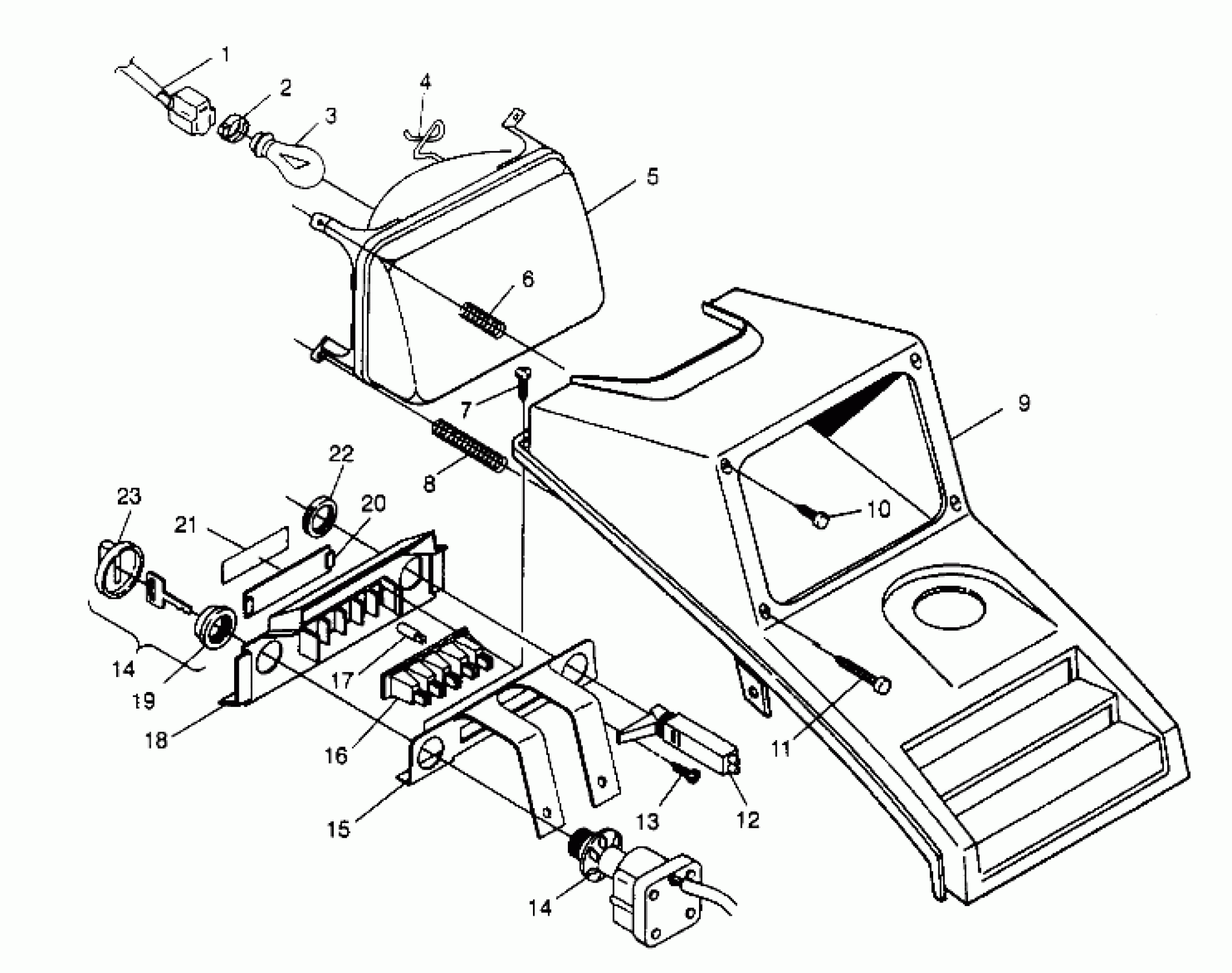

Polaris 300 2X4 - W957530 HEADLIGHT ASSEMBLY 2X4 300 W957530 (4930053005A014) Diagram

#

Description
Price

1

HARNESS,HEADLIGHT

2460427

Unavailable

2

COVER,SOCKET,H/L.

4032066

Unavailable

3

BULB, H/L

4030028

$29.99

4

RETAINER,H/L BULB

4032063

Unavailable

5

H/L ASM,W/BULBSEAL

4032065

Unavailable

6

SPRING-ADJ

4032002

Unavailable

7

SCREW(10)

7512017

$4.79

8

SPRING,ADJ.

4032041

Unavailable

9

COVER,H/L.(LT.GREY)

5430973-143

Unavailable

10

SCREW, ADJ.(10)

4032003

Unavailable

11

SCREW,ADJUST,(ATV)(10)

4032042

Unavailable

12

KIT-CHOKE CONTROL

2200188

$24.27

12

CABLE, CHOKE

7080371

$97.13

13

SCREW, SEM(10)

7511862

$6.99

14

SWITCH, IGNITION (See Footnote)

4110140

$137.60

14

SWITCH, IGNITION (See Footnote)

4110140

$137.60

15

BRKT, IGN. PANEL

5220965-067

Unavailable

16

STRIP, SOCKET

4032037

$27.19

17

BULB

4030042

Unavailable

18

PANEL, IGNITION

5430995

Unavailable

19

NUT,IGN.SWITCH

5432090

Unavailable

20

LENS ASM,PILOT LIGHT (Incl. 17)

2652049

Unavailable

21

DECAL, PANEL [No Longer Available]

7072528

Unavailable

22

Nut

7080229

$19.99

23

COVER, KEY Substituted by 5433534 NOTE: Ignition Key may be ordered by using the 4 digit number on the key.

5431964

Unavailable
