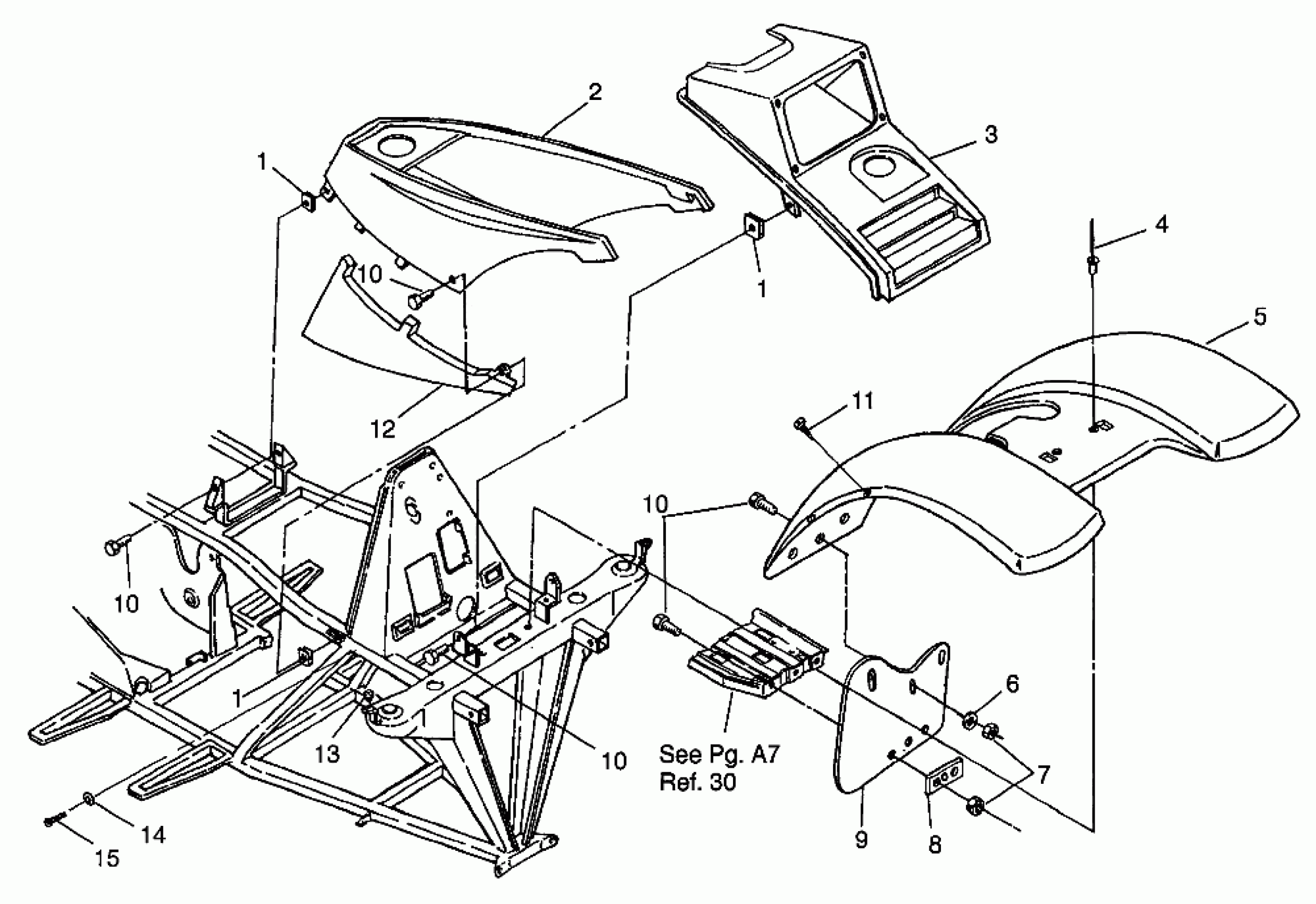

Polaris 300 2X4 - W957530 FRONT CAB 2X4 300 W957530 (4930053005A005) Diagram

#

Description
Price

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

2

COVER,FUEL TANK,LT.GRY.

5431197-143

Unavailable

3

COVER,H/L.(LT.GREY)

5430973-143

Unavailable

4

RIVET(50)

7621460

$1.49

5

CAB.ASM,FR,LIQ.BLUE(4WL)

2631610-157

Unavailable

6

WASHER, FLAT(10)

7555859

$1.49

7

NUT-LOCK(10)

7542122

$1.49

8

BRKT, LH MUD FLAP

5211131-067

Unavailable

9

MUDFLAP,FRT,LH,BLK.

5850082-070

$11.59

9

MUDFLAP,FRT,RH,BLK.

5850092-070

$10.71

10

BOLT, BLACK(10)

7512282

$1.49

10

BOLT, BLACK(10)

7512282

$1.49

10

BOLT, BLACK(10)

7512282

$1.49

10

BOLT, BLACK(10)

7512282

$1.49

11

CLIP, PUSH-ON(10)

7670052

$1.99

12

COVER,LH PAN(L.GREY) Substituted by 5433382-143

5430970-143

Unavailable

12

COVER,RH,PAN.(L.GREY) Substituted by 5433579-143

5430971-143

Unavailable

13

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

14

WASHER,WROUGHT(10)

7558302

$1.59

15

BOLT(10)

7512232

$1.49
