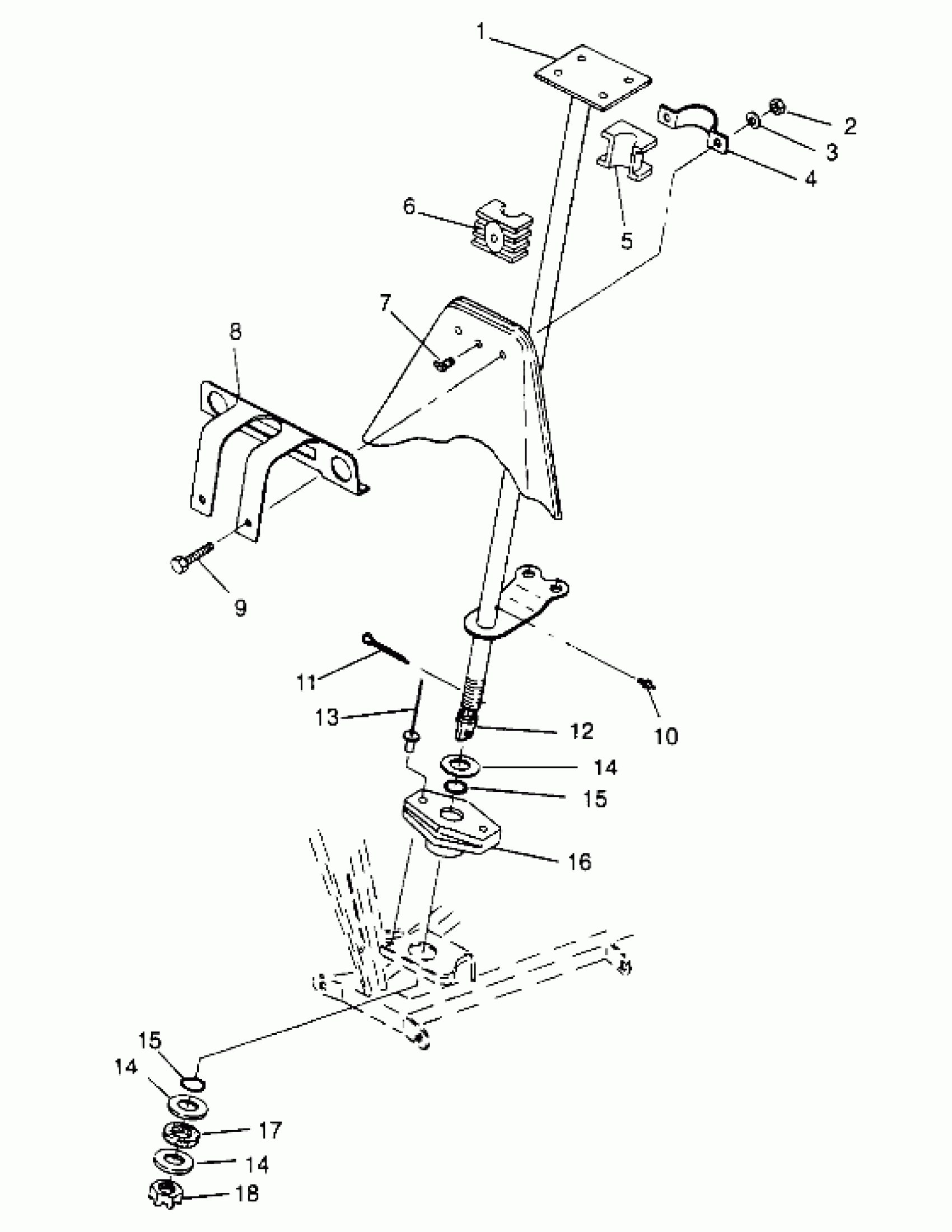

Polaris 300 2X4 - W947530 STEERING POST ASSEMBLY 2x4 300 W947530 (4926742674B005) Diagram

#

Description
Price

1

POST,STEERING,ASM. Substituted by 1843071 (Incl. 10,12)

1843039

Unavailable

2

NUT-5/16-18 NYLOK-Y

7542324

$1.49

3

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

BRKT,UP.STRG.BUSH,BLK.

5222999-067

$32.37

5

BUSHING,STRG.CONSOLE Substituted by 5433416

5431572

$8.73

6

BUSHING,STRG.CONSOLE Substituted by 5433415

5431573

$8.48

7

FITTING, ZERK(10) (90

7080510

$5.59

8

BRKT, IGN. PANEL

5220965-067

Unavailable

9

SCREW(10)

7512310

$2.39

10

ZERK,FITTING,THREADED(10)

7080433

$1.49

11

PIN, COTTER(10)

7661633

Unavailable

12

PLUG,GREASE,STRG.

5431574

Unavailable

13

RIVET, MONOBOLT (50)

7661632

$4.79

14

BUSHING(10)

7555878

$7.19

14

BUSHING(10)

7555878

$7.19

14

BUSHING(10)

7555878

$7.19

15

O-RING

5410772

$5.59

15

O-RING

5410772

$5.59

16

BUSHING,LOWER STRG.

5431570

$44.99

17

SPACER, STRG.POST

5431571

Unavailable

18

NUT, HEX, SLOTTED(10)

7543203

$9.59
