STEERING/A-ARM ASSEMBLY 2x4 300 W947530 (4926742674B006)

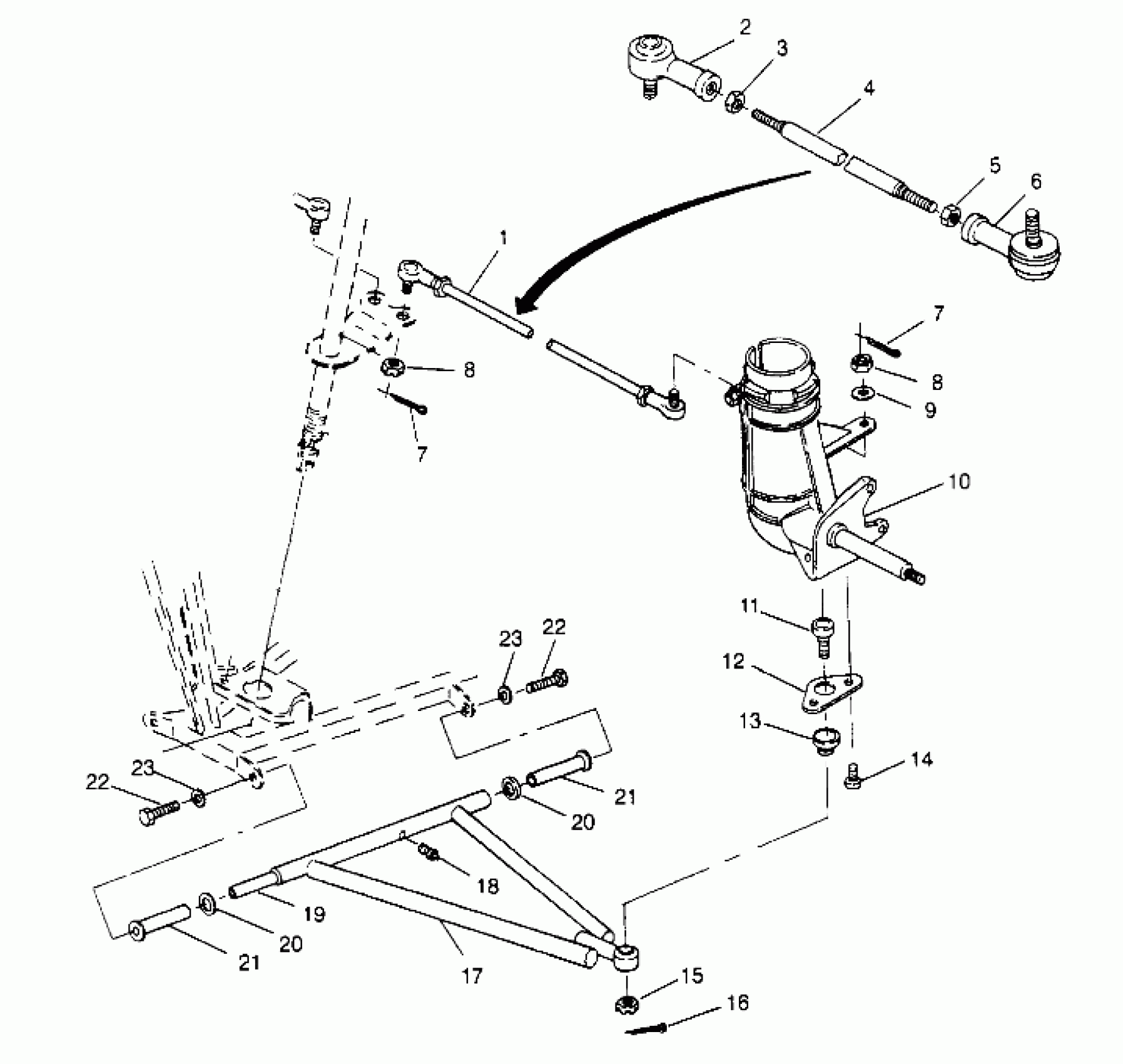

Polaris 300 2X4 - W947530 STEERING/A-ARM ASSEMBLY 2x4 300 W947530 (4926742674B006) Diagram
#
Description
Price
1
TIE ROD ASM. Substituted by 1822307
1822070
Unavailable
2
ROD END, RH Substituted by 7060172
7060138
$56.65
3
NUT, RH, 10 MM.(10)
7546901
$2.39
4
TIE ROD
5020478
$48.56
5
NUT, LH, 10 MM.(10)
7546902
Unavailable
6
ROD END
7060147
$56.65
7
PIN COTTER(10)
7661203
$1.49
7
PIN COTTER(10)
7661203
$1.49
8
NUT, CASTLE(10)
7546904
$4.79
8
NUT, CASTLE(10)
7546904
$4.79
9
WASHER(10)
7555806
$1.49
10
Support, Strut & Spindle, RH (See Pg. A15, Ref. 16)
-------
Unavailable
10
Support, Strut & Spindle, LH (See Pg. A15, Ref. 16)
-------
Unavailable
11
BALL JOINT Substituted by 7080673
7080364
Unavailable
12
BRACKET-BALL JOINT
5211121
$31.99
13
Boot, Rubber
5410548
Unavailable
14
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$1.49
15
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
16
COTTER PIN(10)
7661401
$1.49
17
KIT,A-FRAME,LH (Incl. 16,18,20-23)
2200477
Unavailable
17
KIT,A-FRAME,RH (Incl. 16,18,20-23)
2200478
Unavailable
18
ZERK,FITTING,THREADED(10)
7080433
$1.49
19
SHAFT, A-ARM,(2X4)
5020680
Unavailable
20
BUSHING,A-ARM SPACER(10)
5020677
$10.39
20
BUSHING,A-ARM SPACER(10)
5020677
$10.39
21
BUSHING,A-ARM,LONG. Substituted by 5433066
5431596
Unavailable
21
BUSHING,A-ARM,LONG. Substituted by 5433066
5431596
Unavailable
22
BOLT(10) Substituted by 7512492
7515458
Unavailable
22
BOLT(10) Substituted by 7512492
7515458
Unavailable
23
WASHER(10)
7552603
$1.49
23
WASHER(10)
7552603
$1.49
