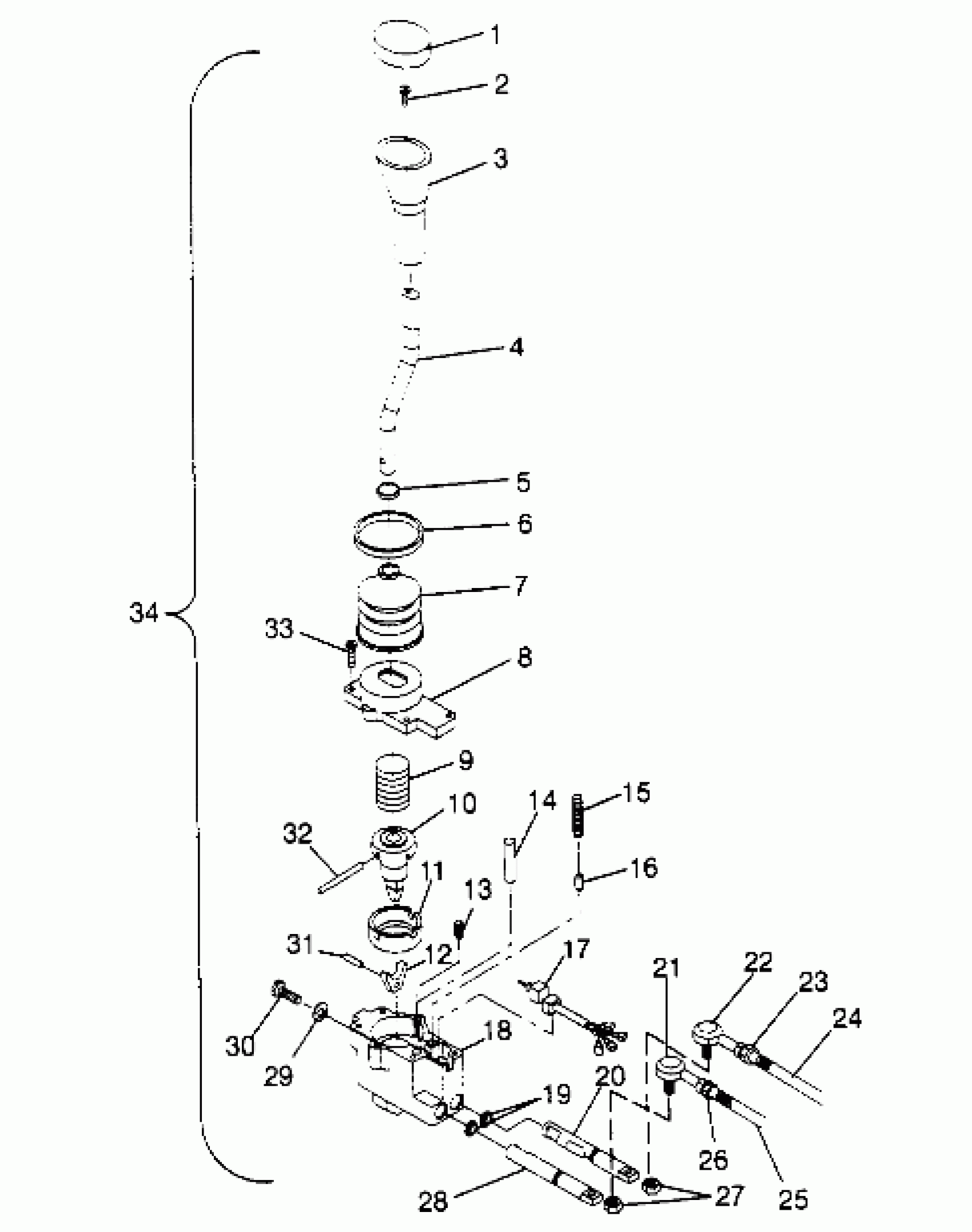

Polaris 300 2X4 - W947530 SHIFT LINKAGE ASSEMBLY 2x4 300 W947530 (4926742674C002) Diagram

#

Description
Price

1

COVER,SHIFT KNOB Substituted by 3233195

3233136

Unavailable

2

SCREW

3233079

Unavailable

3

KNOB, SHIFT Substituted by 3233198

3233135

$34.84

4

ROD,GEAR SELECTOR Substituted by 3233161

3233137

Unavailable

5

Strap, Wire

3233131

$9.70

6

CLAMP

3233132

Unavailable

7

BOOT,GEAR SELECTOR Substituted by 3233368

3233133

$74.04

8

COVER,GEAR SELECTOR

3233081

$87.19

9

SPRING,HOLDING

3233065

$10.71

10

STRIKER Substituted by 3233197

3233061

Unavailable

11

CUP,BEARING

3233063

$15.99

12

INTERLOCK,BUTTERFLY

3233084

Unavailable

13

SPRING,CENTERING

3233083

Unavailable

14

PIN, STOP

3233062

Unavailable

15

SPRING,DETENT

3233069

Unavailable

16

BULLET,DETENT

3233060

$64.99

17

SWITCH,GEAR SELECTOR Substituted by 3233371

3233138

$309.99

18

BODY,GEAR SELECTOR

3233082

$103.19

19

O-RING

3233076

$6.39

20

SLIDE,HIGH/REV.

3233088

Unavailable

21

ROD END, RH Substituted by 7061014

7060142

$65.33

22

ROD END, LH Substituted by 7061013

7060141

$65.33

23

NUT(10)

7546702

$1.49

24

ROD,SHIFT-LINK,LOW

5020749

Unavailable

25

ROD,SHIFT-LINK,HIGH

5020748

Unavailable

26

NUT(10)

7546701

$3.99

27

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

28

SLIDE,LOW

3233089

Unavailable

29

WASHER(10)

7552605

$5.27

30

BOLT(10)

7512269

Unavailable

31

PIN,INTERLOCK

3233070

Unavailable

32

PIN,GROOVE

3233067

Unavailable

33

SCREW Substituted by 3233498

3233085

Unavailable

34

SELECTOR ASM,GEAR (Incl. 1-20, 28-33)

1341133

Unavailable
