REAR CAB ASSEMBLY 2x4 300 W947530 (4926742674A006)

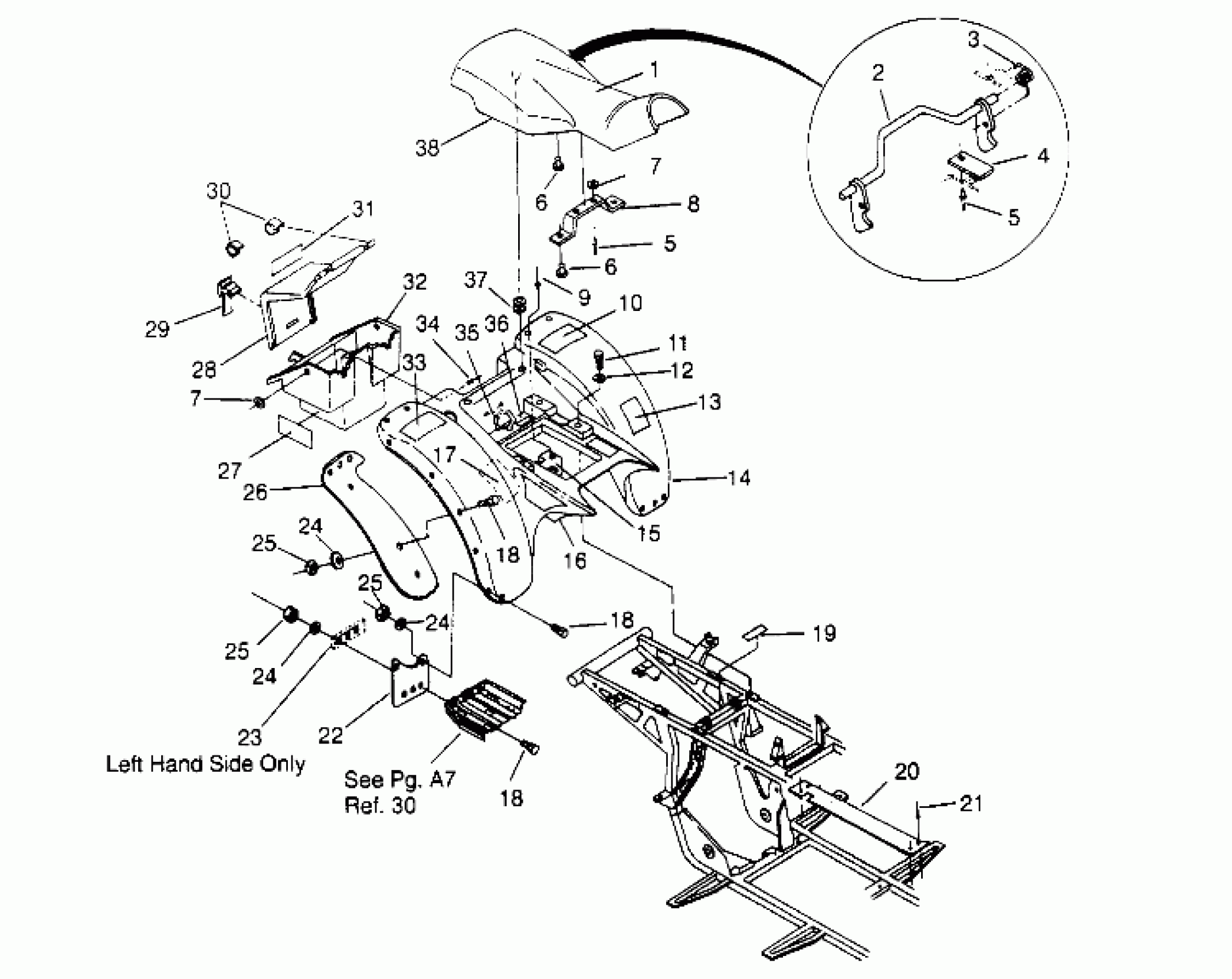

Polaris 300 2X4 - W947530 REAR CAB ASSEMBLY 2x4 300 W947530 (4926742674A006) Diagram
#
1
SEAT ASM,BON.BLUE(ATV) Substituted by 2682357-157
2681724-157
Unavailable
2
LATCH,SEAT
1011558
Unavailable
3
SPRING, LATCH
7041158
Unavailable
4
BRACKET,LEVER RETAINER
5211033
$29.25
5
BLIND RIVET(50)
7621403
$1.49
5
BLIND RIVET(50)
7621403
$1.49
6
Bumper, Rubber
5410414
$3.19
6
Bumper, Rubber
5410414
$3.19
7
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
7
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
8
BRKT,SUPPORT SEAT BASE
5222837-067
Unavailable
9
RIVET,3/16X.402(50)
7621432
$1.49
10
DECAL(CPSC),WARN,R.RACK [No Longer Available]
7072788
Unavailable
11
BOLT(10)
7512232
$1.49
12
WASHER, FLAT(10)
7555859
$1.49
13
DECAL(CPSC),TIRE PRESS(2X4) [No Longer Available]
7072809
Unavailable
14
CAB, REAR
5431271-143
Unavailable
15
BRKT,R.HOLDDOWN
5220880
Unavailable
16
FOIL, REAR CAB (Inside)
5810957
Unavailable
17
Foil, Rear Cab, Small
5810991
Unavailable
18
BOLT, BLACK(10)
7512282
$1.49
18
BOLT, BLACK(10)
7512282
$1.49
18
BOLT, BLACK(10)
7512282
$1.49
19
DECAL,FILTER ELEMENT [No Longer Available]
7072791
Unavailable
20
GUARD,CLUTCH,OUTER
5222860-067
$7.06
21
RIVET-3/16-.090-.290
7661637
$1.49
22
MUDFLAP,LH,LOW,REAR
5850076
Unavailable
22
MUDFLAP,RH,LOW.REAR
5850111
Unavailable
23
BRKT, LH MUD FLAP
5211131-067
Unavailable
24
WASHER, FLAT(10)
7555859
$1.49
24
WASHER, FLAT(10)
7555859
$1.49
24
WASHER, FLAT(10)
7555859
$1.49
25
NUT-LOCK(10)
7542122
$1.49
25
NUT-LOCK(10)
7542122
$1.49
25
NUT-LOCK(10)
7542122
$1.49
26
FLAP,MUD,LH REAR
5850060
Unavailable
26
FLAP,MUD,RH REAR
5850061
Unavailable
27
TAPE, FOIL
5810310
Unavailable
28
LID,TOOLB0X(SIL/GREY)
5430769-1010
Unavailable
29
STRAP,TOOL COMPARTMENT
5410425
Unavailable
30
CLIP, LID HINGE(10)
7670050
Unavailable
31
DECAL(CPSC),PASS.WRN. [No Longer Available]
7072805
Unavailable
32
BOX,TOOL COMP.
5430882
Unavailable
33
DECAL,LOAD DIST.(4 WHL.)
7074110
Unavailable
34
RIVET(50)
7621462
$1.49
35
RETAINER,TOOL POUCH
7080385
Unavailable
36
DECAL,CARB.INFO.
7073761
Unavailable
37
GROMMET
5410413
Unavailable
38
COVER,SEAT,BON.BLUE
2681723-157
Unavailable
